A Crane Dedicated To Lifting Steel Rails

A crane dedicated to lifting steel rails

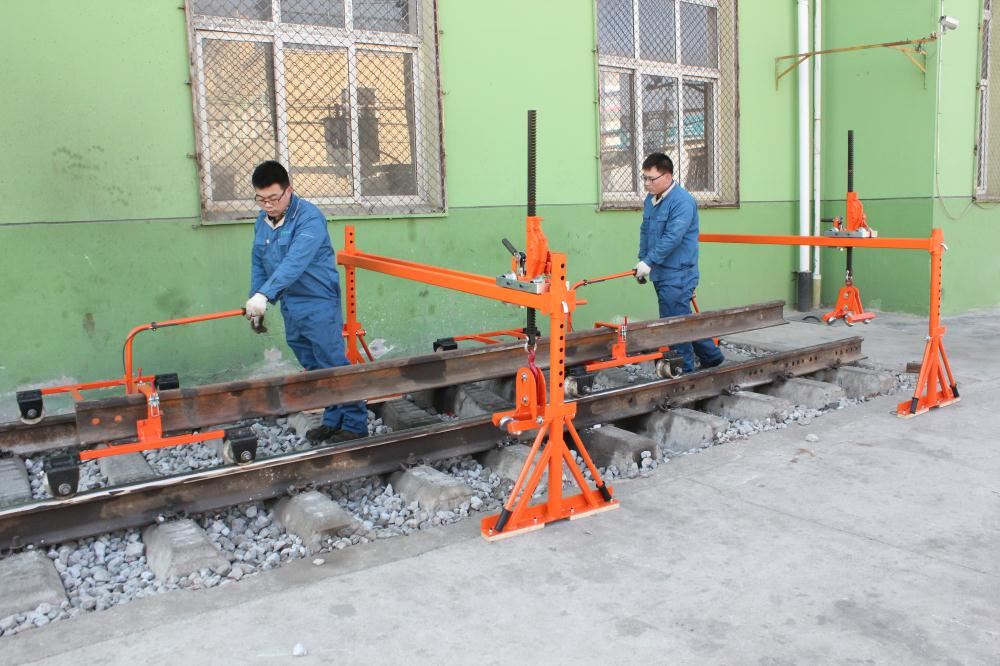

Rail Gantry Crane is used for switching rails by lifting and moving rails on tracks.

This equipment is suitable for the old and new switching operation of rail, switch rail and frog point rail.

There are running wheels in the center of both sides, which can be carried out during transportation.

The equipment can be equipped with section rail transport trolley, The wheels are nylon wheels with good insulation performance and equipped with brake device. It is safe and reliable with light weight and high operation efficiency.

Features  at a glance

＊Can be moved on track

＊Foldable handles to easily move the device

＊Wide application range.

＊Adjustable working height

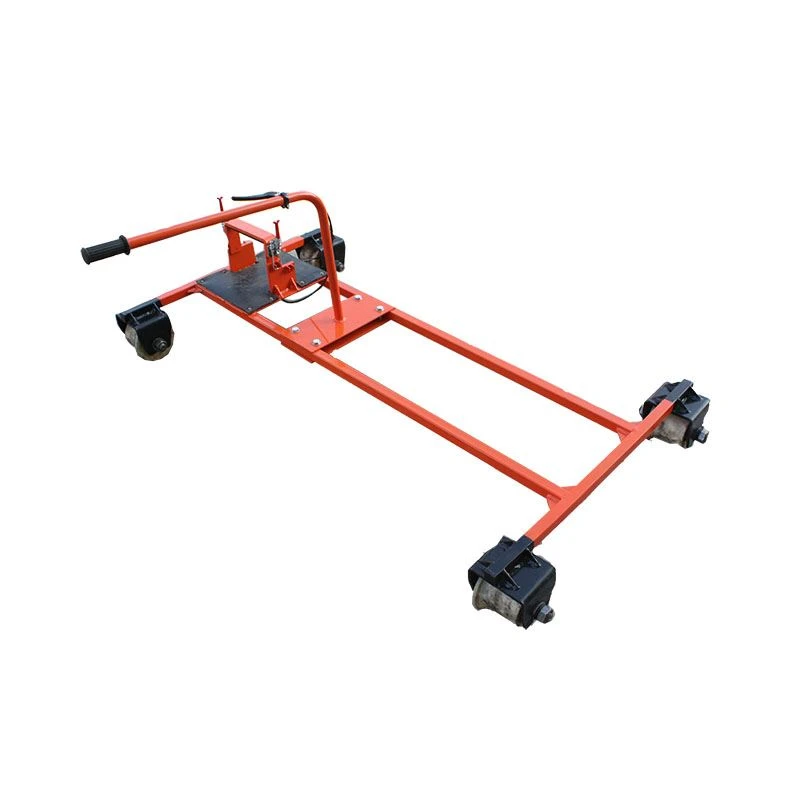

＊Section rail trolley is optional

Specification

＊  Rated load:                   1T/3T (one group)

＊  Load-bearing:                             500kg

＊ Stroke length:                                  1M

 ＊Overall dimension (L×W×H):

                                     2410*700*1540mm

＊Weight (one set):                   97 kg /145kg

＊Single unit weight:                    ≤23 kg

＊ Trolley weight:                            28 kg

More information, pls feel free to contact us. we can also provide Customized service.
