Do you know how to cut the rail fat edge?
May 13, 2022| Do you know how to cut the rail fat edge?
This equipment is a new product integrating cutting, cooling, automatic running, electromechanical and hydraulic. It has the characteristics of remote control, high operation efficiency, convenient access to and from the road, light equipment, simple operation, and reliable safety performance.
The main technical parameters:
1. Gasoline engine model: Briggs & Stratton 25V3
2. Gasoline engine type: air-cooled four-stroke OHV
3. Rated torque of gasoline engine (N.m/r mp): 28.5/3600
4. Operation efficiency: ≥140m/h
5. Output voltage: 12V
6. Maximum system pressure: 20MPa
7. Gasoline fuel consumption: 1.1L/km
8. Single piece weight: outer cylinder 28kgX2; inner cylinder 21kgX2; clamping body 28kgX3; cutter body 57kg; pump station 120kg; short oil pipe 1.3kgX4; long oil pipe 1.6kgX4; cooling part 1.5kg;
9. Mass of the whole machine: 386kg.
10. Overall dimensions of the whole machine (length × width × height): 3100 × 1950 × 800mm

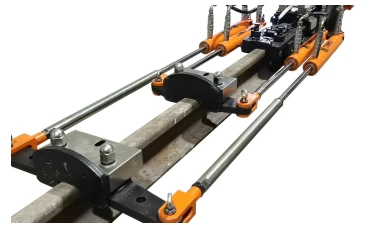

The whole machine adopts a modular split structure, its monomer is light in weight, high in integration, easy to go up and down, and easy to operate.
The control mode adopts manual and wireless remote control and automatic control, the control methods are diversified, the control is simple, and the safety is high.
The hydraulic pump station adopts the single-chip microcomputer control method to precisely control the movement of the oil cylinder and the hydraulic energy and pressure, so as to achieve fast, accurate and intelligent operation.
The clamp body adopts automatic locking and loosening method to realize continuous cutting operation.
The tool adopts the principle of cold cutting profiling segmented cutting, which is composed of side cutter, profiling cutter and shaping cutter. It has good cutting quality, precise size control and smooth surface roughness.
The stretching cylinder adopts the alternate and continuous expansion and contraction method of the inner and outer cylinders, and the cutter body performs uninterrupted cutting operations.
If you want to know more details, please contact me~I will give you more details and operation video.
