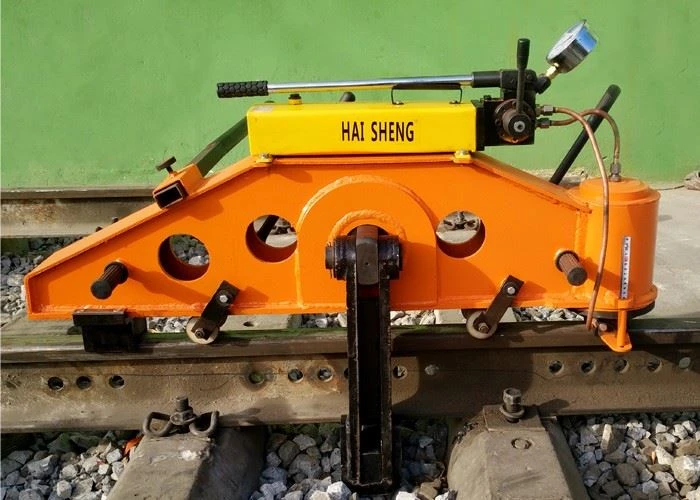

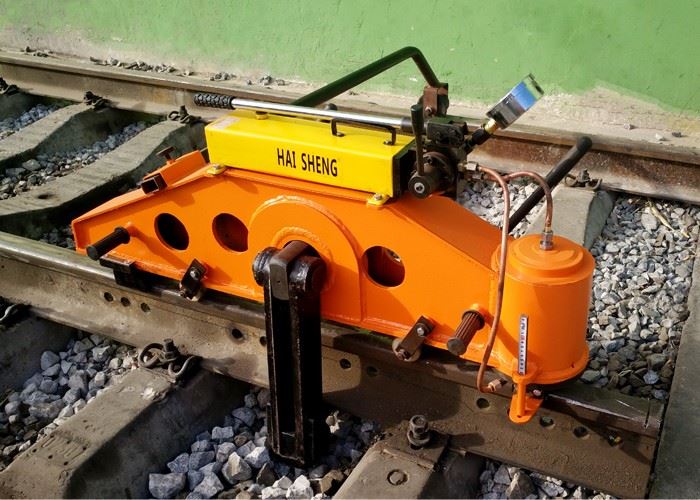

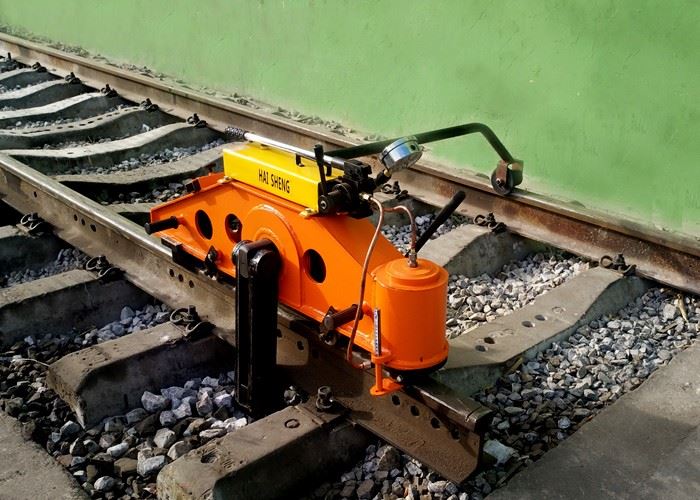

High working efficiency 1100KN Vertical Rail Bender straightening device

YPG-1000 hydraulic vertical rail bender is suitable for vertical alignment of rail joints of various types of railway lines to ensure the straightness of two rail joints. This machine has the characteristics of simple structure, convenient operation, safe use and reliable quality. It is suitable for maintenance, overhaul and rush repair in public works department.

Send Inquiry

Product Introduction

banner2

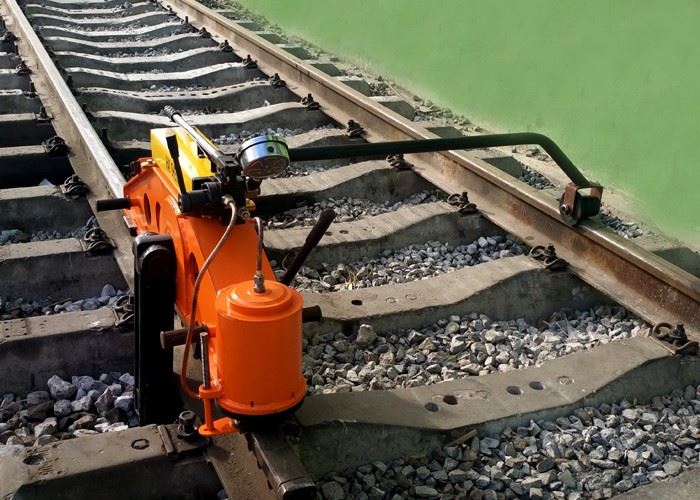

Scope of Application

Technical Parameter

1、Max. Vertical straightening force: 1100kN

2、Rated Vertical straightening force： 1000kN

3、Maximum working pressure： 52MPa

4、No-loading efficiency： 1.5mm

5、Adjust the fulcrum (top) range： ±100mm

6、Maximum operation force： 436kN

7、Weight ： About 190kg

8、Overall dimension:： 1200×300×660

3. Working Principle and Basic Structure

Working Principle:

The reciprocating pendulum handle applies the force on the top surface of the rail to be straightened, straightens the rail through the hook at the other side of the bracket and the middle part, makes the plunger pump work (suction and pressure oil), puts the high-pressure oil into the working oil cylinder, and extends the piston rod. According to the lever balance principle, the purpose of straightening the low rail joint can be realized.

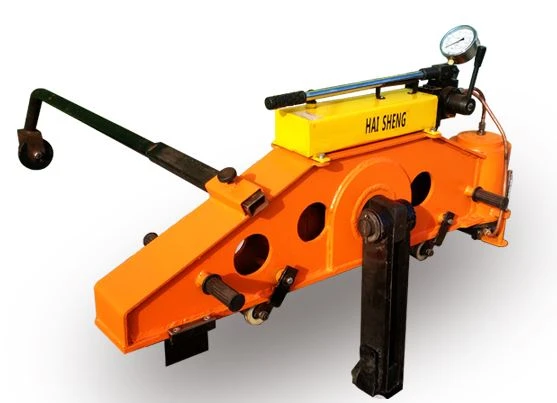

Basic structure:

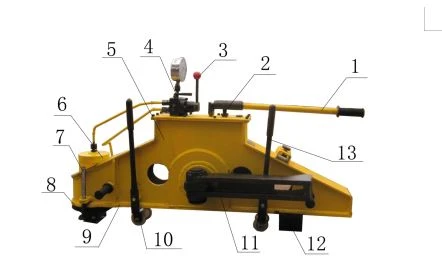

It is mainly composed of 1, handle 2, plunger pump 3, control handle 4 of reversing valve, reversing valve 5, oil tank 6, oil cylinder 7, ruler 8, oil cylinder head 9, tower straight beam 10, running wheel 11, hook 12, adjustable head 13, running wheel handle, etc., as shown in the figure below:
