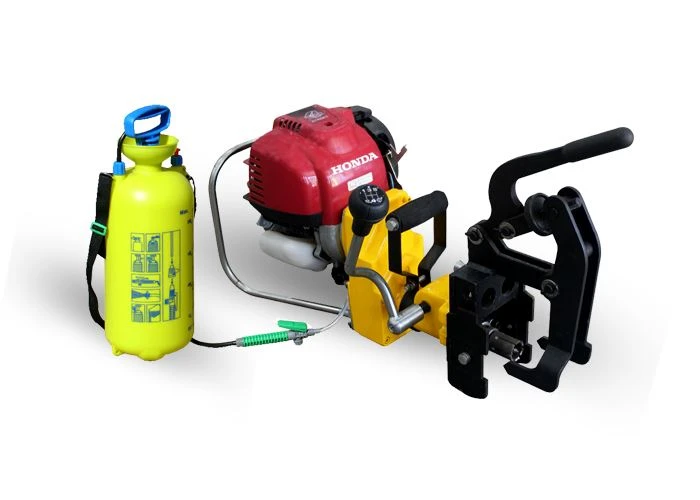

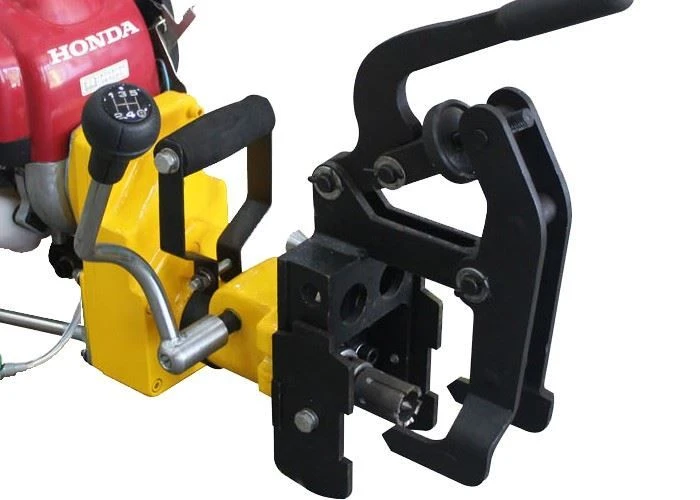

NZG-31 Internal Combustion Rail Drilling Machine

NZG-31 rail drilling machine is compact in structure, and it is the lightest drilling machine in China at present. The rail clamping device has self-locking function, accurate positioning and high drilling accuracy. The n-tailed hollow drill bit can be used to clamp the special twist drill with n-tailed shank under 13.5 according to the needs. It has the function of automatic water supply when drilling. It is a necessary tool for maintenance, rush repair and overhaul operation of Public Works Department.

Send Inquiry

Product Introduction

Application

Advantage:

1. The water supply at the back of the main shaft is adopted to prevent the cooling water from entering the bearing and reducer, so as to improve the service life of the equipment.

2. When drilling, the rotary resistance is reduced and the drilling torque is increased.

3. The drilling time is shortened and the production efficiency is improved.

Specification

1. Engine: 4-stroke/ 1.2KW

2. Application: 43kg/m-75kg/m rail

3. Rated RPM: 275±25r/min

4. Drill diameter: Φ9.8～Φ36（±0.5）mm

5. Drill accuracy: Tolerance≤1mm

6. Drill time: ≤30s

7. Drill bit operation life: 40-50 times

8. Tank capacity: 0.8L

9. Dimension: 650×360×340mm

10. Weight: 17kg

Basic structure and principle

Working principle: The engine supplies power, through the clutch gearing-down, to the main shaft. The main shaft drives the drill rev. to do the drilling operation; at the same time pull the feed handle, through the rack driving the main shaft feeding action, to complete the hole drilling operation.

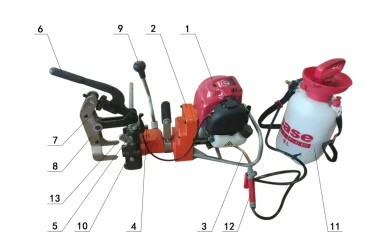

Basic structure:

1 Gasoline engine, 2 Gearbox, 3 water inlet nozzle, 4 Ruler positioner, 5 Positioning ruler, 6 Clamping rocker arm, 7 Adjusting nut, 8 Clamp, 9 Feed lever, 10Positioning block, 11 Water injection bucket, 12 Water valve, 13 Throttle switch
