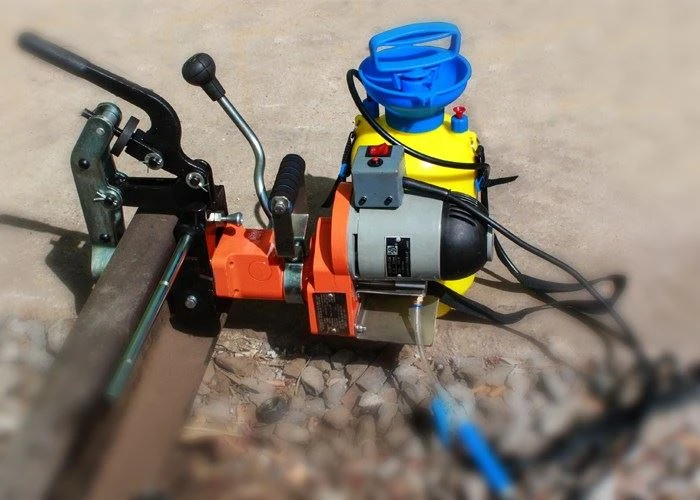

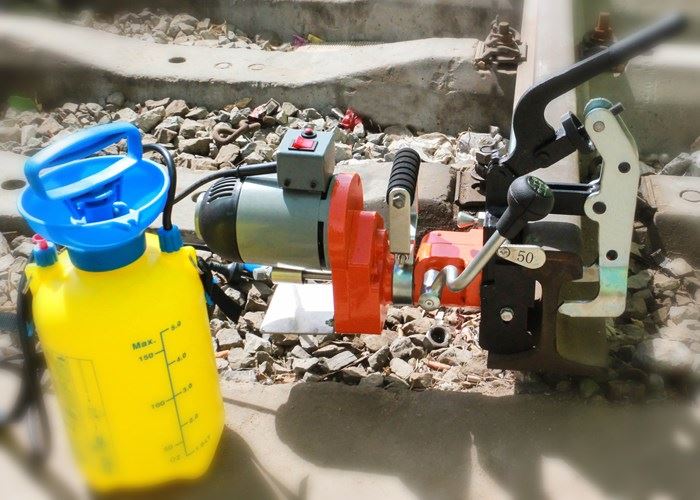

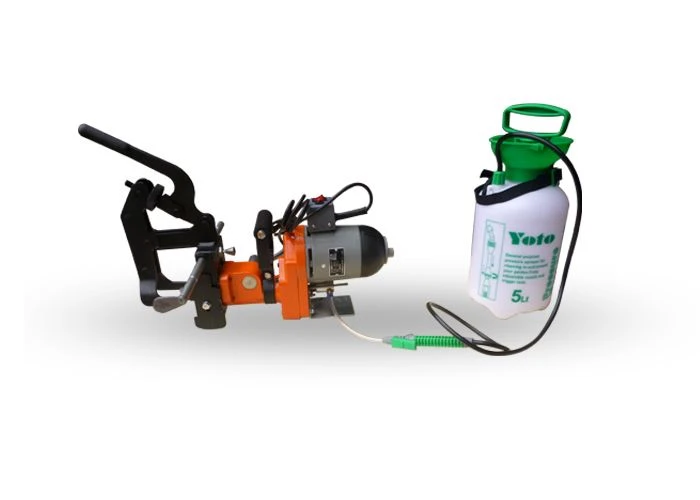

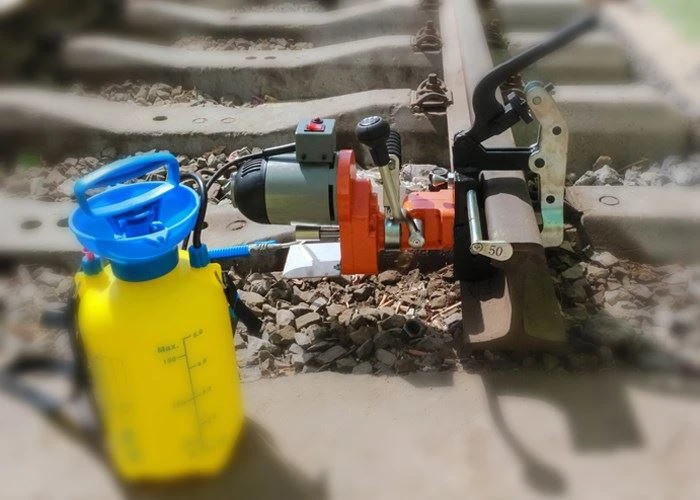

ZG-31 ELECTRIC RAIL DRILLING MACHINE

For drilling fish bolt holes from 9.8mm-36mm diameter in linear railway line and rail web bores in signaling and track construction sectors with 1kw motor. 15.5kg light weight can be easily carried.

A. Application

ZG-31 electric rail drilling machine is suitable for various rail drilling operations below 75kg / m. The overall structure is compact, the rail clamping device has self-locking function, accurate positioning and high drilling accuracy. The n-tailed hollow drill bit or special n-tailed twist drill bit with a diameter of 9.8-13.5 are used. It has the function of automatic water supply when drilling. It is a necessary tool for maintenance, emergency repair and overhaul of Public Works Department.

B. Specification

1.Motor power : 220V

2.Motor power: 1.0KW

3. Spindle speed: ≥400r/min

4. Drill diameter: Φ9.8mm～Φ36mm

5. Drill time : ≤40s

6. Weight: 15.5kg

6. Dimension: 600x260x430mm

C. Contact information

B. Specification

1.Motor power  :               220V

2.Motor power:                 1.0KW

3. Spindle speed:                ≥400r/min

4. Drill diameter:                Φ9.8mm～Φ36mm

5. Drill time :                   ≤40s

6. Weight:                      15.5kg

6. Dimension:                  600x260x430mm
