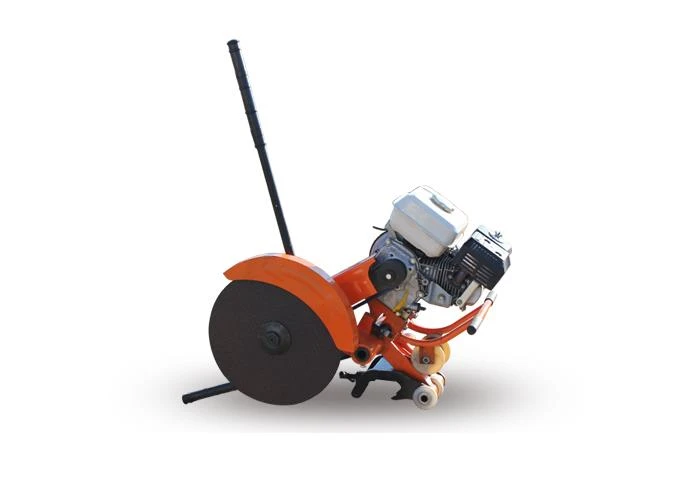

Internal Combustion Rail Cutting Machine

NQG—5III Internal combustion rail cutting machine is suitable for cutting rails of 43kg/m～75kg/m . The quality of cutting section meets the requirement of railway industrial standards. It’s a necessary tool used in railway overhaul, maintenance and rush repairing operation. It has features of fast cutting speed, high utilization rate of thin grinding wheel, high quality of cutting section, easy operation, easy movement, safe use and wide application range etc.

NQG—5III Internal combustion rail cutting machine is suitable for cutting rails of 43kg/m～75kg/m . The quality of cutting section meets the requirement of railway industrial standards. It’s a necessary tool used in railway overhaul, maintenance and rush repairing operation. It has features of fast cutting speed, high utilization rate of thin grinding wheel, high quality of cutting section, easy operation, easy movement, safe use and wide application range etc.

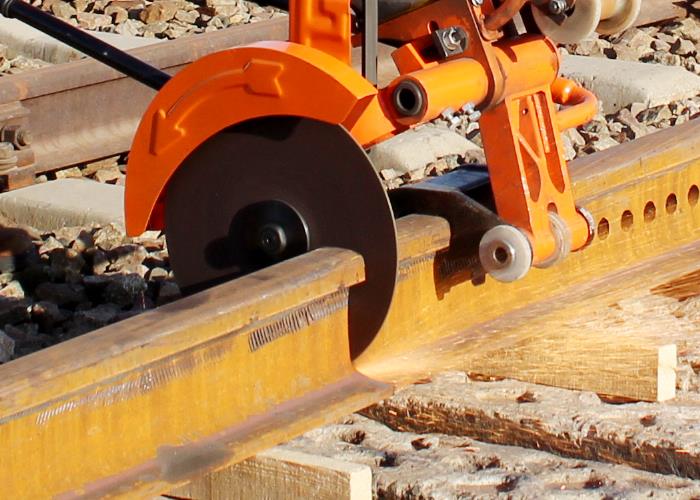

Sparks Wrapped in the Cutting Process

 Main Technical Parameters

1. Internal combustion engine:

    Model:  HONDA GX200

    Power: 4.8kW

    Speed: 3600r / min

2. Thin grinding wheel (spindle):

     Spindle speed 3030r / min

     Specification (linear  velocity) 400 × Φ 32 × 4 (≥70m /s)

3. Cutting time: 60kg / m rail, ≤120S

4. Number of usage: 50kg /m rail,  use ≥ 4 times

                                  60kg /m rail,  use ≥ 3 times

5. Machine weight: 39.5kg

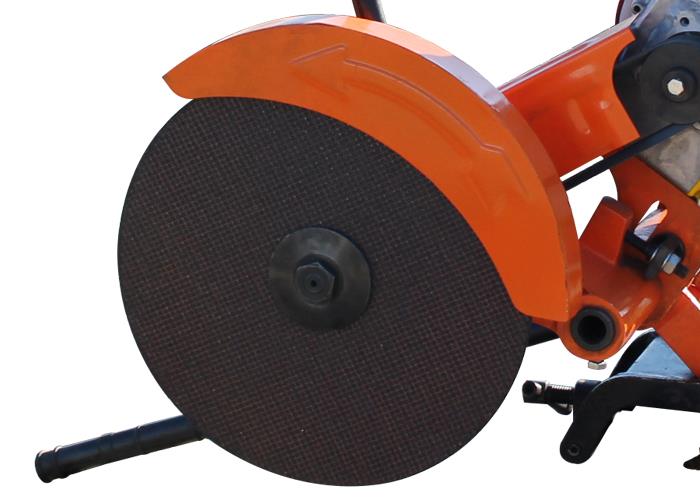

The Double Net Cutting Disk Suitable for Machine
