Railway Switch Digital Grinding Machine Rail Fat Edge Grinder Fine Grinding
NCM-5.1II digital switch grinding machine is used for grinding side fat edges and cambered surface of switch rail, frog, wings rails and other types of rails. Microcomputer is used to accurately control the feed and angle. At the same time, it is equipped with night lighting function, which is convenient to operate, accurate to control, humanized operation, superior performance, reasonable structure and reliable quality. It is a necessary tool for the maintenance line of the public works department.
- Product Introduction
Product Overview

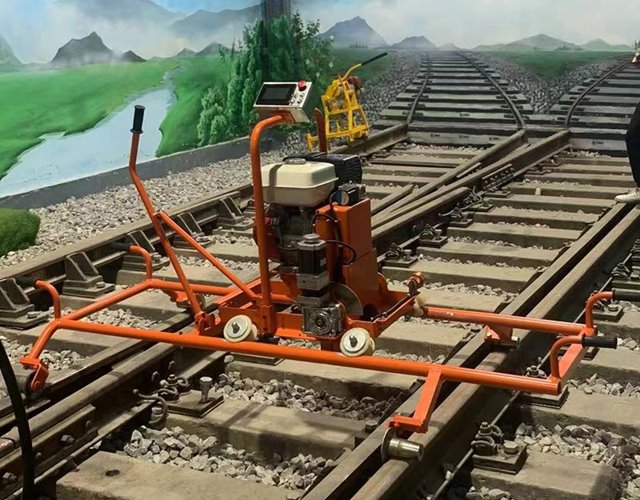

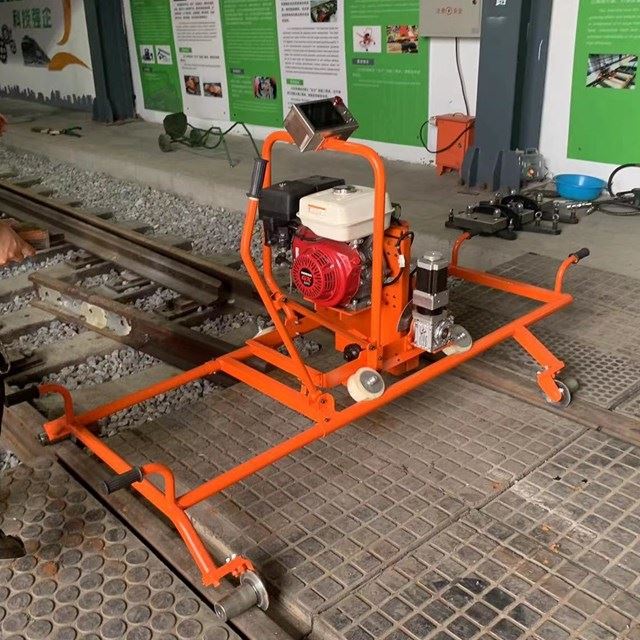

NCM-5.1II digital railway switch fine grinding machine
NCM-5.1II digital switch grinding machine is used for grinding side fat edges and cambered surface of switch rail, frog, wings rails and other types of rails. Microcomputer is used to accurately control the feed and angle. At the same time, it is equipped with night lighting function, which is convenient to operate, accurate to control, humanized operation, superior performance, reasonable structure and reliable quality. It is a necessary tool for the maintenance line of the public works department.
FEATURES AT A GLANCE
COMPACT DIMENSIONS
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Gasoline engine | HONDA GX270 |
2 | Power | 5.1KW/≥3500r/min |
3 | Grinding stone | Φ254*35*Φ30mm |
4 | Linear speed | 50m/s |
5 | Efficiency stroke | ≥45mm |
6 | Feeding accuracy | 0.1mm |
7 | Max. bidirectional angle of grinding stone | ≥30° |
8 | Weight | 95kg |
9 | Dimension | 2320*1170*1150mm |
FAQ
Q1:Who I am ?
A1:This is Sabrina Niu ,sale manager of the factory.
Q2:What is the Warranty about your product?
A2: 1 year for warranty .Consumable parts are available.
Q3:How is your quality?
A3: To guarantee top quality,best material are used.Besides, The engine is imported from abroad. You are highly welcome to visit our factory.
Q4:What we do?
A4:JINZHOU TIEGONG RAILWAY MAINTENANCE MACHINERY CO.,LTD is a professional factory producing small type railway maintenance machine. Such as Cutting machine ,Grinding machine, Tamping machine etc.
Q5: Why choose us?
A5:Top quality , competitive price ,plenty stock And Excellent Service.Our factory has more than 400 type products,24 years producing experience. Most of the pictures on Other suppliers’ website were stolen from our website.
Q6:How can I trust you?
A6: We have been Gold supplier from Alibaba for 8years,15years of overseas trading experience .Our reputation among customers and their satisfaction are the main reasons for our success.
Q7:What service you can provide?
A7: Installation video And user manual offered. For big quantity order , we can dispatch our engineer foroversea door-to-door service
Q8:What is the delivery condition and the payment?
A8: various methods of payment are acceptable.T/T is the commonly used way. Shipment will be arranged within 15days .We will inform you if short stock.
Q9:Your company is manufacturer or dealer?
A9: We are professional of railway maintenance equipment manufacturer. We have more than 400 types products,such as Rail Grinder, Rail Cutter, Rail Tamper, Rail Tenser, Rail Adjustor and so on.
