Railway Drilling Machine
zg-31 eletric battery rail drilling machine suitable for drilling rail below 75kg/m.with compact structure,auto-lock clamp device,it realize postioning accuracy and high drilling efficiency.
- Product Introduction
railway drilling machine
ZG-31 eletric battery rail drilling machine suitable for drilling rail below 75kg/m.with compact structure,auto-lock clamp device,it realize postioning accuracy and high drilling efficiency.it has the function of auto water supply and use hollow drill bits.it adopts to all working situation.
1. Parameter
|
Type |
Parameter |
|
ZG-31III |
1. Electric Motor Power: 1.0kW 2. Rated voltage: 220V 3. No-load speed: ≥ 400r / min 4. Bore diameter: Φ9.8 ~ 36mm 5. Drilling time: ≤ 40s 6. Machine weight: 15.5kg 7. Overall size: 600 × 260 × 430mm |
|

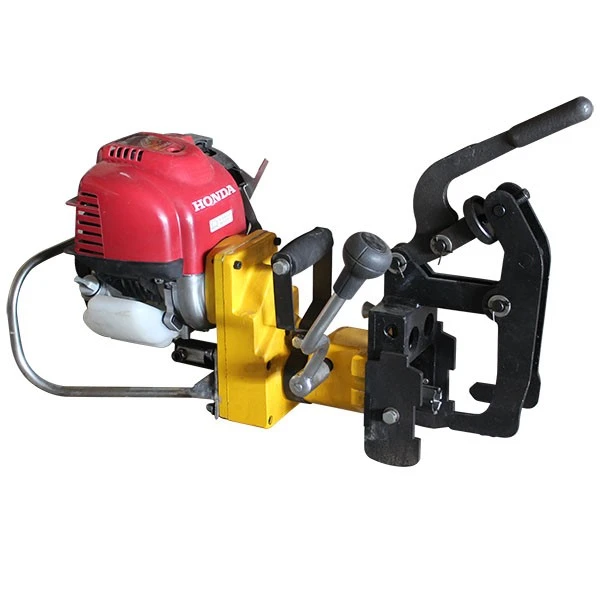

NZG-31
|
1. Petrol engine: 4-stroke Honda GX35,Rated power: 1.0kW 2. Scope of application: suitable for 43kg/m-75kg/m rails 3. Rated RPM: 275±25 r/min 4. Borehole diameter: ∮9.8～∮36 (±0.5) mm 5. Drilling accuracy: position tolerance of drilling hole≤1 mm 6. Drilling time: ≤30s 7. Drill bit service life: 40-50 holes can be drilled at a time 8. Oil tank capacity: 0.8L 9. Dimension: 650×360×340 mm 10. Machine weight: 17kg 11. One pc of drill bit will be sent with the machine free of charge |
2 Drilling operation

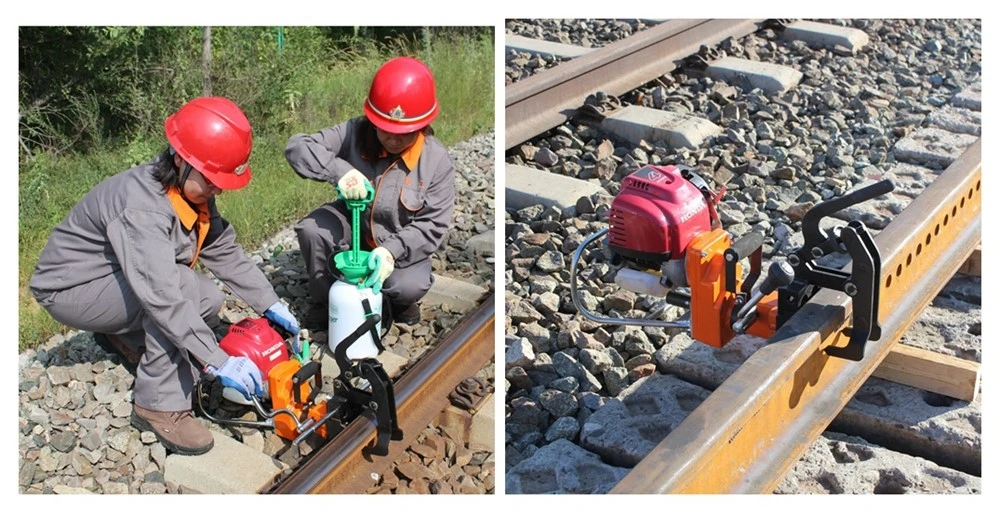

(1) Put the drilling machine drilling locating ruler to the top surface of the rail to fix, and then fix the drilling machine to the rail according to the position of the locating ruler;
2)Check whether the rail clamping departments are accurate and reliable;
3)Start the engine, and then make the engine run at the rated speed;

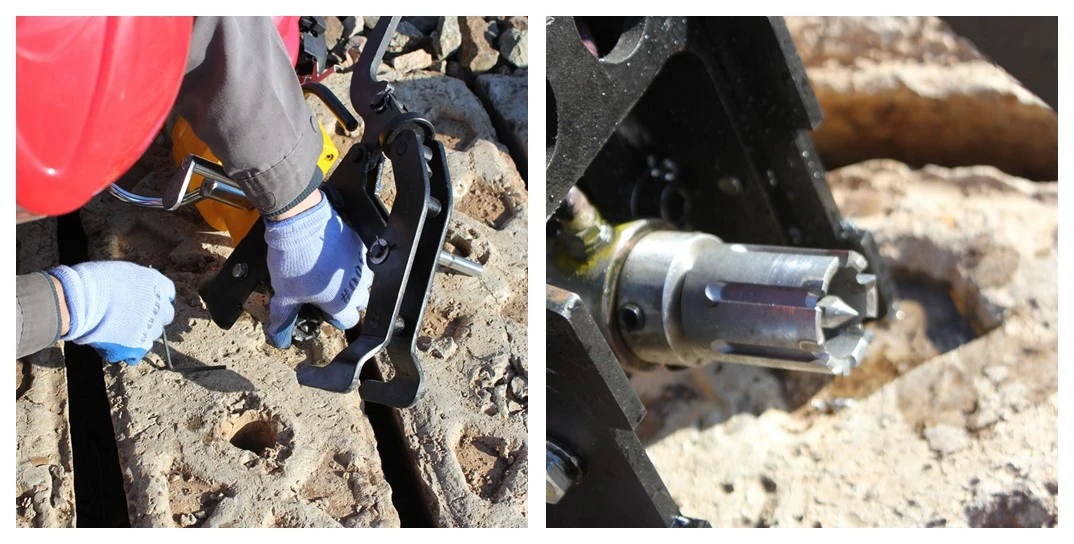

(4) Uniformly trigger the drill feed handle, so that the drill bit drills the rail until it drills through the rail wall;
5)After drilling is completed, trigger the drill feed handle in the opposite direction to return the hollow drill bit to the original position, release the rail clamping mechanism, remove the drilling machine, and then re-clamp it into another position of the locating ruler, and then carry out the next drilling operation.
International cooperation
CE certificate
Packing list
|
Product |
Rail drilling machine |
Model |
NZG-31 |
|
|
Release date |
|
Inspector |
||
|
No. |
Description of accessories |
QTY. |
||
|
1 |
Manual |
1 |
||
|
2 |
Certification of quality |
1 |
||
|
3 |
Gasoline engine manual |
1 |
||
|
4 |
Machine |
1 |
||
|
5 |
Water input tank(5L) |
1 |
||
|
6 |
φ 6 × φ 8 hard transparent rubber pipe (installed on water injection bucket) |
1 |
||
|
7 |
31mm drill bit |
1 |
||
|
8 |
Positioning block |
2 |
||
|
9 |
Positioning ruler 50 |
1 |
||
|
10 |
Positioning ruler 60 |
1 |
||
|
11 |
Hex key wrench 4 |
1 |
||
|
12 |
Spanner 13-15 |
1 |
||
|
13 |
Grade 12.9 hex socket flat end set screw M8 × 10 |
2 |
||
|
Remark |
||||
