Ballast Tamper Machine (Rail Tamper Machine)
YD-22 Ballast Tamper Machine (Rail Tamper Machine) also know as rail tamping machine/rail tamper/railroad ballast tamper/railway ballast tamping machine/railway track tamping machine/tamping unit/tamper unit/tamping machine/ballast tamping/duomatic tamping machine is for Rail Tamping.
- Product Introduction
- Model NO.: YD-22
-
Engine: Diesel Engine SF190
Power: 7kW
R.P.M: 2300 r / min
- Max.Insert Force: 16kn
- Inserting Depth: 110mm±10mm
- Weight: 439kg
- Condition: New
- Origin: Liaoning, China
- Hydraulic System Pressure: 5-6MPa
- Vibrating Force: 22kn
- Clamping Force: 6.5knx2
- Efficiency: 270PCS/(Set@Hour)
-
Dimension: 1300X750X1600mm
-
Selection of off-track frame:
-
a. The standard is one side off-track frame, it means two sets of tamping machines will do off-track works at left or right side together.
-
b. Two sides off-track mode means when doing off-track works, one tamping machine is at left side, and the other machine is at right side, it is suitable for single line with narrow shoulder area.
- Trademark: Jinzhou Tiegong
- Specification: ISO9001, CE
- HS Code: 84294090
Product Description
Introduction Of Hydraulic Ballast Tamping Machine Yd-22 for Railway
YD-22 hydraulic ballast tamping machine is a special purpose machinery used in themaintenance of the railway works. It is mainly used for the ballast tamping of
the rail sleeper. It is can be used to work in the interval time of the trains and
no need for interval close, It has three kinds of engine, gasoline, diesel, motor.
Parameter Of Hydraulic Ballast Tamping Machine Yd-22 for Railway
| Model | YD-22 Hydraulic Ballast Tamping Machine |
| Diesel Engine SF190 | 7KW |
| 2300r/min | |
| Hydraulic System Pressure | 5-6MPa |
| Vibrating Frequency | 60-67HZ |
| Vibrating Force | 22KN |
| Max.Insert Force | 16KN |
| Clamping Force | 6.5KNx2 |
| Inserting Depth | 110mm±10mm |
| Efficiency | ≥270pcs/(set·hour) |
| Weight | 439KG |
| Dimension | 1300x750x1600mm |
| Brand | Jinzhou Tiegong |
| Packing Details | Plywood box or Pack as Your Requirements |
| Delivery Time | 20 days after your payment |
| Payment Terms | T/T in advance |
| Supply Ability | 1000 sets per month |
| Minimum Order Quantity | 1 set |
| Price Terms | FOB |
| Port | Any China Main Port, Usually Dalian Port |

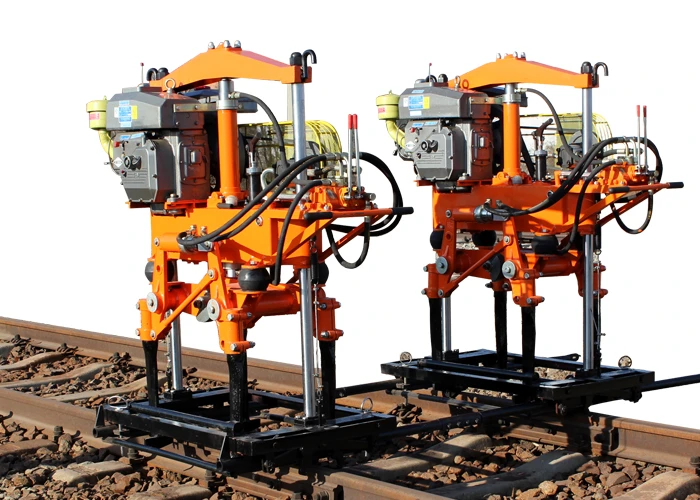

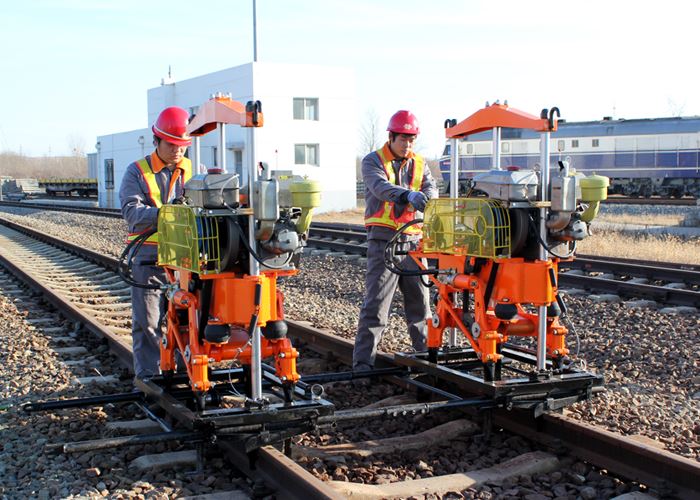

Photos Of Hydraulic Ballast Tamping Machine YD-22 for Railway
Our Advantages:
| Types of Rail Tamper | Model |
| Electric Rail Tamper | D-3 |
| Electric Rail Tamper Unit | D-3×4 |
| Impact Rail Tamper | BH23 |
| Impact Rail Tamper | SND-23 |
| Rail Tamper | ND-5 Import GZ40N Petrol Engine |
| Rail Tamper | ND-5 Import GX50 Petrol Engine |
| Rail Tamper | ND-5 Engine made in china |
| Flexible Shaft Rail Tamping Machine | ND-4.2×4 Single Engine |
| Flexible Shaft Rail Tamping Machine | ND-4.2×4 Double Engine |
| Flexible Shaft Rail Tamping Machine | ND-4.2×2 |
| Hydraulic Switch Rail Tamping Machine | YCD-32 With stepper motor |
| Hydraulic Switch Rail Tamping Machine | YCD-32II Without stepper motor |
| Hydraulic Rail Tamping Machine | YD-22 Diesel Engine |
| Hydraulic Rail Tamping Machine | YD-22II Gasoline Engine |
| Smart Rail Tamping Machine Unit | YD-22III |
| Rail Tamper | ND-6 Import Gasoline Engine |
| Rail Tamper | ND-6 China Gasoline Engine |
| Electric Rail Tamper | DG-550 |
| Electric Rail Tamper Unit | DG-550×4 |
