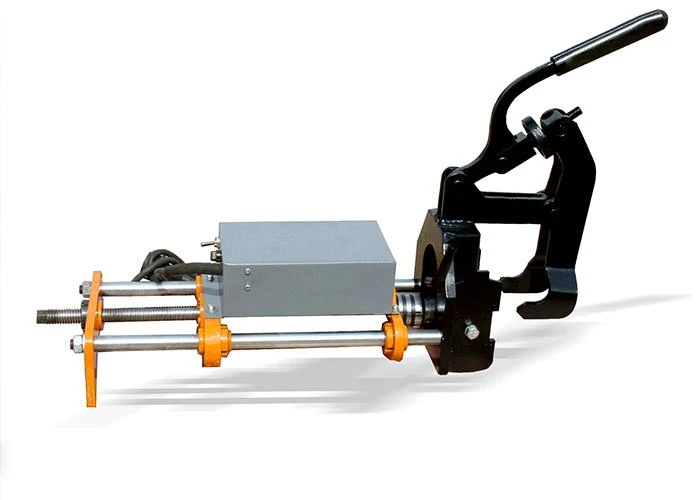

ZG-13 Electric Rail Drilling Machine
ZG-13 electric rail drilling machine is applicable for drilling 75kg/m，60kg/m，50kg/m，43kg/m type rail. Its rail clamping device has self-locking function. It possesses features of correct borehole positioning and high drilling precision. It adopts hollow drill bit, while drilling process, the coolant can be supplied automatically. It’s an indispensable tool employed in railway maintenance, repairing and overhaul operation.
- Product Introduction

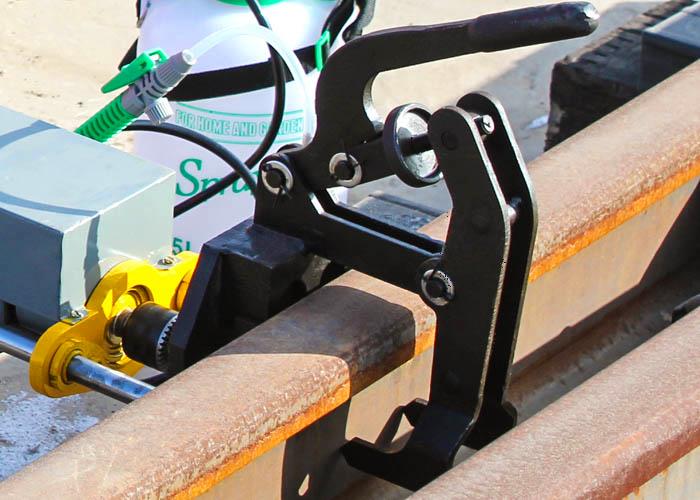

ZG-13 electric rail drilling machine is applicable for drilling 75kg/m，60kg/m，50kg/m，43kg/m type rail. Its rail clamping device has self-locking function. It possesses features of correct borehole positioning and high drilling precision. It adopts hollow drill bit, while drilling process, the coolant can be supplied automatically. It’s an indispensable tool employed in railway maintenance, repairing and overhaul operation.
Motor voltage: | 220V |
Frequency: | 50Hz |
Power: | 0.65kw |
The diameter of the maximum drill hole: | Φ13 |
spindle speed: | 550r/min |
the quality of the whole machine: | 16KG |
Drill stroke ： | 100mm |
Shape size: | 650x200x280 |
