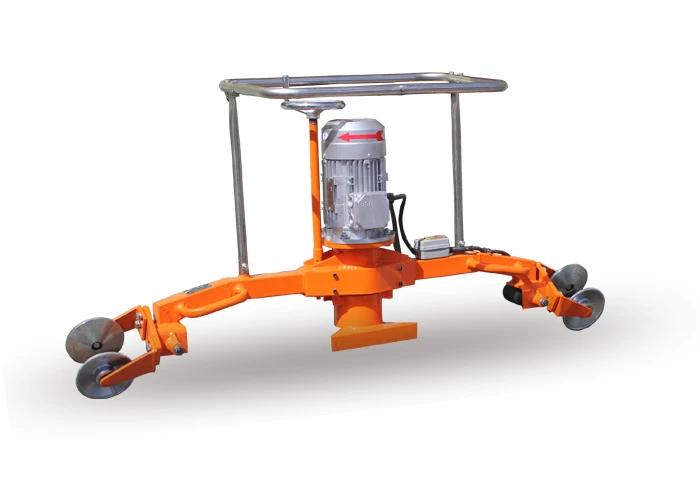

Eelctric Profile Rail Grinding Machine Motor Rail Grinder

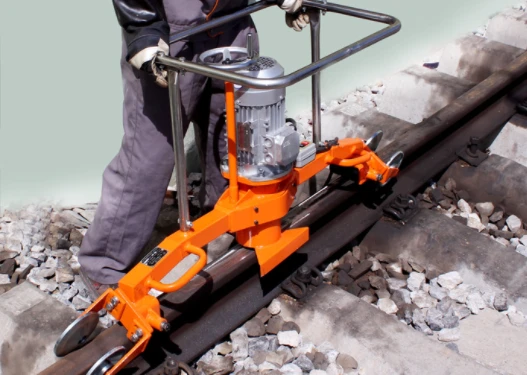

GM-2.2 electric rail grinding machine is applicable to 43kg/m-75kg/m rail. It can grind the uneven surface, fat side, rail welding joint and so on. With high working efficiency, good quality of grinding, easy operation, convenient to put it up and down, so that it is the essential tool for railway maintenance department.
- Product Introduction
Technical Parameters:
1. Motor
type： Y90L-2
voltage： 380Vthree phase
revolution： 2840r/min
power： 2.2kW
2.Grinding disc
Cup-shape grinding disc： ∮150*70*55
3. Spindle speed：2840r/min
4. Wheel distance：1000mm
5. Wheel stroke: 50mm
6. Weight： 54kg
7. Dimension： 1500mm×630mm×760mm
Working principle: GM-2.2 type electric rail grinding machine, it's powered by electric motor(rotary motion), through the synchronous belt wheel passed to the grinding wheel makes its produce rotary motion. At the same time, through turning the hand wheel to adjust grinding disc feeding, so that it can achieve the aim of grinding the rail.
