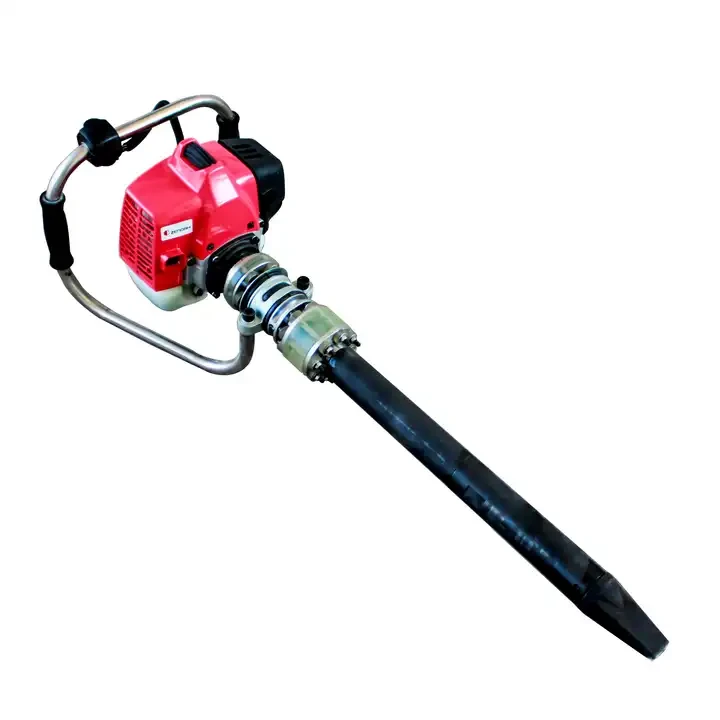

Rail Tamper
ND-5 type railway tamping pick, commonly known as internal combustion portable tamping pick, is used for tamping the ballast under the sleeper during railway construction or railway maintenance.
- Product Introduction
rail tamper
ND-4.1 type railway tamping machine, commonly known as internal combustion portable tamping pick, is used for tamping the ballast under the sleeper during railway construction or railway maintenance.
The internal combustion tamping pick is a hand-held, portable tool specifically designed for tamping operations on railway roadbed stone chippings. Powered by a gasoline engine, it uses a centrifugal clutch, eccentric shaft, and rubber shock absorber to drive the pick body, generating high-frequency vibrations. These vibrations rearrange and compact the stone chippings beneath the sleepers, achieving a denser and more stable roadbed.
This tool is particularly suited for areas where large and medium-sized road maintenance machinery cannot operate, such as turnouts, tunnels, bridges, and culverts. The internal combustion tamping pick features a reasonable structure, compact size, lightweight design, and excellent portability. It is easy to operate, time- and labor-saving, and convenient to repair and maintain.
|
Type |
Parameter |
|
ND-5 |
1. Petrol Engine Model: ZENOAH GZ40N two-stroke petrol engine 2. Rated power: 1.42kW 3. Rated speed: 8500r / min 4. Operation mode: two-stroke all-round 5. Vibrating force: 5000N 6. Max free amplitude: 5mm 7. Vibrating frequency: 117Hz 8. Max impact force: 500N 9. Machine weight: 13.5kg 10. Dimension: 1050 × 350 × 350mm |
Basic Operation of the Internal Combustion Tamping machine:
Pre-operation Check: Before starting, inspect all accessories to ensure they are firmly secured and not loose.
Fuel Mixing: Prepare the fuel by proportioning gasoline and oil according to the manual using the mixing pot. Engine Warm-up: Start the engine and allow it to warm up until it reaches operational speed.
Operation: Once the engine reaches the proper speed, hold the handles firmly with both hands and press down. Engage the tamping head with the vibrating mechanism to apply downward force, compacting the roadbed.
Post-operation Check: After completing the work, turn off the engine and inspect all connections for looseness. Tighten them promptly if needed.
International cooperation:
CE certificate:
|
PACKING LIST |
||||
|
Product Name |
Internal Combustion Rail Tamper |
Model |
ND-5 |
|
|
Release Date |
|
Inspector |
|
|
|
NO. |
NAME |
Q'TY |
||
|
1 |
MANUAL |
1 Copy |
||
|
2 |
CERTIFICATE |
1 Copy |
||
|
3 |
MACHINE |
1 Set |
||
|
4 |
The internal combustion engine specifications and accessories |
1 SET |
||
|
5 |
Solid wrench 8-10 |
1 Pc |
||
|
6 |
Solid wrench 12-14 |
1 Pc |
||
|
7 |
socket head wrench 5 |
1 Pc |
||
|
8 |
socket head wrench 6 |
1 Pc |
||
|
9 |
Needle tube 20ml |
1 Pc |
||
|
10 |
Proportioning pot |
1 piece |
||
|
Remarks： |
||||
