Rail Bolt Wrench
NLB-500 portable rail bolt wrench has advantage of lightweight,high flexibilitgy,easy to use,and godd balance.
- Product Introduction
rail bolt wrench

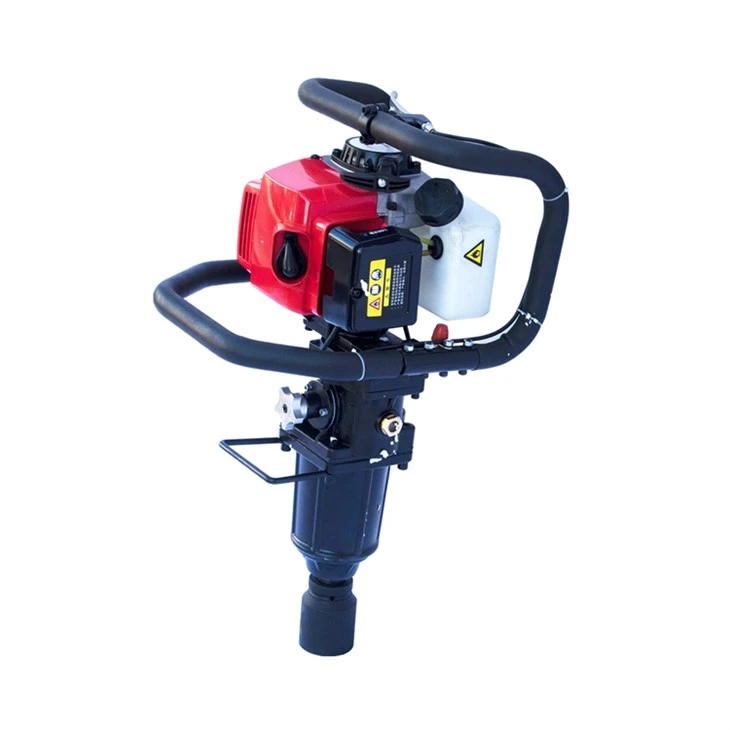

NLB-500 portable rail bolt wrench has advantage of lightweight,high flexibilitgy,easy to use,and godd balance.It is suitable for all kinds of railway repair operations.This product can lighten and loosen the rail bolts both vertically and horizontally.
It is one of the lightest impact wrenches, well-balanced, can stand vertically, the operating switch is located within the operator's reach, more convenient operation, can also be put down horizontally on the fishtail plate bolts for operation work. It is most suitable for the loosening and tightening of the bolts of the rail sleeper and fishtail bolts, as well as the loosening and tightening of bolts in other aspects.

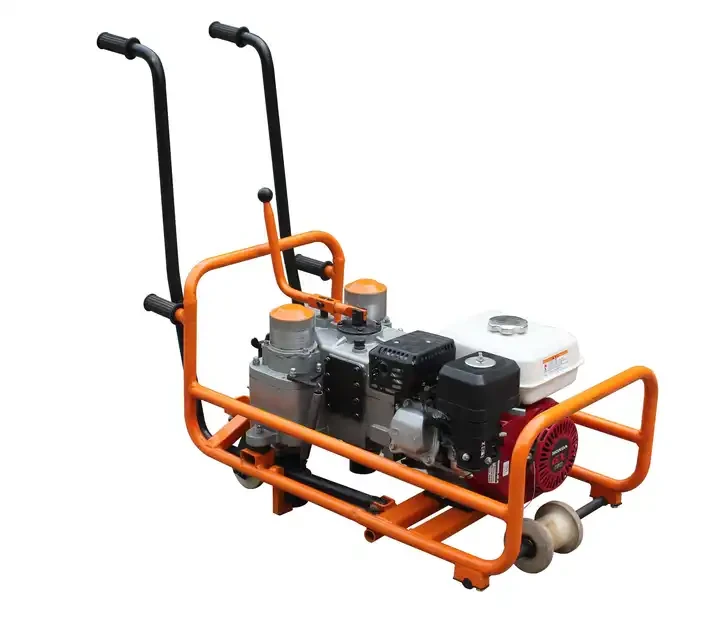

NLB-600 rail bolt wrench changes the impact torque ,high precision and no jamming,which is suitable for tightening and loosening the rail bolts.It's easy to operate and can walk along the track,which reduces the labor intensity of operators greatly.
|

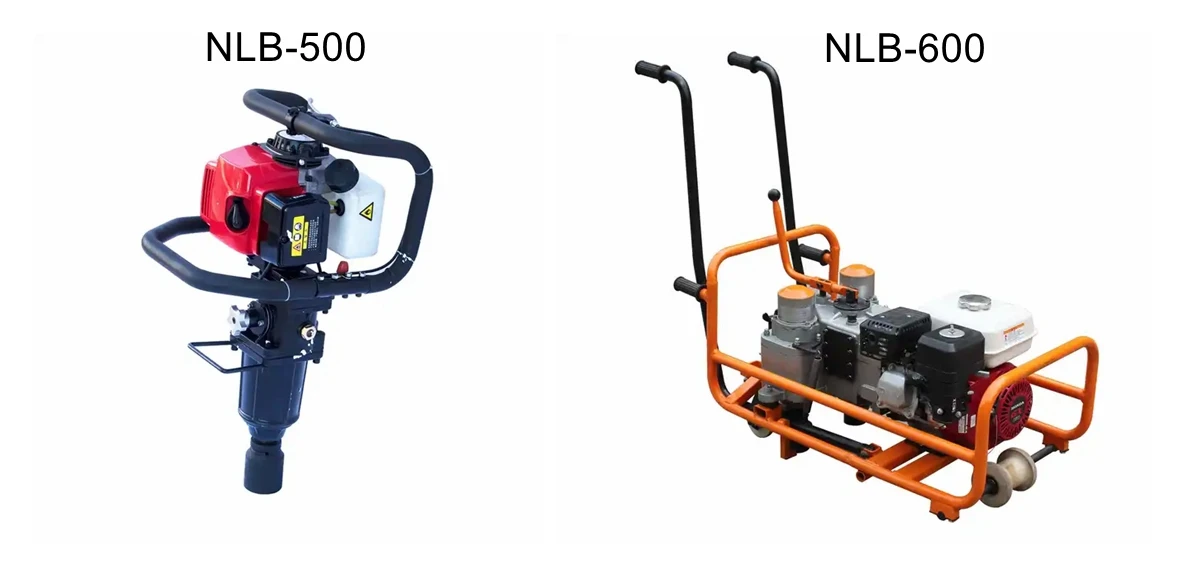

Type |
Parameter |
|
NLB-500 |
1. Engine: Four – stroke petrol engine Honda GX50 2. Rated rpm: 7000r / min 3. Rated power: 1.47kw 4. Spindle speed: 800r / min 5. Torque: ≥ 500N.m 6. Machine weight:18kg 7. Overall size: 830 × 280 × 380mm 8. Socket size: M24 (we also can design according to the requirement of the customer) |
|
NLB-600 |
1. Petrol engine model: Honda GX160H1 2. Petrol engine rated power: 4kw 3. Petrol engine speed: 1800r / min 4. Spindle speed: 122r / min 5. Sleeve: 2 pieces 6. Sleeve center distance: 214/234 ± 0.5mm 7. Adjustable tightening torque : 80-200 N • m 8. Max releasing torque: ≥ 600N • m 9. Ex-factory tightening torque: 180 N • m 10. Working efficiency: ≥ 10 pairs/min 11. Machine weight: 90kg 12. Overall size: 900 × 500 × 1025mm |
International cooperation
CE certificate:
|
PACKING LIST |
||||
|
Product Name |
Portable Internal Combustion Rail Bolt Wrench |
Model |
NLB-500 |
|
|
Ex-factory Date |
|
Inspector |
|
|
|
No. |
Accessories |
Q'TY |
||
|
1 |
Manual |
1 copy |
||
|
2 |
Certificate |
1 copy |
||
|
3 |
Main frame |
1 set |
||
|
4 |
Allen spanner 4, 5, 6 |
1 pc for each one |
||
|
5 |
Spark plug spanner |
1pc |
||
|
6 |
Solid spanner 8-10 |
1pc |
||
|
7 |
slotted screwdriver |
1 pc |
||
|
8 |
Proportioning pot |
1pc |
||
|
9 |
Bolt socket 36 mm (fixing on the machine) |
1pc |
||
