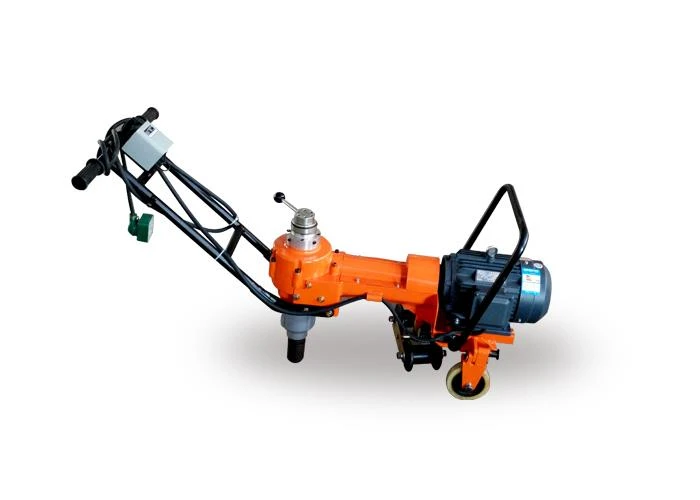

Electric Rail Bolt Wrench

It’s suitable for loosening & fastening the tie bolt & nut of railway track. With features of powerful impact force and integrated operating system, it can supply the demand of the locking torque to fasten the rail fastenings conveniently and quickly. It adopts a traveling unit with 4 rotary wheels at the base. Therefore, it’s suitable for traveling on land as well as on rail with good mobility. It’s an ideal special tool to loosen & fasten the tie bolt & nut replacing the heavy manual labor.

Send Inquiry

Product Introduction

LB—300 Electric Rail Bolt Wrench is suitable for loosening & fastening the tie bolt & nut of railway track. With features of powerful impact force and integrated operating system, it can supply the demand of the locking torque to fasten the rail fastenings conveniently and quickly. It adopts a traveling unit with 4 rotary wheels at the base. Therefore, it’s suitable for traveling on land as well as on rail with good mobility. It’s an ideal special tool to loosen & fasten the tie bolt & nut replacing the heavy manual labor.

Technical Parameters

The spindle speed:	560r / min
The maximum rotation torque:	≥ 300 N • m
The maximum tightening torque	≥ 150 N • m
the work efficiency:	≤ 10pcs / min
Electric power	3Kw
Weight	72kg
Scope of application	loose and tight M24/M36 nut

Working Principle

Driven by a motor, the output torque is transmitted to the conical gear mechanism through a unidirectional clutch (universal coupling transmission shaft), and then through the loader (variable force loading and impact) until the sleeve is rotated, the nut can be loosely and tightly rotated (work).

Packaging

Production Flow

Certificate

Assessed Supplier

ISO9001


CRCC Cerfifite

Cooperation

Pakistan

Brazil

Poland

Thailand

Product Description LB—300 Electric Rail Bolt Wrench is suitable for loosening & fastening the tie bolt & nut of railway track. With features of powerful impact force and integrated operating system, it can supply the demand of the locking torque to fasten the rail fastenings conveniently and quickly. It adopts a traveling unit with 4 rotary wheels at the base. Therefore, it’s suitable for traveling on land as well as on rail with good mobility. It’s an ideal special tool to loosen & fasten the tie bolt & nut replacing the heavy manual labor.

Technical Parameters

The spindle speed:	560r / min
The maximum rotation torque:	≥ 300 N • m
The maximum tightening torque	≥ 150 N • m
the work efficiency:	≤ 10pcs / min
Electric power	3Kw
Weight	72kg
Scope of application	loose and tight M24/M36 nut
