DG Rail Carrier
DG rail carrier has the features of simple structure, light weight, easy to use, flexible and reliable delivery rail, easy assembly and reliable, easy to transport and so on. It is an ideal special tool for rail transportation in Railway Construction Sector.
- Product Introduction

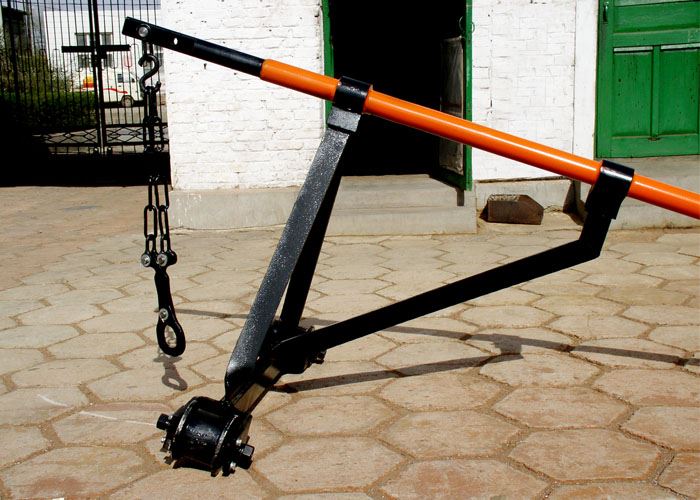

DG Rail Carrier
Characteristics:
DG type crane rail car, has simple structure, light weight, easy to use, transport rail flexible and reliable, and other features, is railway works departments construction work transport rail ideal special tool.
The technical parameters:
1, Rated load: 1 t
2, outer profile size, LWH: 3080 x 1005x 820mm
3, the machine quality: 70 kg
Working Principle: according to the principle of lever balance, the rail palate is clamped (clamped) by the hinge rail hook, and then the rail is lifted by pressing the operating rod with the wheel tread and rail top as the supporting points. Then, press and hold the operating rod, push the operating rod, and transport the rail to the required place.
Basic Structure: It is composed of rail hook, running wheel, rail carrier frame (lever assembly, support, pillar).
1. Lever assembly 2. Upper gland 3. Support 4.Pillar 5. Rail hook 6. Running wheel
Installation Method: 1. Place Part 1 in the figure on Part 3 (align the part sprayed with black paint in Figure 1), place figure 4 under Figure 1, align the bottom with the center of Figure 3, fix it with M14 bolt, and finally assemble Figure 2 and figure 3 and Figure 4 with 12mm Allen wrench and 22-24 solid wrench.
Q1:Who I am ?
A1:This is Alina Shen ,sale manager of the factory.
Q2:What is the Warranty about your product?
A2: 1 year for warranty .Consumable parts are available.
Q3:How is your quality?
A3: To guarantee top quality,best material are used.Besides, The engine is imported from abroad. You are highly welcome to visit our factory.
Q4:What we do?
A4:JINZHOU TIEGONG RAILWAY MAINTENANCE MACHINERY CO.,LTD is a professional factory producing small type railway maintenance machine. Such as Cutting machine ,Grinding machine, Tamping machine etc.
Q5: Why choose us?
A5:Top quality , competitive price ,plenty stock And Excellent Service.Our factory has more than 400 type products,24 years producing experience. Most of the pictures on Other suppliers’ website were stolen from our website.
Q6:How can I trust you?
A6: We have been Gold supplier from Alibaba for 8years,15years of overseas trading experience .Our reputation among customers and their satisfaction are the main reasons for our success.
Q7:What service you can provide?
A7: Installation video And user manual offered. For big quantity order , we can dispatch our engineer foroversea door-to-door service
Q8:What is the delivery condition and the payment?
A8: various methods of payment are acceptable.T/T is the commonly used way. Shipment will be arranged within 15days .We will inform you if short stock.
Q9:Your company is manufacturer or dealer?
A9: We are professional of railway maintenance equipment manufacturer. We have more than 400 types products,such as Rail Grinder, Rail Cutter, Rail Tamper, Rail Tenser, Rail Adjustor and so on.
1. Lifting capacity： 1T
2. Dimension L×W×H：3080×1005×820mm
3. Machine weight：70kg (after assembly)
