GC-200 track motor car

GC-220 track motor car is a two axle rail track car with two-way travel function, the max. Running speed is 80kn/h.It is mainly composed of a frame, a cab, a power system, a running gear, a braking system, an electrical system, a hydraulic system, and a truck mounted crane. It is mainly used for the traction and transportation of personnel, materials, and machinery in the maintenance of railway lines.

Specification:

Track gauge: 1435mm

Number of axles: 2

Axial arrangement: B

Diameter of wheel: Φ840mm

Wheel base: 5000mm

Transmission mode: Mechanical drive

Braking mode: Air brake+parking hand brake

Max. Running speed: 80km/h

Net weight: ≈19t

Rated engine power: 247kW

Oil tank capacity: 470L

Hydraulic oil tank capacity: ≈300L

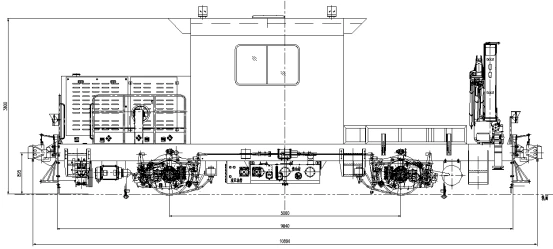

Dimension(Length×Width×Height): 9840mm×2900mm×3800mm
