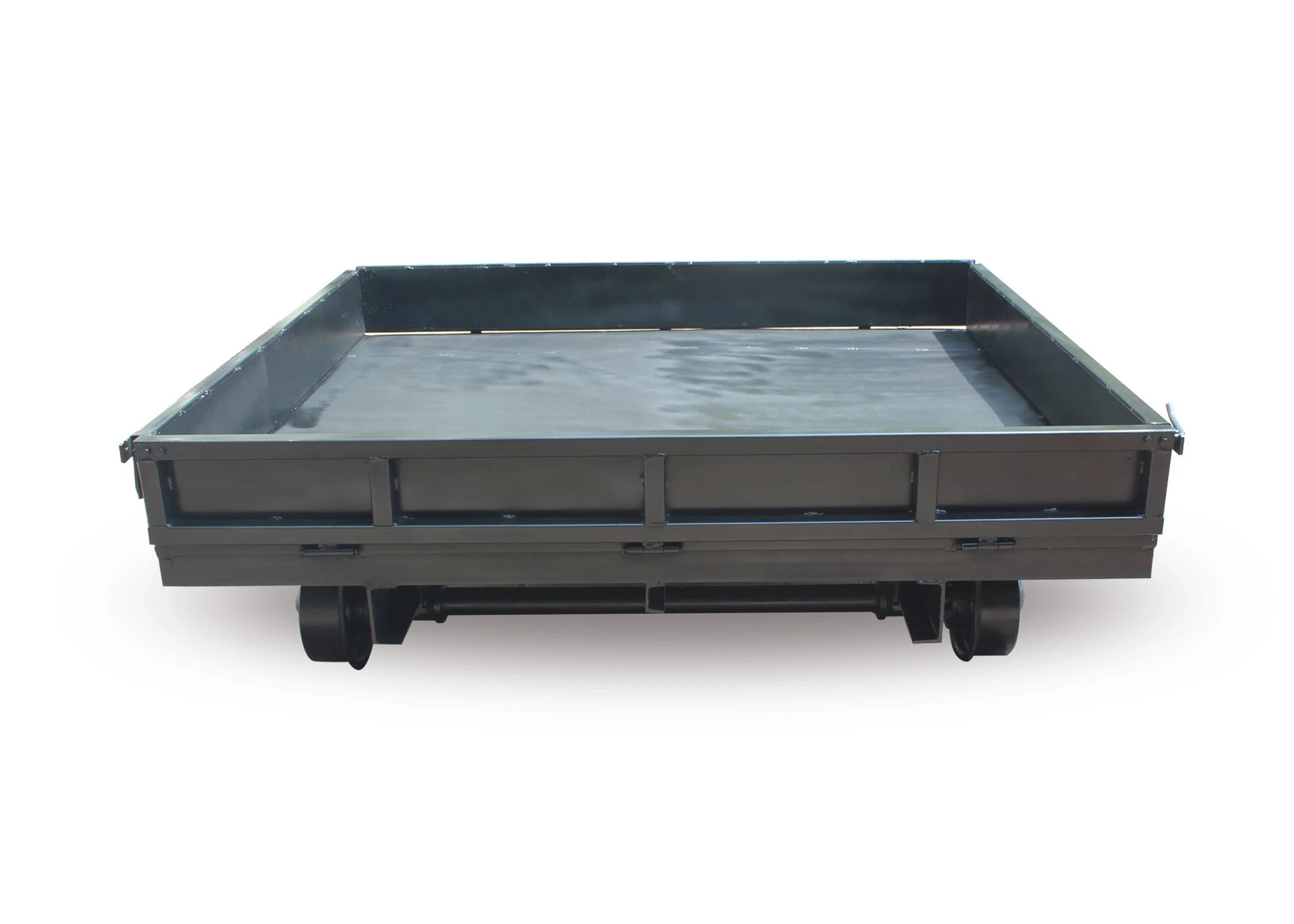

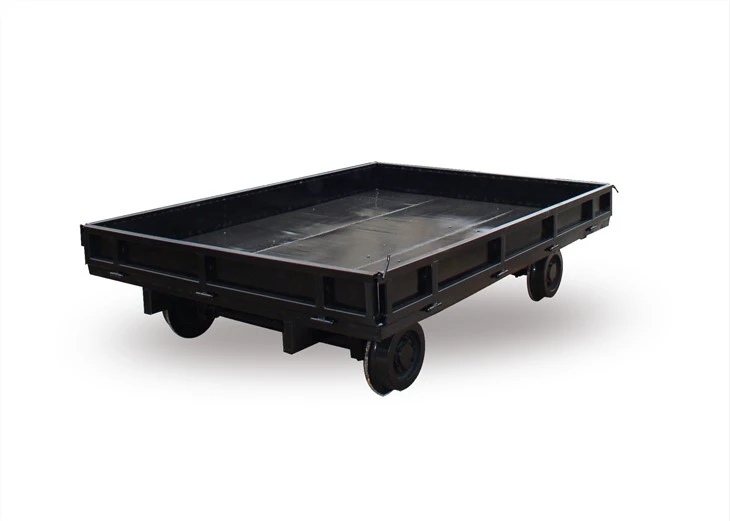

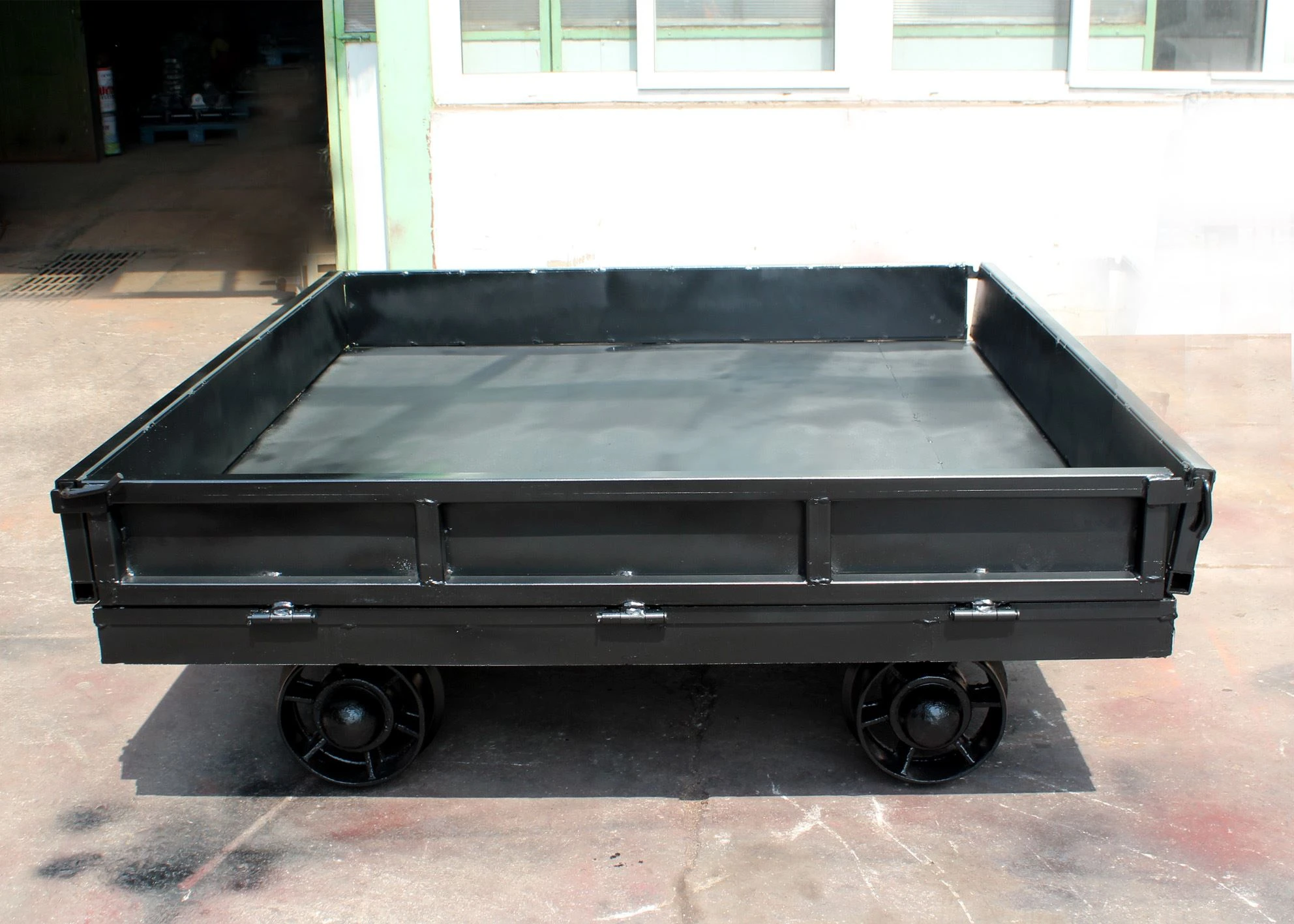

PC-50 Track Trolley 500kg trailer with hook

PC-50 type track trolley is suitable for transporting small tools or small equipment on the rail in short distance. It is suitable for 1435mm gauge and must be used on the blocked track or the line without train. (this flat car is customized for the user's needs, subject to the user's customization. This manual is for reference only.)

Send Inquiry

Product Introduction

banner2

PC-20 / 50 type PC-50 Track Trolley 500kg trailer with hook is suitable for transporting small tools or small equipment on the rail in short distance. It is suitable for 1435mm gauge and must be used on the blocked track or the line without train. (this flat car is customized for the user's needs, subject to the user's customization. This manual is for reference only.)

Technical Parameter

1. Load capacity: ≤ 2T / 5t (optional)

2. Trolley weight: 780kg (according to load)

3. Overall dimension of track trolley: 2800 × 2000 × 700mm (optional)

Usage and Maintenance

1. When using on the road, we must pay attention to the safety of transportation, and lock the carriage plate after loading the goods or machines to prevent the carriage plate from falling during transportation.

2. In daily use, check the wheel assembly every half a year, add molybdenum disulfide grease to the interior for maintenance, check the damage caused by long-term use of the carriage plate, and carry out timely maintenance.

3. Railcar are carried out by manpower, and the speed should not be too fast. If it is necessary to brake, it should be braked by manpower.

4. The track trolley is placed on the rail, and iron shoes can be placed between the wheel and rail to prevent the car from slipping and causing danger.
