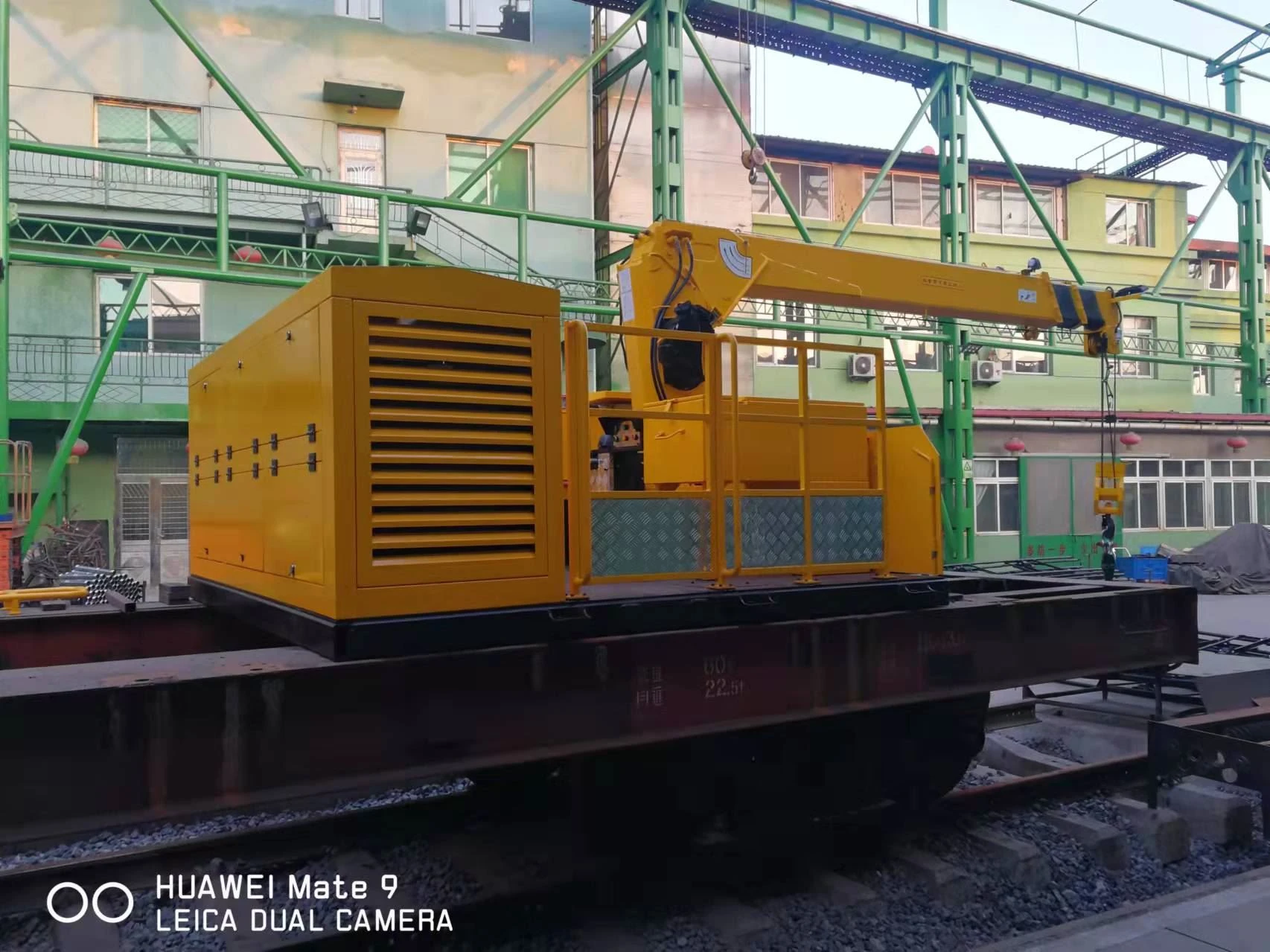

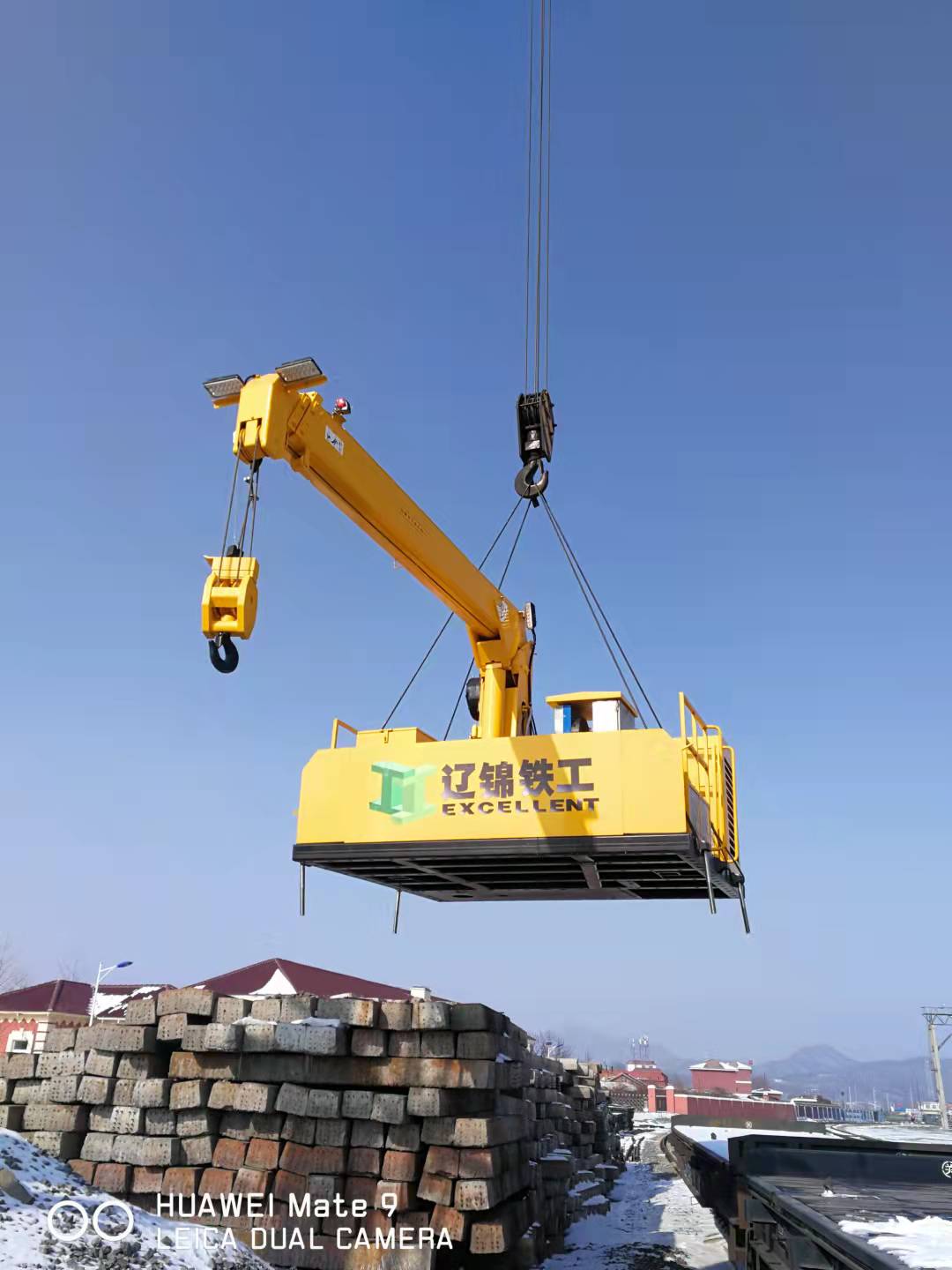

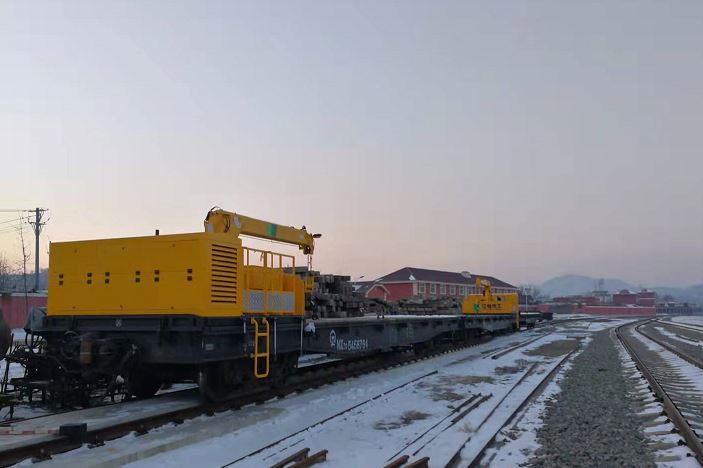

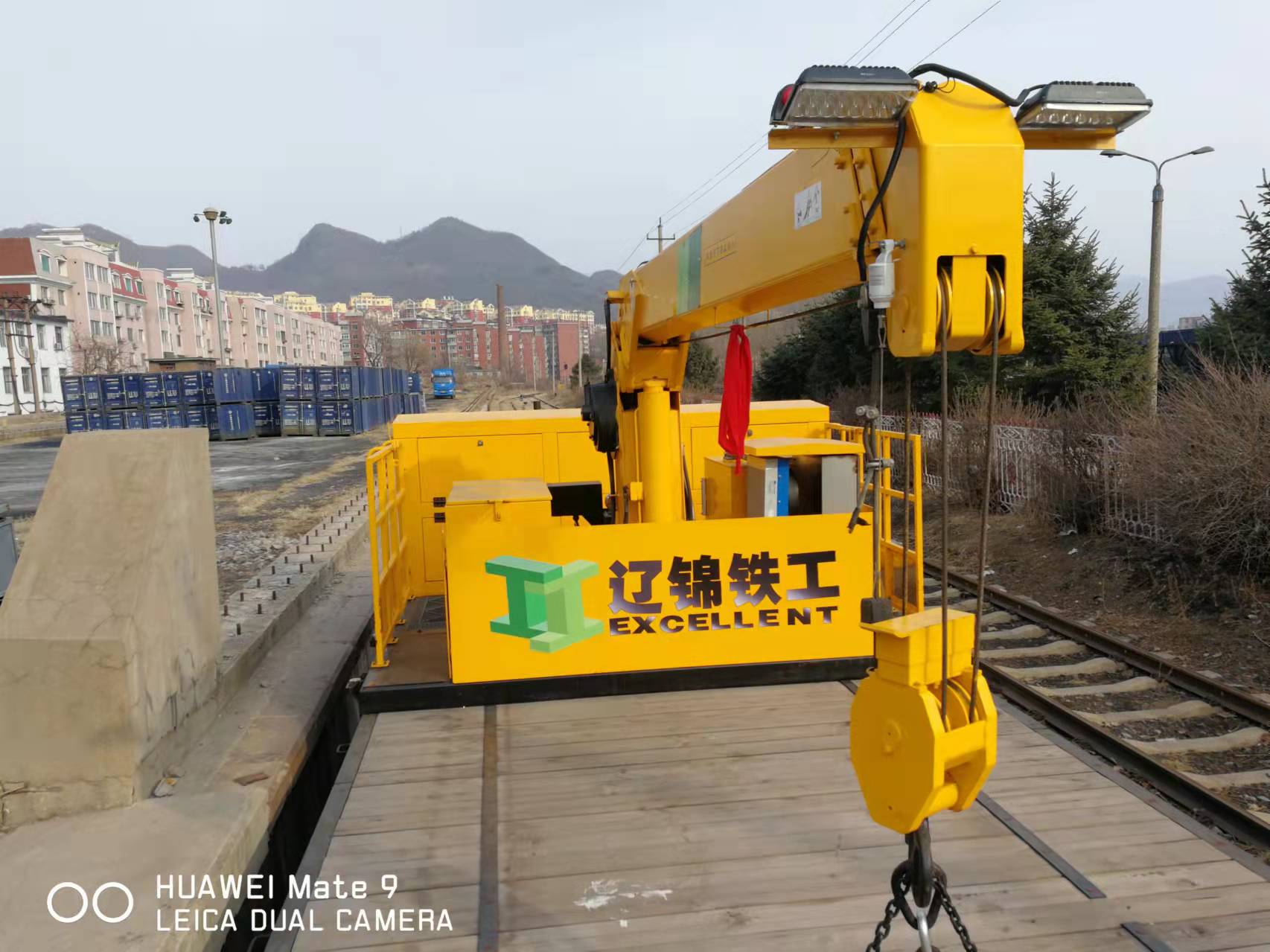

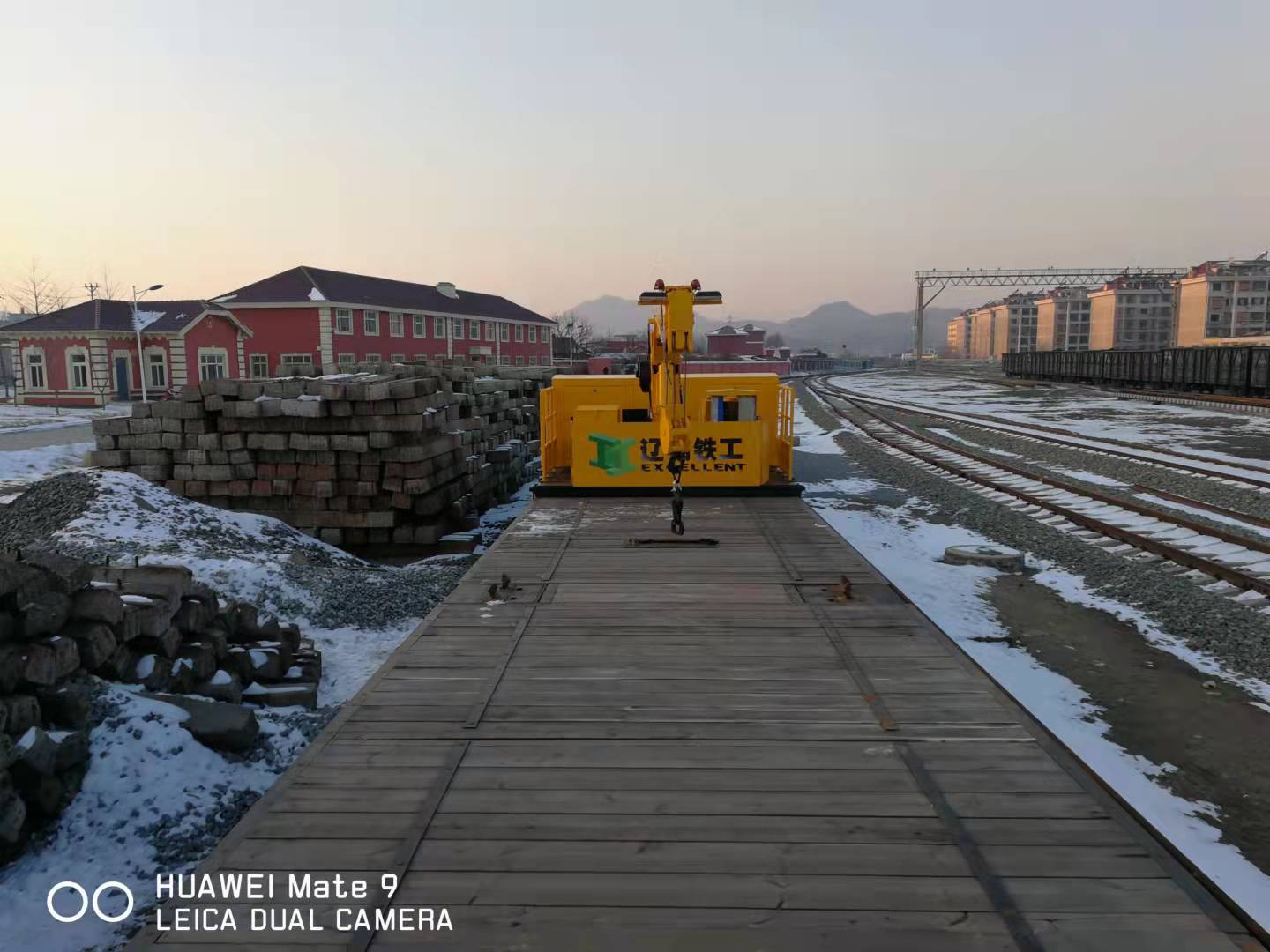

QPC-ⅠRAIL LIFTING CRANE special designed lorry crane completed with wagons

QPC-ⅠRAIL LIFTING CRANE special designed lorry crane completed with wagons

A. General

1. Each flat wagon carries 1 unit lifting crane. 2 lifting crane as 1 group to work.

2. This equipment is used for carrying rails, frog, machinery and other cargoes which the weight less than 10tons, length less than 25m.

3. The rotation angle can reach 360°.

4. The crane is telescopic, the Max. length is 8.6m.

C. Basic specification

All parameters are provided in "1 unit".

1. Diesel generator adopts CUMMINS which can meet EURO3 standard. The proposed parameters are as follows:

①Generator set: 40KW

②Voltage: 400V/230V

③Current: 74A

④Diesel engine: Pending

⑤Motor power: 22KW

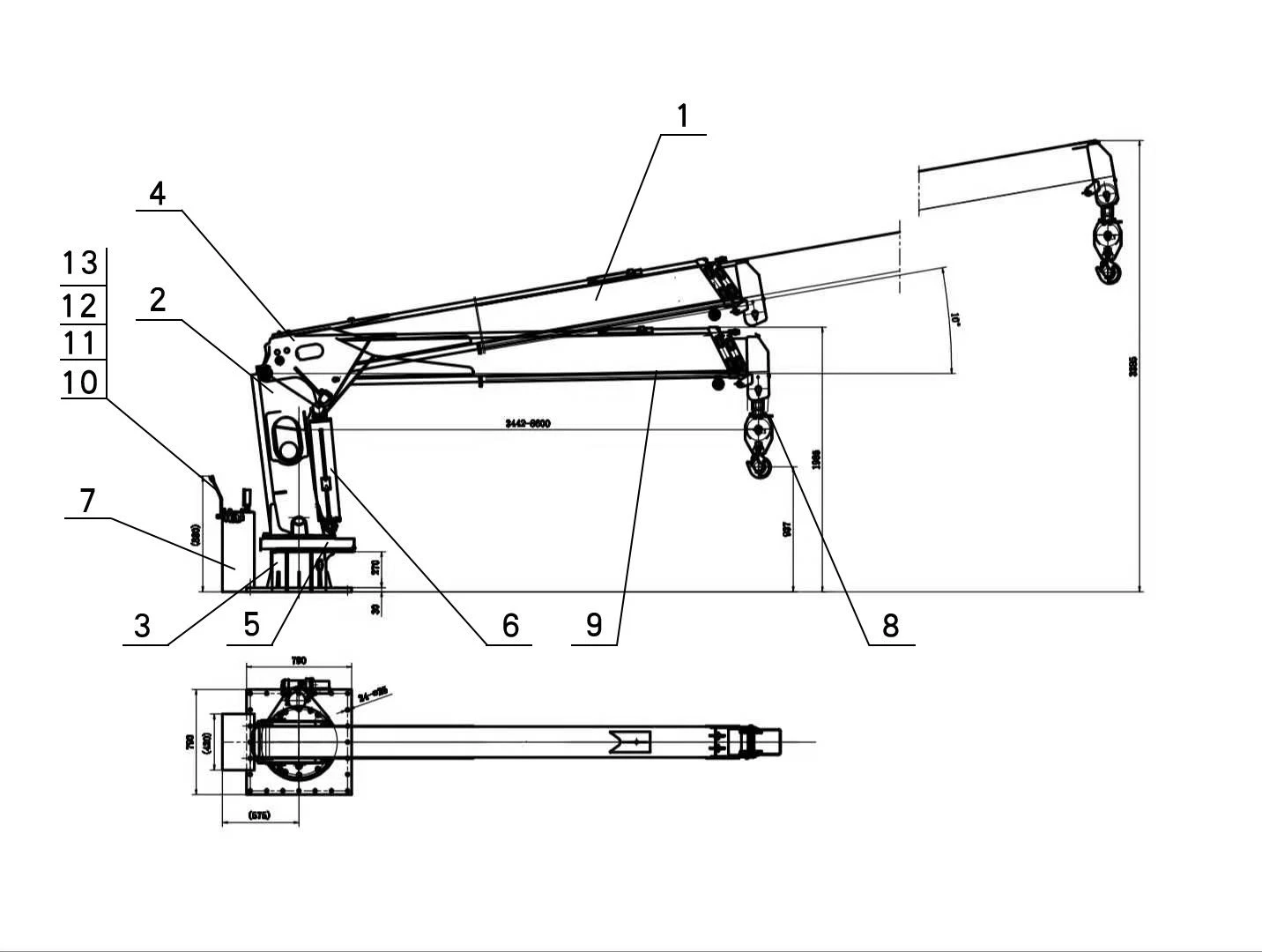

2. Lifting crane specification

No	Specification	Unit	Parameter
1	Rated lifing capacity	Kg	5000
2	Max. lifting torque	KN·m	110
3	Max. lifting height	m	11
4	Rated loading capacity/force arm	Kg	5000/2.2 m
		Kg	2900/3.5 m
		Kg	1430/5 m
		Kg	650/8.6m
5	Working radio	mm	8600
6	Boom luffing speed	º /s	1-76/17
7	Boom telescopic speed	m/s	5.16/12
8	Wire rope diameter	mm	∮10
9	Wire rope length	mm	57
10	Rated pressure of hydraulic pump	MPa	21
11	Rotation range	º	±360
12	Rotation speed	r/min	0-3
13	Lifting speed of hook	m/min	25
14	Dead weight of lifting crane	Kg	5000
15	Flat wagon		NX70
16	Working temperature	℃	-25°～45°

3. Flat wagons specification

The flat wagons has to meet the requirement of:

a. Length: ≥15m

b. Loading capacity: ≥50ton

We intend to select NX17 model flat wagon:
