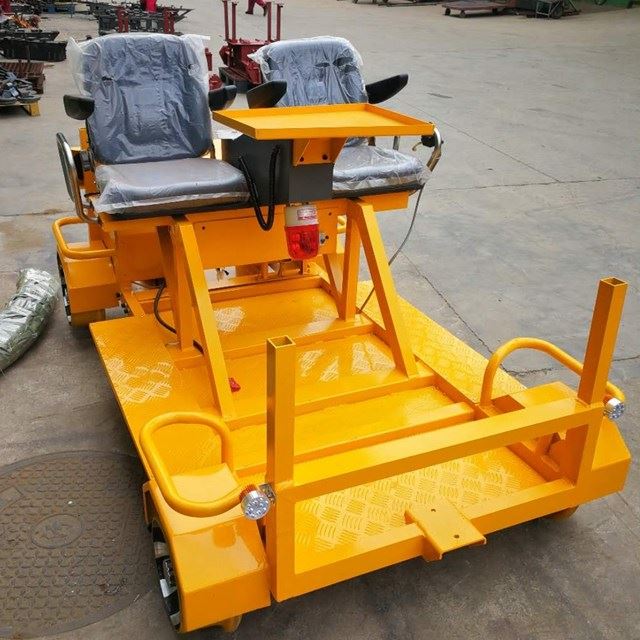

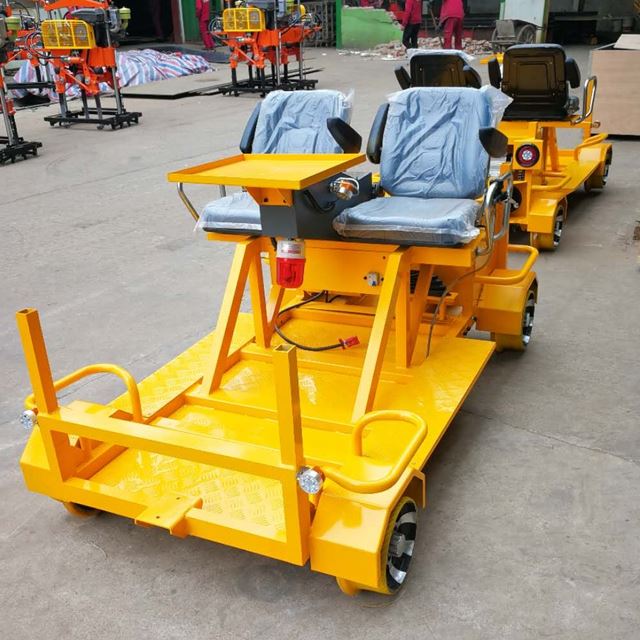

CUSTOMIZED RAIL TROLLEY
This trolley is suitable for transporting small tools or persons on the rail. It is suitable for 1435mm gauge （Can also be designed according to customer requirements）. It must be driven on the blocked track (in the skylight point) or on the line without train.
This RAIL TROLLEY is equipped with lithium battery as the power source. Because this car is not a railway rail car, it is not easy to drive too fast, and the driving speed shall not exceed 20km/h. Please pay more attention to it. The running speed of curve and turnout area shall not exceed 10km/h. if danger occurs due to over speed, the consequence shall be borne by oneself.
2. Main Technical Parameters
1. Driving speed: ≤ 20Km/h (driving over the speed limit is not allowed)
2. Motor type: brushless reducer motor
3. Rated output power of motor: 1kw
4. Rated voltage of motor: 60V
5. Voltage and capacity of lithium battery: 60V/40AH (optional number of lithium batteries)
6. Charging time: 6-8 hours
7. Output voltage: AC22D ± 10% V50-60HZ
8. Charging voltage: 60.0 ± 0.4
9. One charge drive distance: ≥40km(inwinter time)
≥ 60km (in summer time)
10. Braking distance: 10-15m
11. Loading capacity: ≤ 1000kg
12. Trolley weight: Total weight ≤ 290kg (after assembly)
Front frame assembly weight: 50kg
Rear frame assembly weight: 60kg
Main body assembly weight: 105kg
Shed assembly weight: 40kg
Lithium battery weight: 35kg
