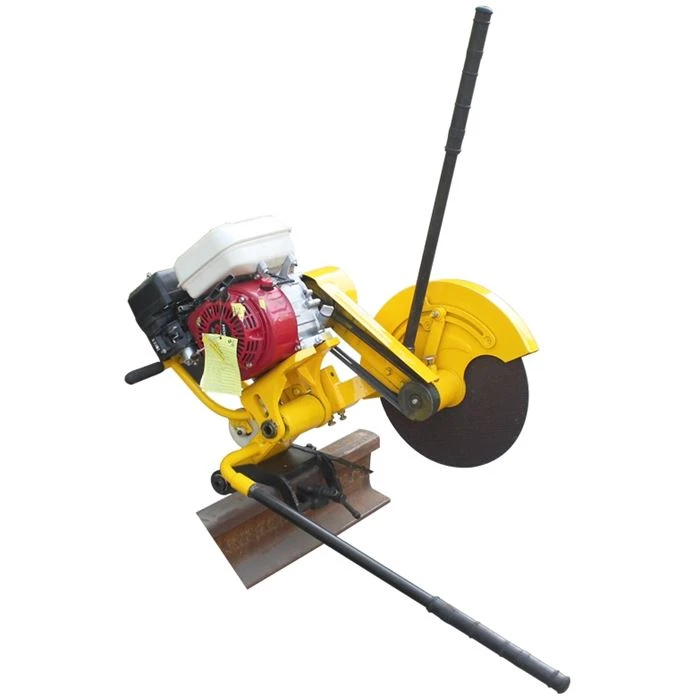

NQG-5III Rail Cutting Machine Rail Saw Gasoline Engine

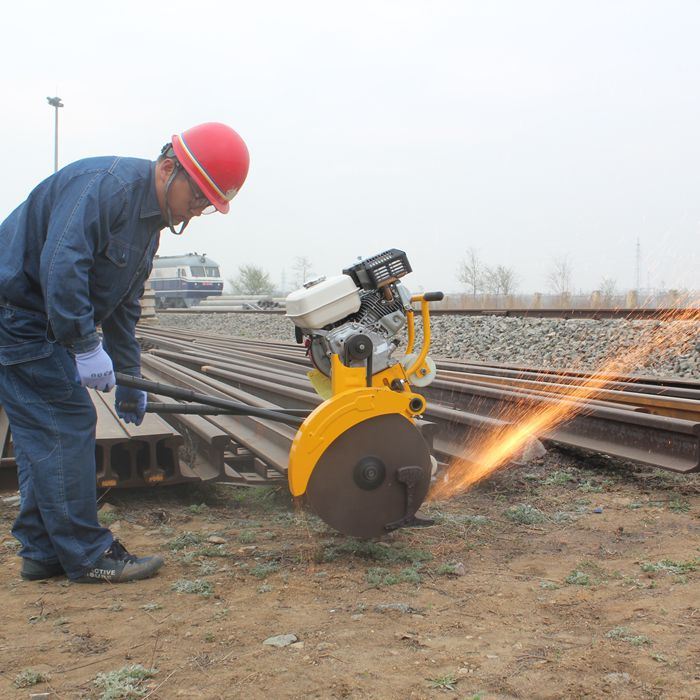

NQG-5III Internal combustion rail cutting machine is suitable for cutting rails of 43kg/m～75kg/m. The quality of cutting section meets the requirement of railway industrial standards. It’s a major machine used in railway overhaul, maintenance and rush repairing operation. It has features of fast cutting speed, high utilization rate of thin cutting disc, high quality of cutting section, easy operation, easy movement, safe use and wide application range etc.
- Product Introduction
A. APPLICATION
NQG-5III Internal combustion rail cutting machine is suitable for cutting rails of 43kg/m～75kg/m. The quality of cutting section meets the requirement of railway industrial standards. It’s a major machine used in railway overhaul, maintenance and rush repairing operation. It has features of fast cutting speed, high utilization rate of thin cutting disc, high quality of cutting section, easy operation, easy movement, safe use and wide application range etc.
For maximum strengthfast and precise cuttingall types of flat bottom rails
Bidirection wobble rail cutting machine with the lightest weight in the domestic market

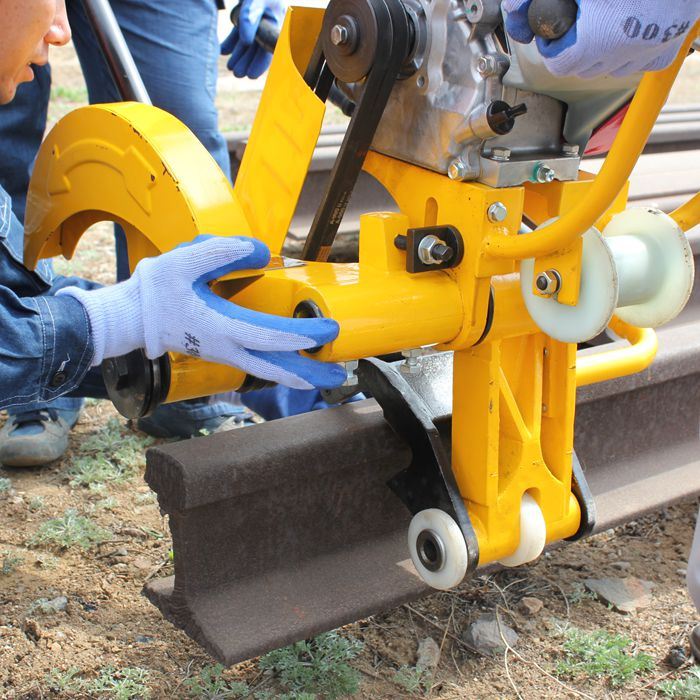

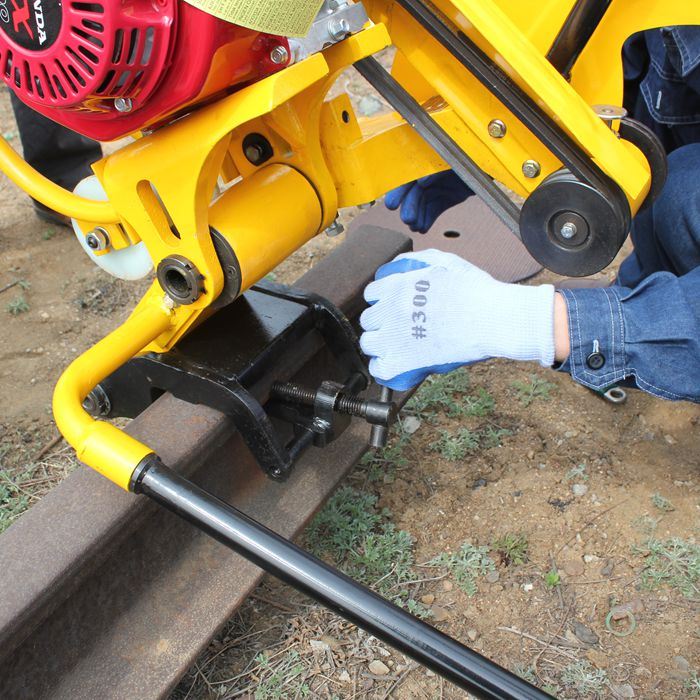

Alloy constructional steel main frame with quick-clamping device
Comfortable working in upright position
The walking wheel device realizes to walk on land and track respectively
Spark protection for cutting discs --the efficient use of consumables
B. SPECIFICATION
1. Petrol engine ：
1）Model：HONDA GX200/ GX270
2）Power：4.8kW
3）RPM：3600r/min
2. Cutting disc (principle axis)：
1）Linear speed：70m/s
2）specification：Φ400×Φ32×4mm
3. Main spindle rpm: 3030r/min
4. Cutting time： 60kg/m≤120S
5. Total weight： 39.5kg
C. ACCESSORIES

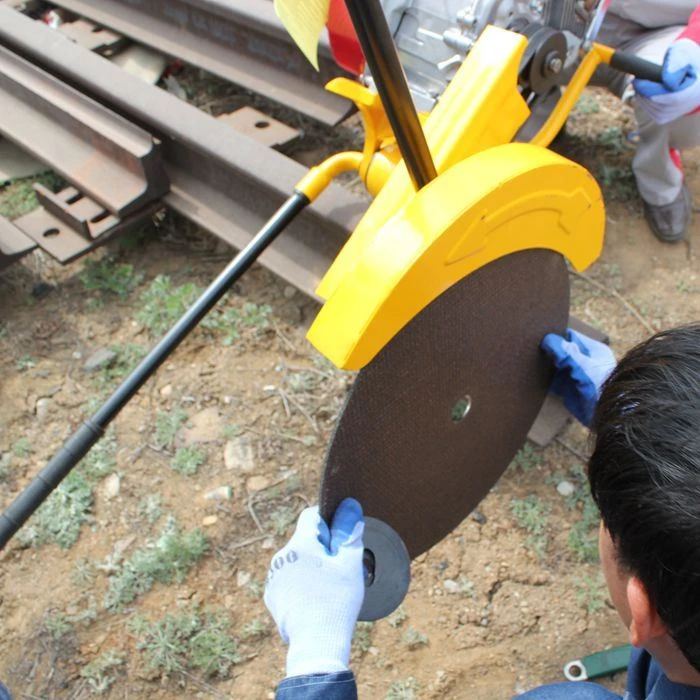

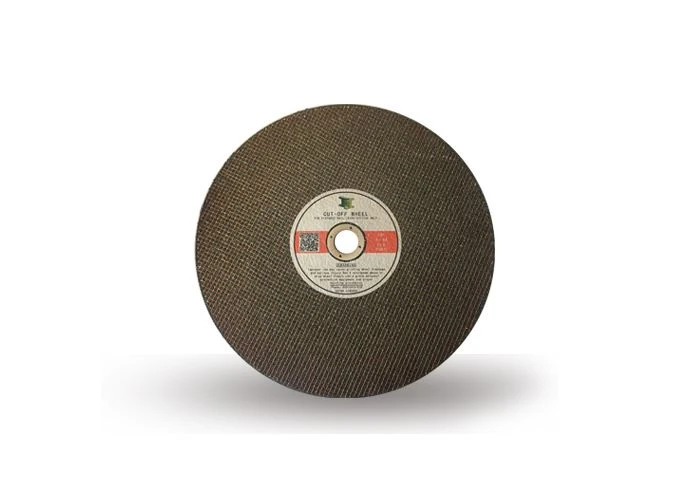

Φ400×Φ32×4mm cutting disc
