QG-3II/QG-4II Electric Abrasive Rail Cutting machine

QG-3II/QG-4II Electric Abrasive Rail Cutting machine

Product preview

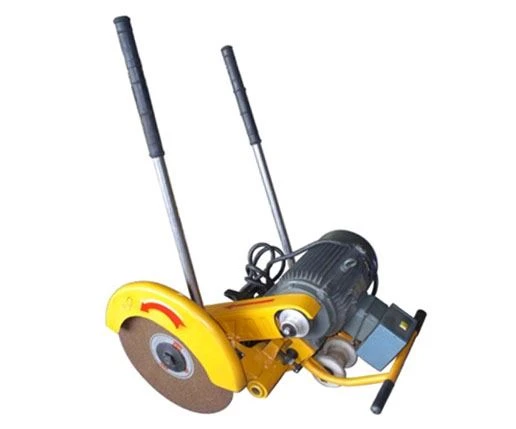

QG-3 Ⅱ electric rail cutting machine is suitable for cutting 43 kg / m ~ 75 kg / m rail. The quality of cutting section meets the requirements of railway industry standard. It is the necessary equipment for railway maintenance department to overhaul, repair and rush repair. It has the advantages of fast cutting speed, high utilization rate of slice grinding wheel, high cutting section quality, simple operation, easy movement, safe use and wide application range.

Specification

1. Electric Motor:

1) Power: 3.0 kw

2) Speed: 2850r / min

(cast iron shell 2870r / min)

2. Disc grinding wheel (spindle)

1) Spindle speed : 3060r / min (3080r / min)

2) Specification: Φ 400 × 4 × Φ 32mm

3) Linear speed ≥ 70s / M (80s / M recommended)

3. Cutting time : 60kg / m rail ≤ 120s

4. Number of usage: 50kg /m rail, usage ≥ 4 times

60kg /m rail, usage ≥ 3 times

5. Whole machine weight: cast aluminum shell motor ≤ 54kg

(cast iron shell motor ≤ 64kg)

Contact information

1. Electric Motor:

1) Power:               3.0 kw

2) Speed:               2850r / min

(cast iron shell 2870r / min)

2. Disc grinding wheel (spindle)

1) Spindle speed :        3060r / min (3080r / min)

2) Specification:         Φ 400 × 4 × Φ 32mm

3) Linear speed          ≥ 70s / M (80s / M recommended)

3. Cutting time :         60kg / m rail ≤ 120s

4. Number of usage:        50kg /m rail, usage ≥ 4 times

                        60kg /m rail, usage ≥ 3 times

5.Whole machine weight:  cast aluminum shell motor ≤ 54kg

(cast iron shell motor ≤ 64kg)
