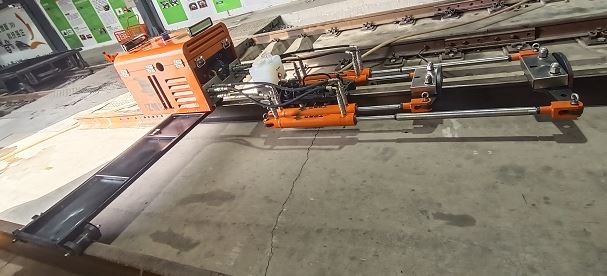

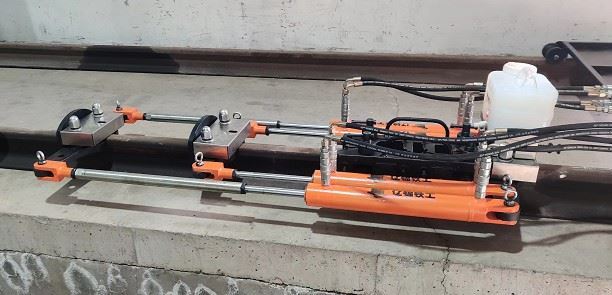

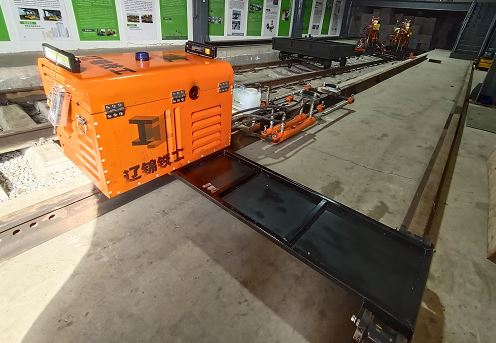

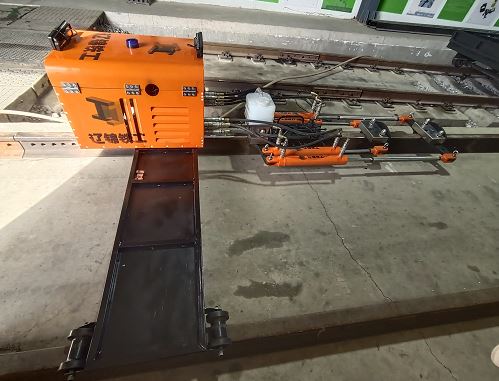

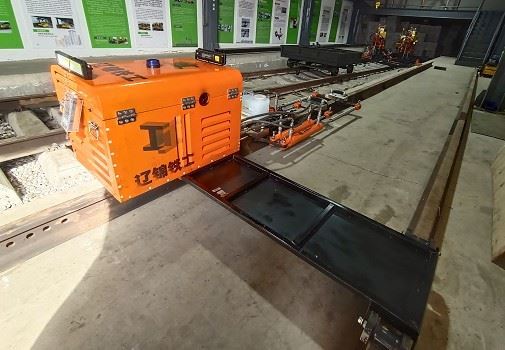

Remote control hydraulic rail fat cutting/milling machine

The Remote control hydraulic rail fat cutting/milling machine is mainly suitable for cold cutting of rail fat edges. The whole machine adopts a modular split structure, its monomer is light in weight, high in integration, convenient to go up and down, and easy to operate. The control mode adopts manual and wireless remote control and automatic control, the control methods are diversified, the control is simple, and the safety is high. The hydraulic pump station adopts the single-chip microcomputer control method to precisely control the movement of the oil cylinder and the hydraulic energy and pressure, so as to achieve fast, accurate and intelligent operation. The clamp body adopts automatic locking and loosening method to realize continuous cutting operation. The tool adopts the principle of cold cutting profiling segmented cutting, which is composed of side cutter, profiling cutter and shaping cutter. It has good cutting quality, precise size control and smooth surface roughness. The stretching cylinder adopts the alternate and continuous expansion and contraction method of the inner and outer cylinders, and the cutter body performs uninterrupted cutting operations. This equipment is a new product integrating cutting, cooling, automatic running, electromechanical and hydraulic. It has the characteristics of remote control, high operation efficiency, convenient access to and from the road, light equipment, simple operation, and reliable safety performance.

Send Inquiry

Product Introduction

Scope of application:

1.1 Suitable for 50kg/60kg/75kg rail type fat edge cutting operation (other rail types can be customized).

1.2 According to the operation mode and operation scale, it is used for blockade construction.

1.3 The transportation, operation and storage of the intelligent hydraulic rail cutting fertilizer and edge cutting machine shall be carried out in accordance with the requirements of the line standard and in strict accordance with the relevant provisions of the TG/GW101-2014 "General Speed Railway Public Work Safety Rules".

Technical Parameters:

1. Gasoline engine model: Briggs & Stratton 25V3

2. Gasoline engine type: air-cooled four-stroke OHV

3. Rated torque of gasoline engine (N.m/r mp): 28.5/3600

4. Operation efficiency: ≥140m/h

5. Output voltage: 12V

6. Maximum system pressure: 20MPa

7. Gasoline fuel consumption: 1.1L/km

8. Single piece weight: outer cylinder 28kgX2; inner cylinder 21kgX2; clamping body 28kgX3; cutter body 57kg; pump station 120kg; short oil pipe 1.3kgX4; long oil pipe 1.6kgX4; cooling part 1.5kg;

9. Mass of the whole machine: 386kg.

Operating procedures:

3.1 Before the operation, all parts of the machine must be inspected. The parts are complete, and the machine has a fault that has not been eliminated. It is strictly forbidden to work on the road.

3.2 Check the hydraulic oil, gasoline engine fuel, lubricating oil, etc. of the machine. If it is insufficient, it should be supplemented. It is strictly forbidden to use unqualified gasoline, engine oil, hydraulic oil, etc.

3.3 After the machine is started, it should run at idle speed for 2 to 3 minutes, and the operation can only be carried out after all parts of the machine are running normally.

3.4 Strictly follow the operation steps.

Special safety regulations

4.1 When the machine is transported and transported, pay attention to the inclination angle of the engine to the intake valve end should not exceed 45 degrees, to prevent the oil from entering the air filter element, resulting in insufficient fresh air and unable to start and operate normally.

4.2 Drain the gasoline in the gasoline engine during transportation and after the work is finished to avoid the danger of static electricity during transportation.

4.3 The cutter head of the cutter body should be replaced according to the usage and wear conditions.

4.4 Regular maintenance and inspection of equipment.

4.5 Contact the ground wire of the gasoline engine with the steel rail to prevent static electricity and explosion in the gasoline engine during operation.

If you want to know more details, please do not hesitate to contact me~
