Internal Combustion Rail Waist Grinding Machine

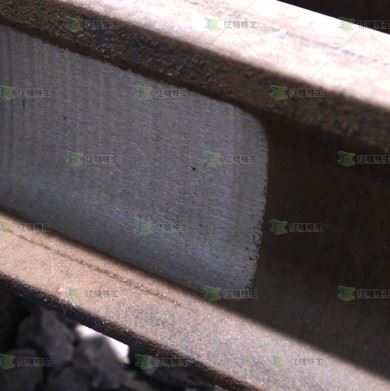

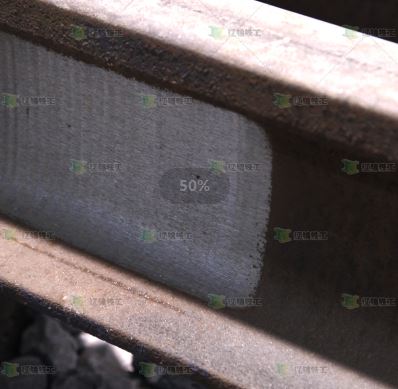

The machine is suitable for grinding works before railway laying, subway maintenance welding and gluing insulated joints construction. This work is one of the heavy workload jobs in the rail welding operation. In the past, it was mainly carried out by hand-held electric grinder or angle grinder, it has led to high labor intensity, low operation efficiency and slow working speed, poor grinding surface quality, serious environmental pollution etc.

Technical Parameters

1. Engine: petrol engine

2. Max output power: 4.0kw/3600rpm

3. Grinding wheel spindle speed: 3600rpm

4. Grinding wheel diameter: Φ 100-230mm

5. Machine weight: 57kg

6. Dimension: 1120 ×430 × 780mm

Basic Structure and Working Principle

1. Working Principle:

The four-stroke petrol engine is used as the power source, the belt pulley is driven to rotate through the clutch, the main shaft is driven to rotate through the belt, and the rail waist is polished through the flexible shaft connected with the grinding wheel.

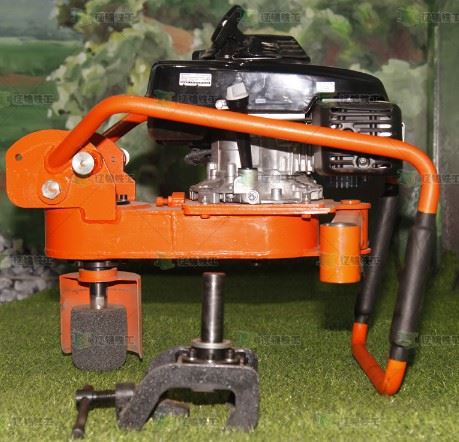

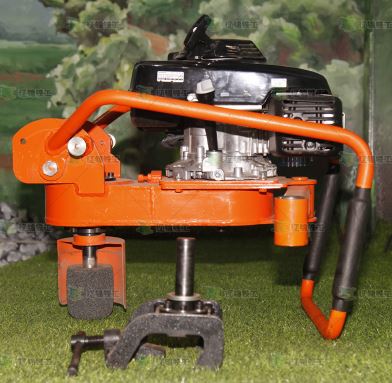

1. Basic Structure:

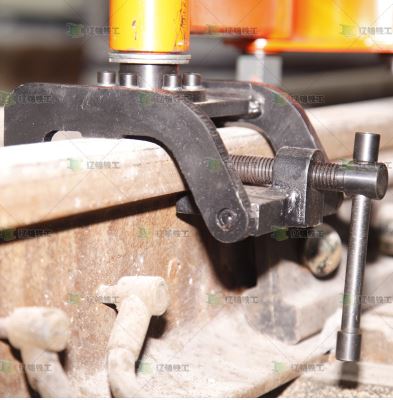

1 Operating handle, 2 Petrol engine, 3 Clutch reducer, 4 Connecting rod, 5 Grinding wheel, 6 Grinding wheel cover, 7 Clamping device 8 Ejector rod of clamping device
