Rail Grinding Machine
GM-2.2 electric rail grinding machine is suitable for grinding various types of rail welds, uneven joints, rail side fat edges, rail surface welding and other parts.
- Product Introduction
Rail Grinding Machine
Railway rails are in the open air environment for a long time, and the load of the train makes the track wear and deformation, and loosening of the connecting parts. In order to make the train run safely, the safety and quality of railway equipment should be ensured. Therefore, each part of the rail needs regular maintenance and repair, so as to keep up with the growing demand for travelling by the people. However, some maintenance work workers are no longer competent, such as rail weld joints, rail surface unevenness, what do we do?
The internal combustion copying grinding machine is a rail grinding tool used in railway maintenance, which is powered by gasoline engine. In the daily maintenance of rail, the top surface, side surface and arc surface of rail need to be polished to remove rust, this product is for the maintenance of rail research and development. The internal combustion copying sander, powered by Honda gasoline engine, has high power and high efficiency. The internal combustion copying grinding machine is suitable for switch switch, switch center, wheel guard rail, etc
|
Type |
GM-2.2 |
NCM-4II |
NGM-4.8 |
|
Parameter |
1. Motor Model: Y2-90L-2 Voltage: 380V three-phase Number of revolutions: 2840r / min Power: 2.2kW 2. Grinding wheel Size: ∮150×70×∮55mm 3. The spindle speed: 2840r / min 4. Wheel span: 1000mm 5. Grinding wheel travel: 50mm 6. Machine weight: 64kg 7. Size: 1500 × 630 × 760mm |
1. Gasoline engine power: 2 strokes /4.4kw 2. The spindle speed: 4670 r/ min 3. Grinding wheel specifications: ∮150×70×∮55mm 4. Grinding head travel: 45mm 5. Machine weight: 61kg 6. Size: 1480 × 470 × 810mm 7. The machine will be sent with 1 pc of grinding wheel free of charge |
1. Petrol engine: Model: Honda GX200 Engine rpm: 3600r/min Power: 3.7KW 2. Grinding wheel size:∮125×65×M20 3. Spindle rpm: 4500r/min 4. Inclination angle of grinding wheel: ±90° 5. Grinding wheel stroke: 45mm 6. Distance between two profile wheels: 1000mm 7. Machine weight: 90kg 8. Dimension: 1500×450×750mm |

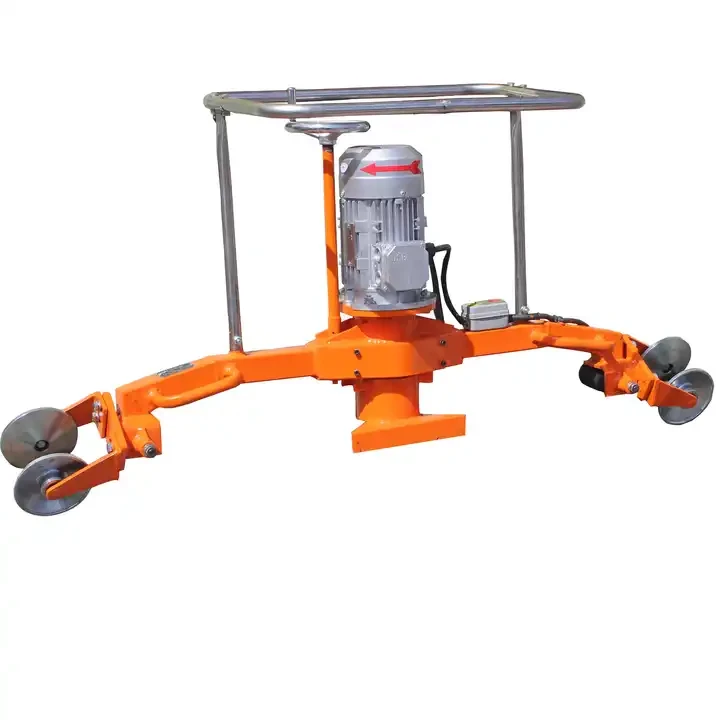

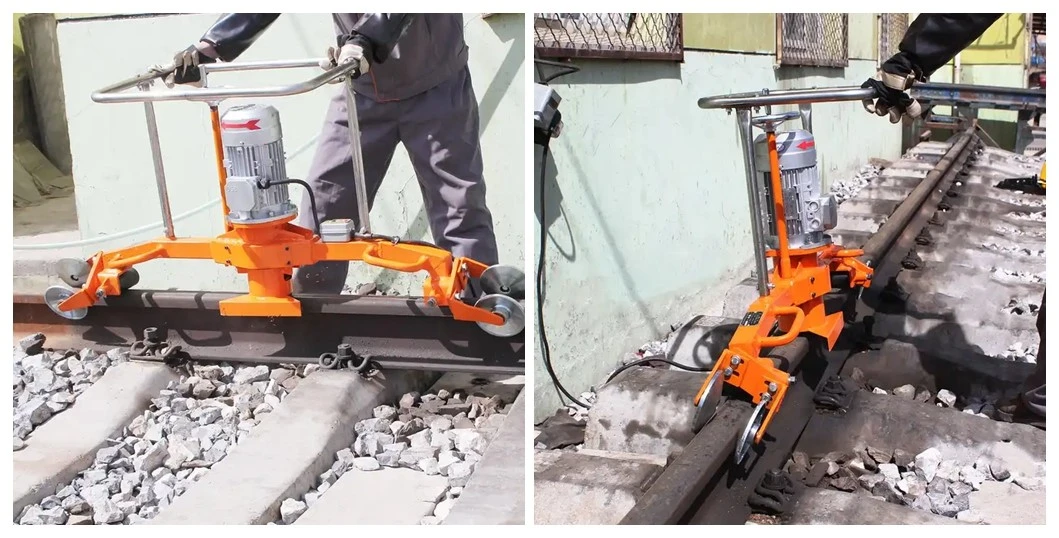

GM-2.2:

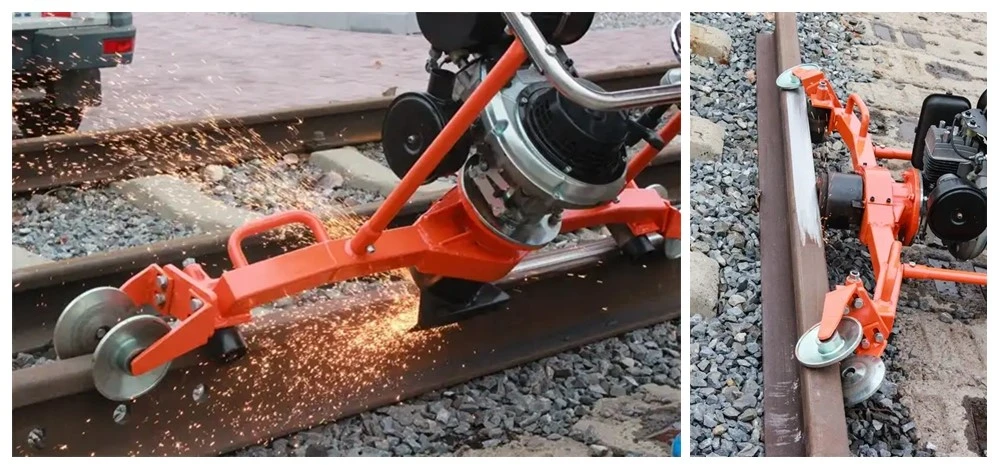

NCM-4II：

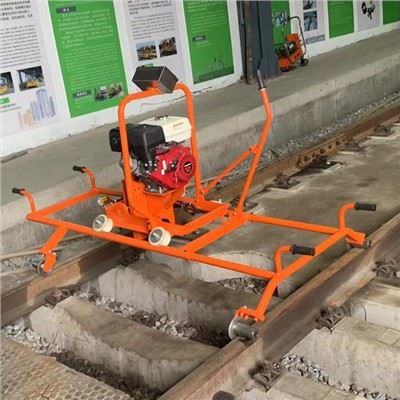

NGM-4.8：
