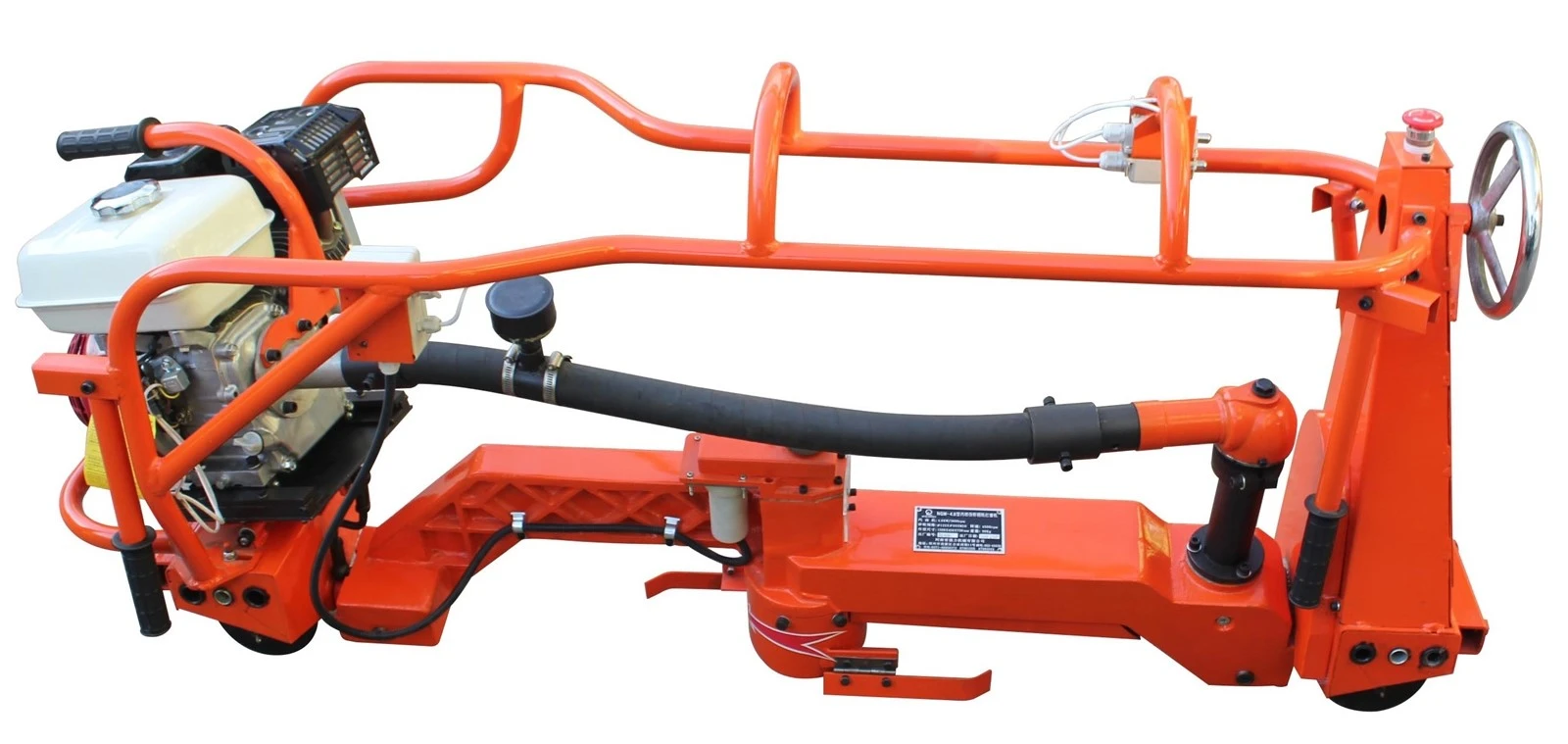

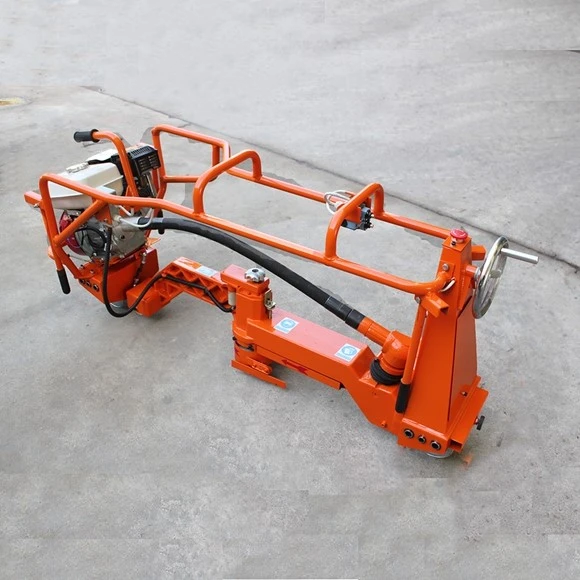

Rail Profile Grinding Machine

NGM-4.8 rail grinding machine suitable to 43kg/m-75kg/m rail track welding, uneven connect, rail track fat edge, track end-face welding and repair etc .It has High work efficiency, good quality of grinding, the advantages of simple operation, convenient for move on the track and move out, which is necessary tool for railway project overhaul and emergency maintenance.



Specification

1. Petrol Engine

Model： GX200

RPM： 3600r/min

Power： 4.8kW

2. Grinding Wheel Dimension： 125×65×M20

3. Speed of main shaft： 4500r/min

4. Grinding head angle of inclination： 90°

5. Grinding head Route： 45 mm

6. Profile wheel spin： 1000mm

7. Weight： 90kg

8. Dimension： 1500×450×750mm













Daily maintenance:

1. Check the connecting bolts of walking wheels, frame, etc., and repair the loose bolts in time.

2 .Guarantee the overall cleanliness of the body of the sanding machine.

3 .After the use of sanding equipment should be timely storage, stored in a clean, ventilated, dry place.

4 .In order to keep the gasoline engine in good operating condition, make sure to use clean gasoline. If you find that the gasoline engine's ability to absorb oil is weakened, please unscrew the connector at the outlet of the oil tank, clean the oil-absorbing filter element, and replace it if necessary.

5 .If the sander is not used for a long period of time, drain the gasoline in the fuel tank and start the gasoline engine to deplete the gasoline in the carburetor and fuel line.

6 .rail internal combustion grinder grinding is completed, the engine must be turned off, and then unload the machine down the road.

7  repair, maintenance or replacement of parts to be turned off the engine.

8 .If there is any abnormality found in the engine or spindle, stop working immediately, do not disassemble it by yourself, and the factory can send personnel to consider repairing or replacing it according to the specific situation.
