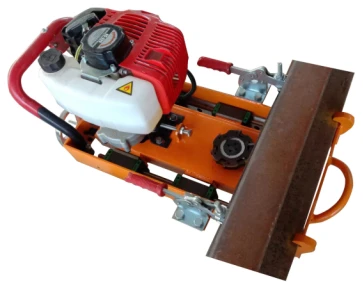

Internal Combustion After Welding Rail Bottom Shearing Machine Grinding Machine
rail bottom shearing machine processing is an important issue that affects the welding follow-up work, rail bottom welding tumour due to rolling stock, the impact of the action leads to the rail sleeper and the bottom of the rail between the various geometric dimensions of the change will affect the safety of traffic. In order to make the rails, sleepers and accessories to maintain the standard geometry, must eliminate the bottom of the rail weld tumour prominent defects, and hand grinding wheel grinding will cause uneven, discontinuous and other issues.
- Product Introduction
This machine is powered by petrol engine, adapted to be used in ventilated site of the factory and field operation, with strong adaptability to the environment, environmental conditions:
Temperature:-40℃~+50℃, humidity RH(10%~98%), altitude:≥5000m.
1.Petrol engine type: 2-stroke petrol engine
2.Petrol engine power: 2.4 KW
3.Petrol engine speed: 7000r/min
4.Milling cutter speed: 190-254rad/min 5.Milling cutter specification: 100x3x16mm 6.Milling cutter teeth number 8 7.Milling cutter blade type and material 4160511 8.External dimensions LengthxWidthxHeightxDiameterxWidthxHightxWidthxHigh Speed of milling cutter: 190-254rad/min
5. Specification of milling cutter: 100x3x16mm
6. Number of teeth of milling cutter: 8
7. Model and material of milling cutter blade: 4160511
8. Overall dimensions: LxWxH:680x360x350mm
9. Total mass: 30kg±2kg
If you'd like to know more details ,please contact me:
