Portable Rail Welding Seam Grinding Machine

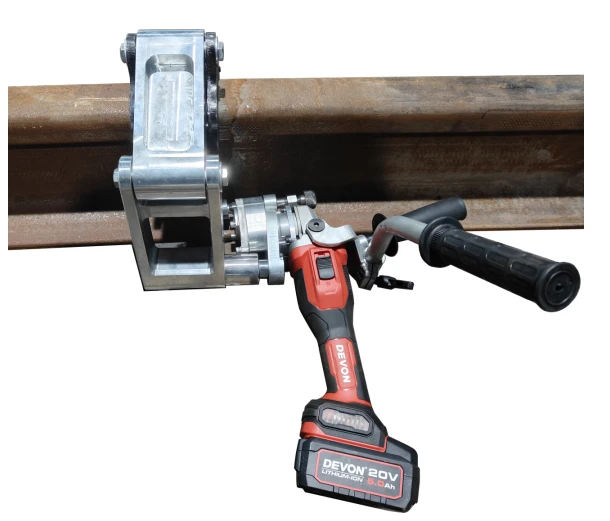

Portable rail grinding machine that can accurately trim weld overflow fretting at the rail head jaws, rail waist, rail bottom upper surface and rail bottom corners. The milling machine is lightweight and easy to operate, with a specially designed rail support arm to provide precise positioning and support. The milling machine can grind the weld overflow fly edge on both sides of the rail by turning the clamping arm in one positioning clamping. The milling machine is fitted with profiling limit wheels to ensure that the trimmer does not damage the rail parent material during operation.
- Product Introduction
Technical Parameters:
Power supply DC18V
Battery capacity 5AH×2
Outer diameter of grinding head 25mm
Quality of the whole machine 7kg
Overall Dimension 400×300×300(mm)

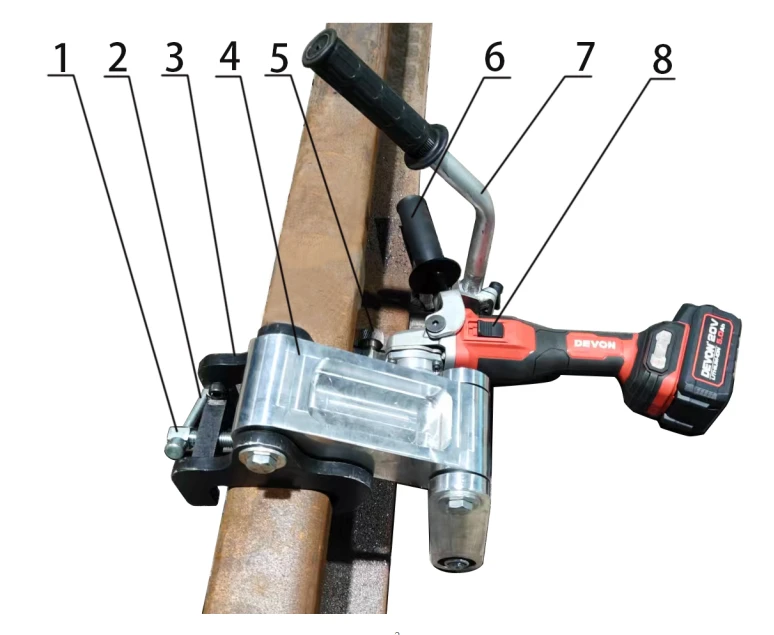

Basic structure:
1 Top screw 2 Trigger bar 3 Clamping seat 4 Support arm
5 Swivel head 6 Lateral handle 6 Vertical handle 8 Start switch 0(mm)
If you'd like to know more details, please contact me!
