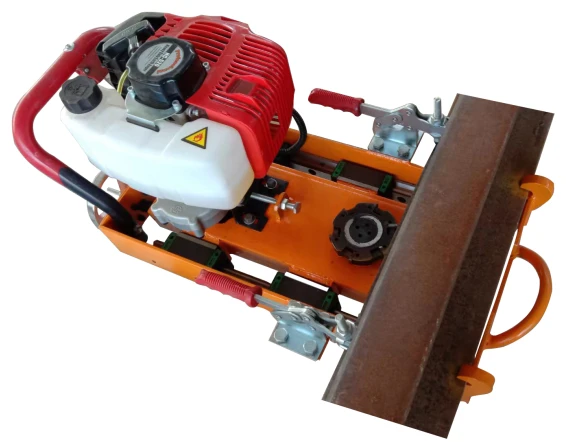

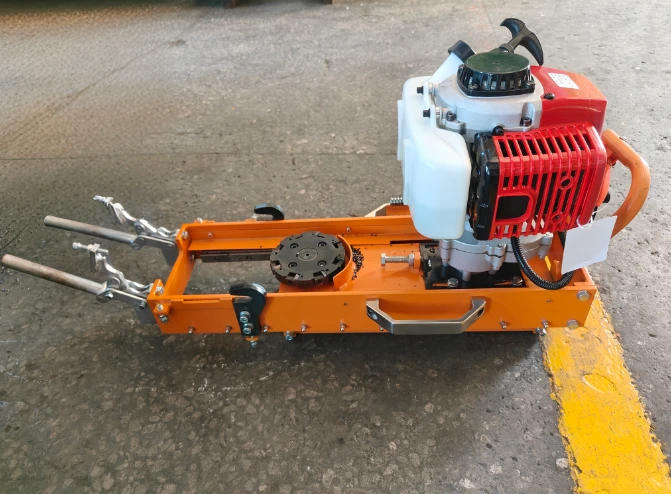

After Thermite Welding Rail Bottom Grinding Mahcine
The rail bottom weld bead milling machine is a small-sized special machine designed for railway and rail transit engineering departments to remove rail bottom weld bead after rail welding and nodules are pushed out. It can remove the rail bottom weld bead excess with high quality and high efficiency to achieve the purpose of trimming the weld bead.
- Product Introduction
This machine is powered by a gasoline engine and is suitable for both indoor and outdoor use. It is highly adaptable to the following environmental conditions:
Temperature: -40°C to +50°C, Humidity (10% to 98%), Altitude: ≥5000m.
1. Engine Type: Two-stroke
2. Engine Power: 2.4 kW
3. Engine Speed: 7000 rpm
4. Milling Cutter Speed: 190-254 rad/min

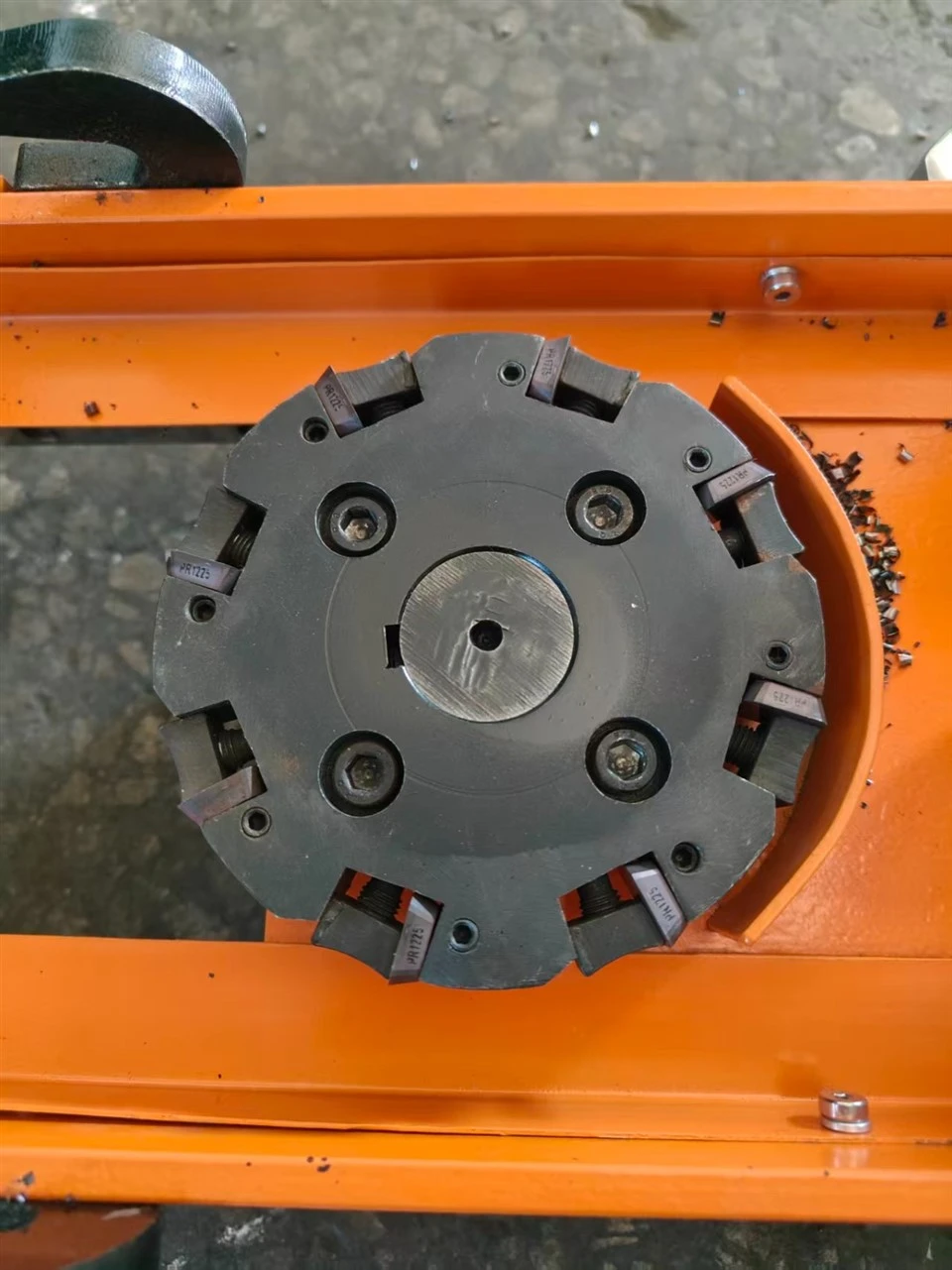

5. Cutter Dimensions: 100 x 3 x 16 mm
6. Number of Teeth: 8
7. Milling Blade Model and Material: 4160511
8. Overall Dimensions: L x W x H: 680 x 360 x 350 mm
9. Gross Weight: 30 kg ± 2 kg
