Battery Hand Tie Tamper

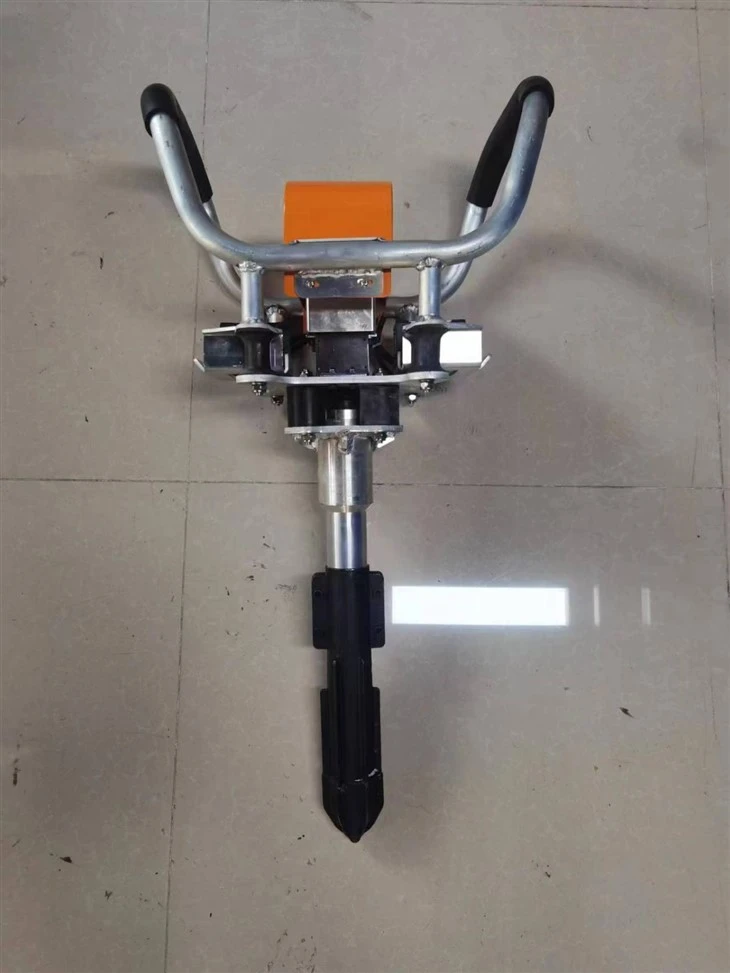

LDG-5 battery hand tie tamper



Product overview

LDG-5 battery hand tie tamper is used for tamping ballast bed and triangular pit. It's powered by a 36V Li-battery and suitable for tunnel and other semi-closed working sites.

Specification



1. Rated voltage: 36V

2. Vibration frequency: ≥190 Hz

3. Weight:20kg

4. Battery pack capacity: 24-48Ah

5. Operating temperature range: -40~50°C

6. Handle acceleration: ≤10m/s²

7. No-load amplitude: ≥1.35mm

8. Exciting force: ≥4.2KN

9. Dimensions: 1020X485X355mm

10. Vibration performance: planetary

11. Pick tip amplitude: 1.35mm

12. Handle vibration acceleration 10m/ s²

13. Pick tip acceleration： 1150m/s²

14. Vibrating rod diameter: 55mm



Features

1. Single battery weight 2.5kg, repeated charging more than 1000 times, charging time 120min, charging voltage 220V.



2. With safety protection settings, in the machine switch on state, insert the battery machine does not start.



3. Comprehensive waterproof design, support rainy day work.



4. The pickaxe can be replaced according to the needs of the road.



5. It has an APP intelligent lithium battery management platform.



6. Four-position rubber two-stage shock absorption, easy and comfortable operation.



Contact

For more information, please contact with Sabrina

1. Rated voltage: 36V

2. Vibration frequency: ≥190 Hz

3. Weight:20kg

4. Battery pack capacity: 24-48Ah

5. Operating temperature range: -40~50°C

6. Handle acceleration: ≤10m/s²

7. No-load amplitude: ≥1.35mm

8. Exciting force: ≥4.2KN

9. Dimensions: 1020X485X355mm

10. Vibration performance: planetary

11. Pick tip amplitude: 1.35mm

12. Handle vibration acceleration 10m/ s²

13. Pick tip acceleration： 1150m/s²

14. Vibrating rod diameter: 55mm
