Automatic Moving Railway Turnout Tamping Machine With Walking Motor
Railway turnout tamping machine is used for railway switch or crossing parts tamping tamping operation. With walking motor, it can be automatic moved on the track, save labors.
- Product Introduction

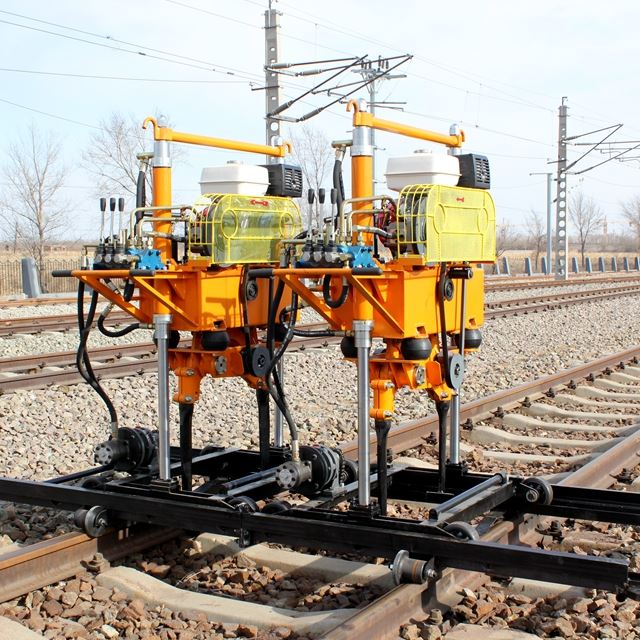

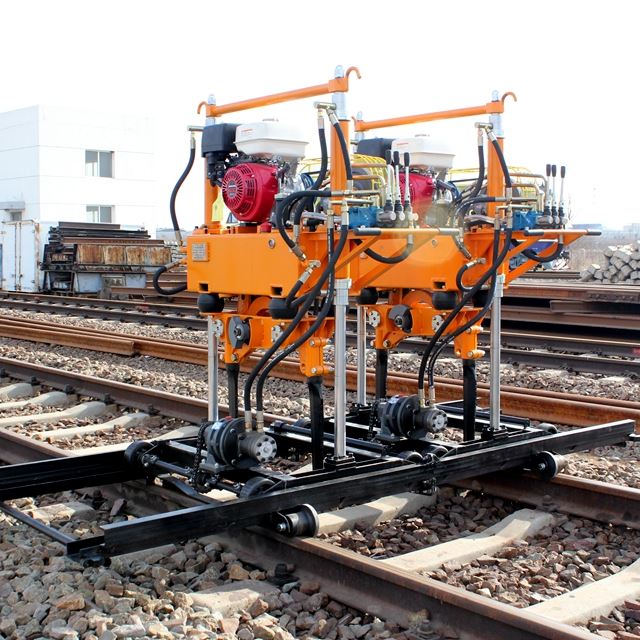

YCD-32 rail turnout tamping machine with walking motor
Product preview
YCD-32 rail turnout tamping machine is used for tamping on the railway turnout part to prevent ballast hardening, two persons as a team to tamp one sleeper with ballast or gravel, can use gasoline engine or diesel engine as power supply, appends the transverse hydraulic motor to achieve informal lateral movement, completed with off-track frame and walking frame to ensure easy operation.
Specification
1. Petrol engine power: 9.5kw (Honda GX390)
2. Vibrating frequency: 66.7Hz
3. Exciting force: 31.5kN
4. Working system pressure: 4～5MPa
5. Inserting depth underneath sleeper: 90～110mm
6. Machine weight: 950kg
7. Overall Size: 1430×930×1700mm
8. Working efficiency: 30min/group switches/group machines
Contact information
1. Petrol engine power: 9.5kw (Honda GX390)
2. Vibrating frequency: 66.7Hz
3. Exciting force: 31.5kN
4. Working system pressure: 4～5MPa
5. Inserting depth underneath sleeper: 90～110mm
6. Machine weight: 436kg
7. Overall Size: 1430×930×1700mm
8. Working efficiency: 30min/group switches/group machines
