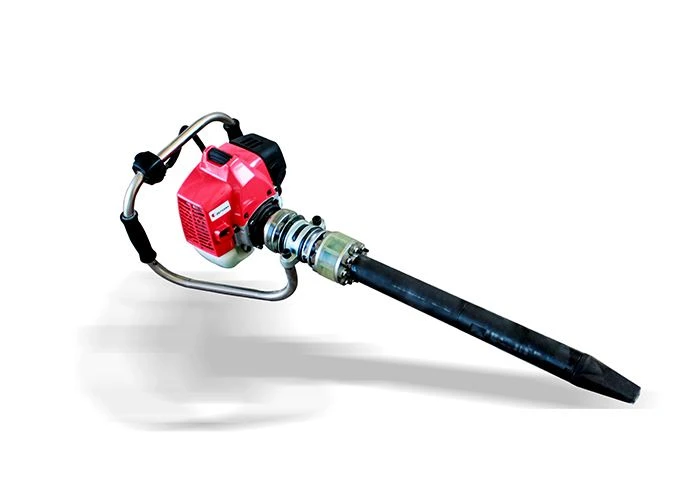

Railway Maintenance Portable Hand-held Ballast Tamping Machine

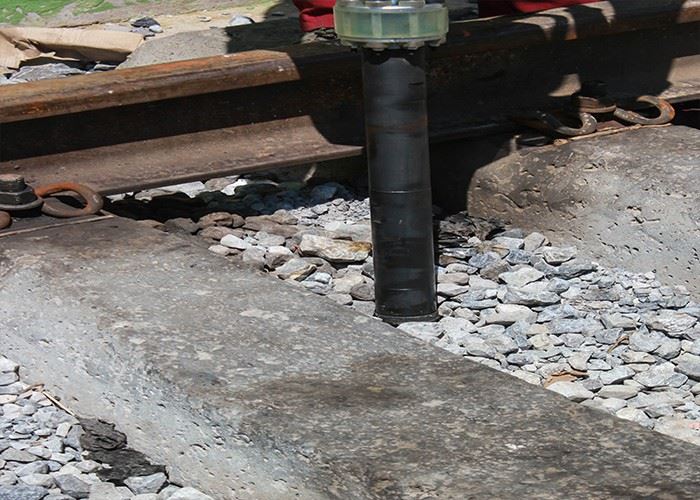

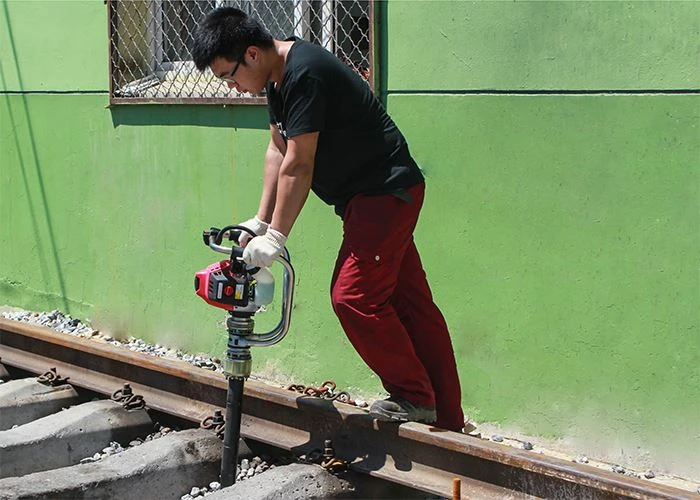

ND-5 Internal combustion rail tamper is a small railway maintenance equipment which suitable for track bed maintenance works. It is mainly used for tamping operation of railway ballast and other granular materials. It has neither long cables nor heavy flexible shafts. It has the features of novel design, reasonable and compact structure, and also easy to use. It is a light weight, on or off track quickly, and easy-to-operate tamping equipment, is especially suitable for switch tamping works.

Send Inquiry

Product Introduction

banner1 Scope of Application

Main Technical Parameters

1. Gasoline Engine Model: two-stroke gasoline engine

2. Rated power: 1.42kW

3. Rated speed: 8500r / min

4. Operation mode: two-stroke all-round

5. Vibrating force: 5000N

6. Max free amplitude: 5mm

7. Vibrating frequency: 117HZ

8. Max impact: 500N

9. Overall size: 1050 × 350 × 350mm

10. Machine weight: 13.5kg

Basic Structure and Working Principle

This machine adopts the design of direct connection between two-stroke petrol engine and tamping rod, which is mainly composed of petrol engine, vibration absorber, transmission shaft, vibrator and handle. The working principle is: petrol engine drives eccentric iron through clutch and soft shaft, produces amplitude to achieve rail tamping operation.

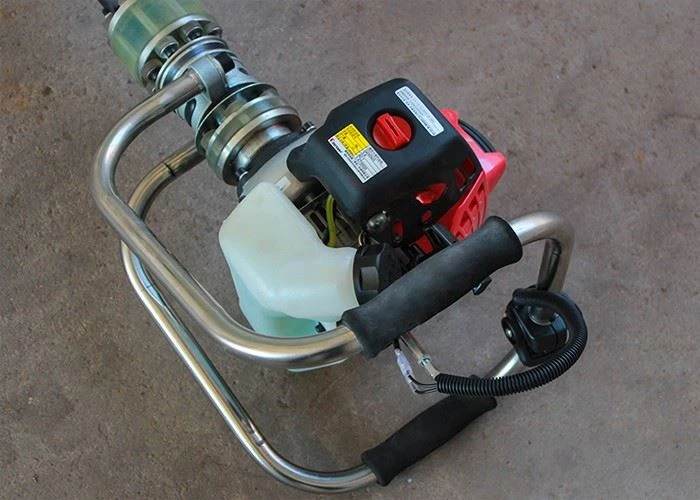

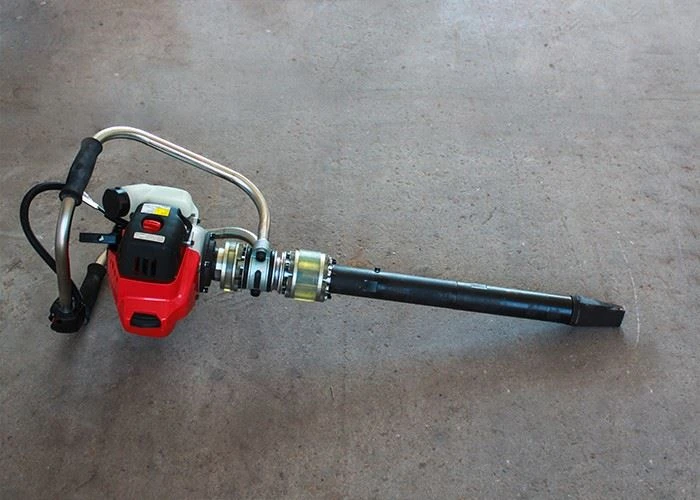

Basic Structure:

1632792176(1)

1. Start Handle 2. Petrol Engine 3. Handle 4. Clutch 5. Upper shock absorber 6. Down shock absorber 7. Middle connecting sleeve 8. Bushing 9. Pick
