DG550*4 Electric Rail Tamper Set
DG550*4 electric rail tamper set is used for equipping a tamping team for four person to tamp different kind of sleepers with ballast or gravel. Completed with 4 vibratory tampers and 1 5kw generator with connecting cable. Can moving freely on the track by the walking frame which can be customized by precise rail gauge.
- Product Introduction

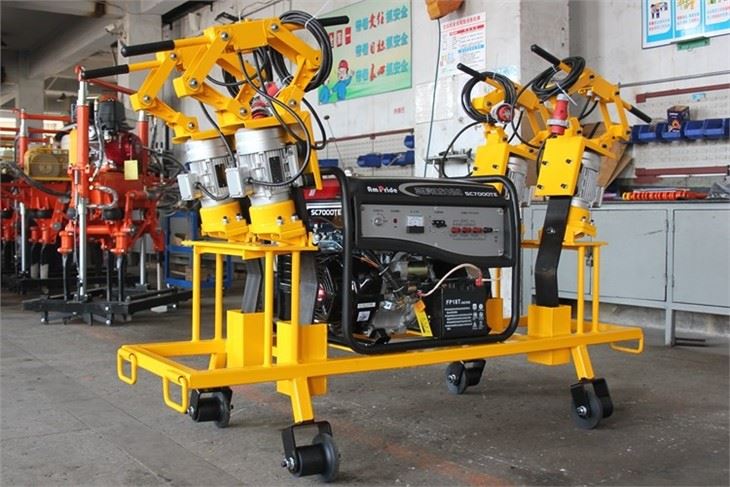

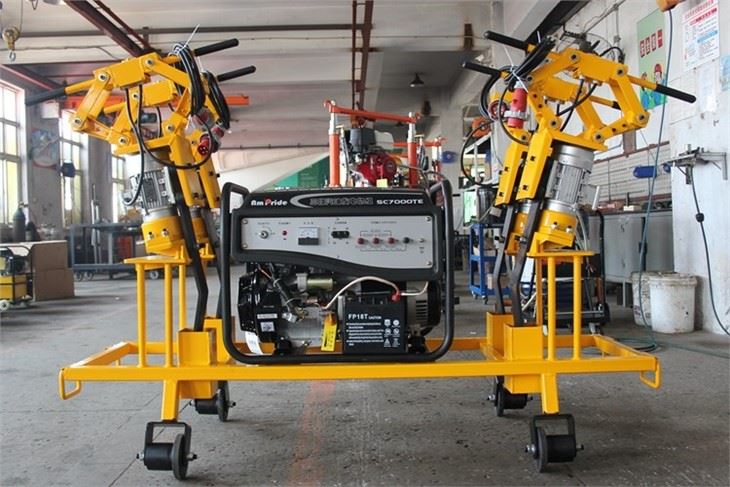

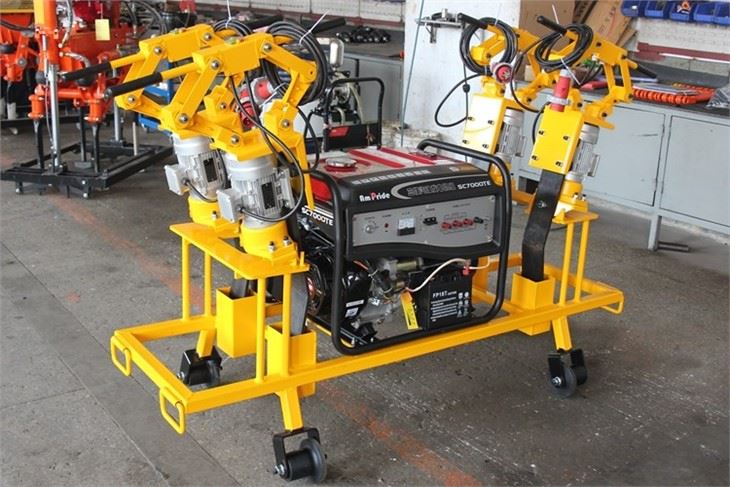

DG550*4 electric rail tamper set
Product Preview
DG550*4 electric rail tamper set is used for equipping a tamping team for four person to tamp different kind of sleepers with ballast or gravel. Completed with 4 vibratory tampers and 1 5kw generator with connecting cable. Can moving freely on the track by the walking frame which can be customized by precise rail gauge.
Features at a Glance
●Easy to carry
● High power generator
●Applicable to various lines
● Multiple working modes
● Customized based on track gauge

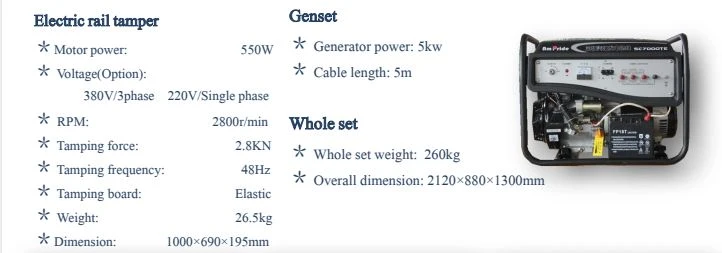

Specification
Contact Information
No | Item | Data |
1 | Motor power | 550W |
2 | Voltage | 380V / 3 phase 220V/Single pahse |
3 | RPM | 2800r/min |
4 | Tamping force | 2.8KN |
5 | Tamping frequency | 48Hz |
6 | Tamping board | Elastic |
7 | Weight | 26.5kg |
8 | Dimension | 1000×690×195mm |
