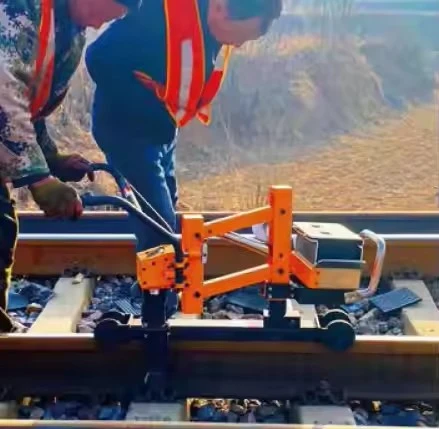

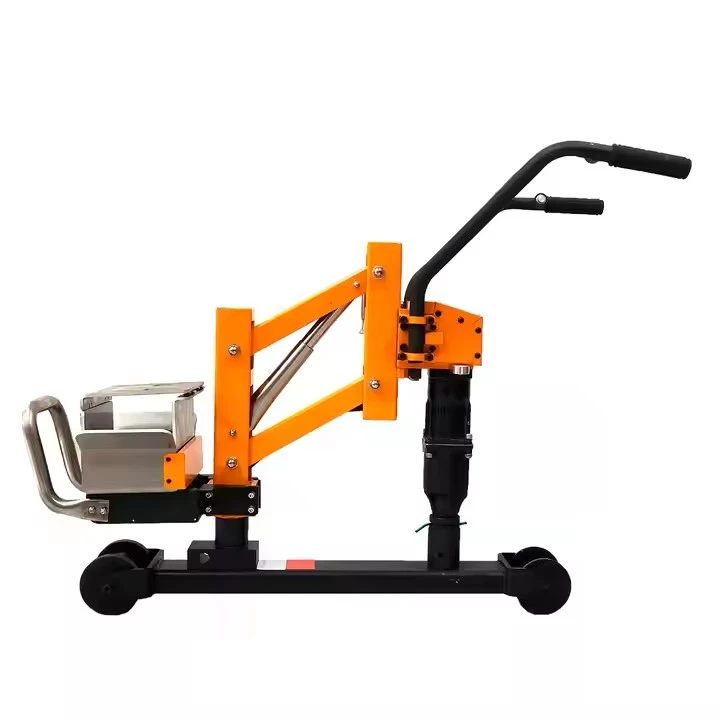

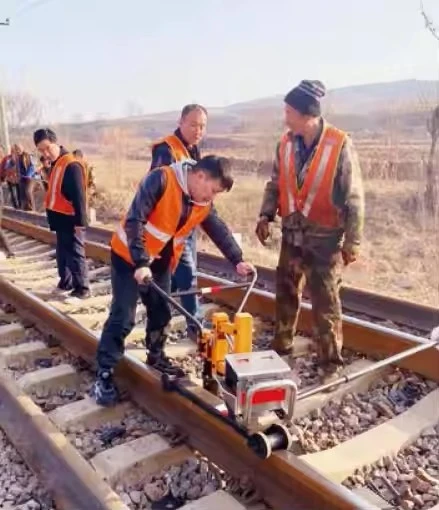

Double Lithium Battery Powered Rail Bolt Wrench Battery Powered Walking Cantilever Wrench
The machine consists of a main unit, control system, battery system, and track walking section. It has a compact structure,is lightweight, flexible to assemble and disassemble, easy to use, and does not emit exhaust gases. It can be transported in separate parts, making it easy for one person to move on site, with each part weighing less than 15 kg. It is suitable for railway laying,maintenance, and emergency repairs, and is specifically designed for various types of bolting work on railways.
- Product Introduction
Scope of Application
The machine consists of a main unit, control system, battery system, and track walking section. It has a compact structure,is lightweight, flexible to assemble and disassemble, easy to use, and does not emit exhaust gases. It can be transported in separate parts, making it easy for one person to move on site, with each part weighing less than 15 kg. It is suitable for railway laying,maintenance, and emergency repairs, and is specifically designed for various types of bolting work on railways.
Features:
The entire machine has undergone rigorous protection rating verification and is capable of operating in rainy and snowy weather conditions.
Professional lithium-ion battery platform for extended runtime operations;
Equipment operates normally under extreme conditions such as high-altitude and sub-zero temperatures;
Lithium-ion batteries have passed safety inspections by national authoritative institutions;
Impact frequency ranges from 0 to 5,000 bpm, with customization available upon request;
Integrated torque can be displayed in real-time and adjusted, featuring torque compensation functionality;
Zero-cost maintenance-free design significantly reduces daily maintenance costs.
Technical Parameters:
Maximum torque (N·m): >3000
Battery pack capacity (Ah): 24-48
Rated voltage (DC V): 36
Operating temperature range (°C): -40~50°C
Motor speed (rpm): 0-3000 (Optional)
Operating range: M6–M30
Impact frequency (bpm): 0–5000 (Optional)
Torque control: Adjustable and controllable
Weight (kg): 35
Spare Parts:
