Electric Rail Tamping Machine

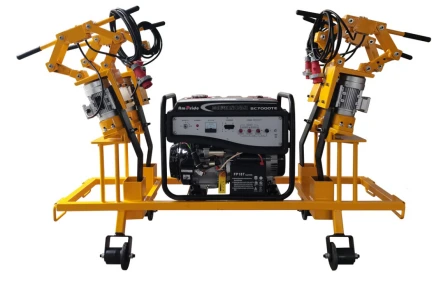

DG-550×4 Electric rail tamper unit is composed of one generator and four electric tampers. One machine can be used for many purposes. DG-550 Electric rail tamper is suitable for tamping ballast in railway maintenance. The machine has the advantages of huge impact force, high working efficiency, convenient operation, compact structure and easy maintenance.
- Product Introduction
Main Technical Parameters
Electric rail tamper:
1. Electric motor：
Power 550W
Voltage 380V
RPM 2880rpm
2. Impact frequency 48HZ
3. Impact force 3kN
4. Tamping pick plate form Flexible
5. Damping material Rubber Block
6. Machine weight 26.5kg/unit
7. Dimension 1000×690×195mm
Generator parameters
Rated Power 6.5KVA
Max. Power 7.25KVA
Power factor 0.9
Rated Frequency 50Hz
Rated Voltage 230/400V
Rated current 9A
Fuel Tank Capacity 25L
Rated speed 3000rpm
Highest altitude 1000m
Maximum ambient temperature 40℃
Machine weight 84kg
Basic Structure and Working Principle
Working Principle: After the motor switched on, the rotor shaft with iron eccentric turn up highly-speed and produce the centrifugal force(disturbances) to change direction, passed to pick plate, pickaxe in vibrational state, which plays the role of track bed ballast tamping.
Basic Structure: 1. Handlebar; 2. Elastic seat; 3. Adjustment Plate; 4. Motor Shell; 5. Pick Plate; 6. Tamping Claw
If you'd like to know more details, please contact me!
