High Work Efficiency Flexible Shaft Rail Tamping Machine
ND-4.2×2 flexible shaft rail tamping machine is suitable for any track line maintenance and ballast tamping operation. It is characterized by light weight and easy operation. Tamping has the advantages of good quality, low failure rate, convenient maintenance, quick on or off track speed and strong applicability. It can do tamping operation not only for standard lines, but also for turnouts. The machine is cost effective and very suitable for the needs of railway ballast tamping operation.
- Product Introduction
Basic Structure and Working Principle
Working Principle: ND4.2×2 Flexible shaft rail tamping machine is powered by Honda gasoline engine. The main shaft of tamping pick is driven by triangle belt to transfer the power to the vibrating body, so that tamping operation can be realized.

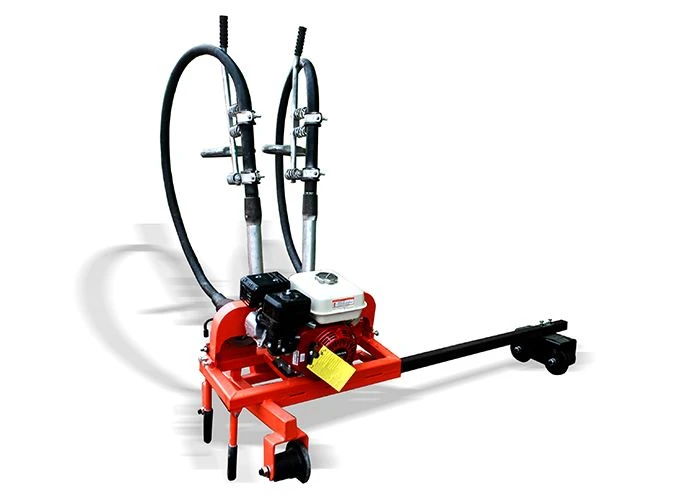

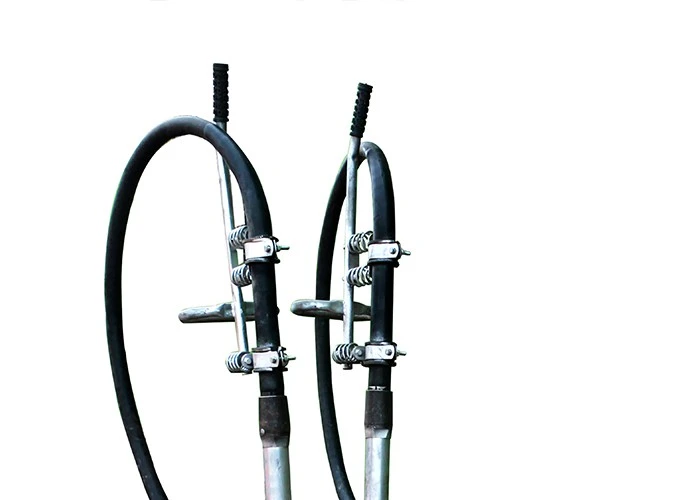

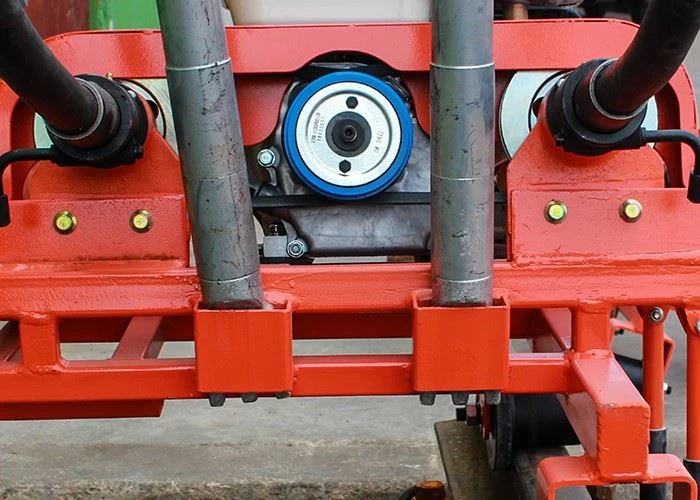

Basic Structure: 1 Vibrator, 2 Gasoline engine, 3 Belt cover, 4 Belt wheel, 5 Underframe, 6 Walking wheel, 7 Supporting rod
Main Technical Parameters
1. Gasoline engine: GX160
2. Gasoline engine power: 4.0KW
3. Speed of engine: 3600r / min
4. Vibration times: 3000 times / min
5. Amplitude: 1.2mm
6. Machine weight: 63.5 kg
