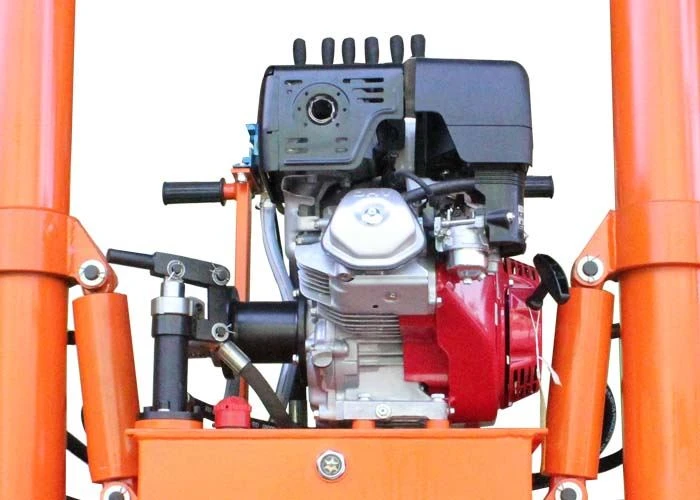

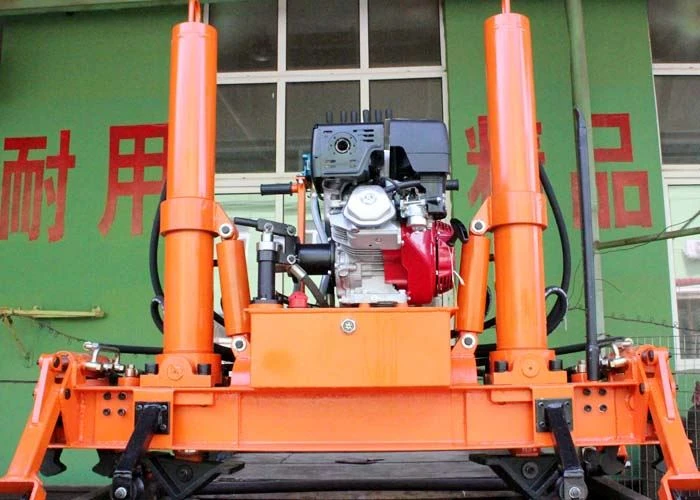

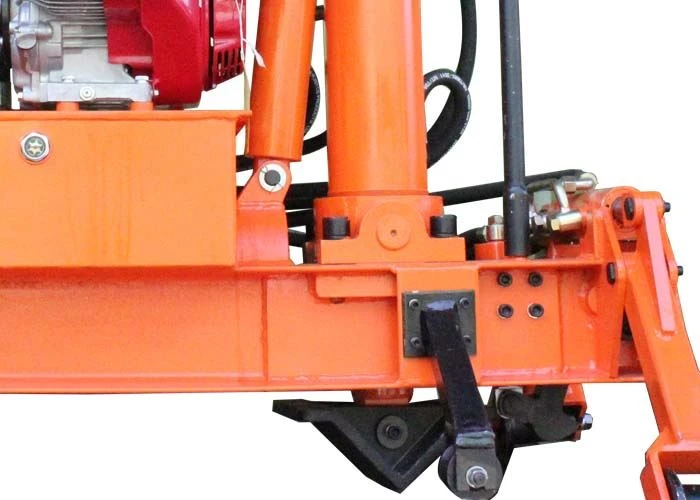

Hydraulic Rail Lifting And Lining Machine
It’s a special tool employed in the lifting & lining operation of railway overhaul、medium maintenance and track bed maintenance. It’s suitable for rail of 43kg/m-75kg/m lifting & lining operation. By using it, the rail can be lifted as well as level regulated. It possesses features of high working efficiency, simple manipulation, light weight, reduction of labor intensity, safety & reliability and wide application.
- Product Introduction
A. Scope of application
It’s a special tool employed in the lifting & lining operation of railway overhaul、medium maintenance and track bed maintenance. It’s suitable for rail of 43kg/m-75kg/m lifting &lining operation. By using it, the rail can be lifted as well as level regulated. It possesses features of high working efficiency, simple manipulation, light weight, reduction of labor intensity, safety & reliability and wide application.
B. main technical data
1、rated rail lifting force： 150kN×2
2、up-down cylinder stroke：800mm
3、rated rail lifting force： 200kN
4、lining amount： ≥150mm
5、system working pressure：16MPa
6、hand pump operating force：350N
7、engine power： 9.5kW
8、overall size： 1750×850×1510
9、machine weight： 588kg
10、rail gauge： 1435mm / This implement uses flat feet
