Rail Grinding Machine For Sale

Application

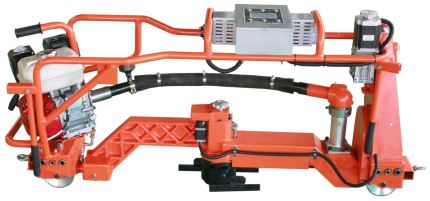

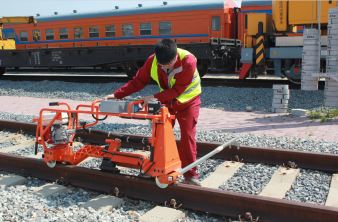

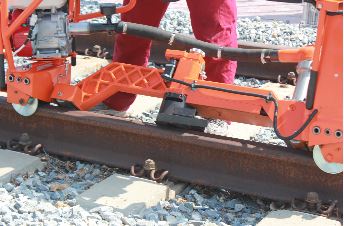

NGM-4.8 digital display rail grinding machine is suitable for grinding 43kg/m-75kg/m rail weld, uneven joint, rail side fat edge, rail surface welding repair and other parts.

Functions

1. The machine adopts single chip microcomputer controller, simple operation, digital display feed and rotation angle, with the characteristics of accurate control, high grinding accuracy.

2. The feeding device is driven by stepper motor, with the characteristics of digital display of feed rate, accurate control, adjustable feed precision and high grinding precision.

3. The angle control device is driven by stepper motor, with digital display of rotation angle, adjustable rotation accuracy and precise control. It changes the previous manual rotation operation mode, reduces the labor intensity of workers, and improves the operation efficiency and standardized grinding.

4. The power supply of the whole machine adopts the lifelong maintenance free power supply, which has the characteristics of lifelong maintenance free, fast charging speed, strong large current discharge ability, high energy conversion efficiency, small process loss, high power density, good ultra-low temperature characteristics, long cycle life, no charging memory effect, etc.

5. The machine is equipped with one key reset function. After grinding, the feed and rotating beam are reset to the initial state. The operation is simple and the operation efficiency is improved.

6. The machine can grind both sides of the rail ± 90 ° with large inclination angle.

7. With the advantages of high precision, high precision and high efficiency in grinding operation, good grinding quality, simple operation and convenient access, it is a necessary tool for railway maintenance overhaul, maintenance and emergency repair.

Specification

1. Gasoline engine:Model: GX200

RPM: ≥3600r/min

Power: 4.8kW

2. Grinding stone: φ125×65×M20

Linear speed: ≥35m/s

3. Shaft RPM: 4500r/min

4. Tilting angle: ±90°

5. Tilting angle accuracy: 0.5°/1.0°/2.0°

3.0°/4.0°/5.0°

6. Grinding stone stroke: 45mm

7. Feeding accuracy: 0.05mm/0.1mm/0.15mm/0.2mm/0.25mm/0.3mm

8. Wheel distance: 1000mm

9. Weight: 90kg

10. Dimension: 1500×450×750mm

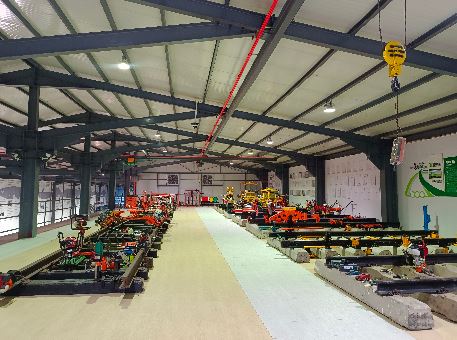

Jinzhou Tiegong Railway Maintenance Machinery Co., Ltd was established in 2 0 0 1, is a professional manufacturer engaged in the research & development, production, sales and service of rail drilling, cutting, tamping, grinding machines and other series of railway equipment. The company is located in Jinzhou city of Liaoning Province with convenient transportation. Depending on our excellent technical team, we have obtained 26 patent certificates for our equipment, such as intelligent rail tamping machine unit, battery rail drilling machine, multi-functional switch rail grinding machine and automatic fat edge cutting machine. In recent years, our company has introduced a series of advanced equipment for production, including laser cutting machine, C N C machining center, and welding robot. In addition, our machines have been obtained I S O 9 0 0 1, C E and C R C C Certificates. Selling well in all cities and provinces of our country, our products also have been exported to 45 countries and regions around the world. We also welcome O E M and O D M orders, you can select a current product from our catalog or seek engineering assistance from our technical experts, our sales manager will help you with quality service. Through cooperation with Foreign Project Department of China Railways, our products have been used in the new railway line projects of many neighboring countries, and have made an outstanding contribution to the One Belt One Road policy of Chinese government.
