GYM-1.2 Zero Gravity Lithium Battery Rail Waist Grinding Machine

The GYM-1.2 Zero Gravity Lithium Battery Rail Waist Grinding Machine is designed with zero gravity and lithium battery as power source, which makes it easier for workers to operate. It is an ideal rail waist grinding equipment for railway maintenance. It is suitable for grinding before railway laying, subway maintenance and grinding before welding and bonding insulation joint construction in Metro maintenance. Rail waist grinding is one of the most important tasks in rail welding. The work used to be carried out mainly by hand-held electric grinder or angle grinder. It will lead to high labor intensity, low working efficiency, slow speed, poor surface quality, serious pollution, and labor-consuming and laborious completion etc. This machine adopts lithium battery as power source, so no generator is needed for operation. It is suitable for various rails from 50kg/m to 75kg/m, and can be used for grinding all welding scars of thermit welding and flash welding.

Main Technical Parameters

1. Motor type: DC brushless motor

2. Rated output power of motor: 1.2kw

3. Rated voltage of motor: 36V

4. Capacity of lithium battery: 24AH

5. Charging time: 6-8 hours

6. Charging voltage: 42V

7. Spindle speed of grinding wheel: 4500r/min

8. Grinding wheel specification: ∮150×20×20 (45m/s)

9. Machine weight: 18.9kg

10. Overall dimension: 800 × 400 × 500mm

Model

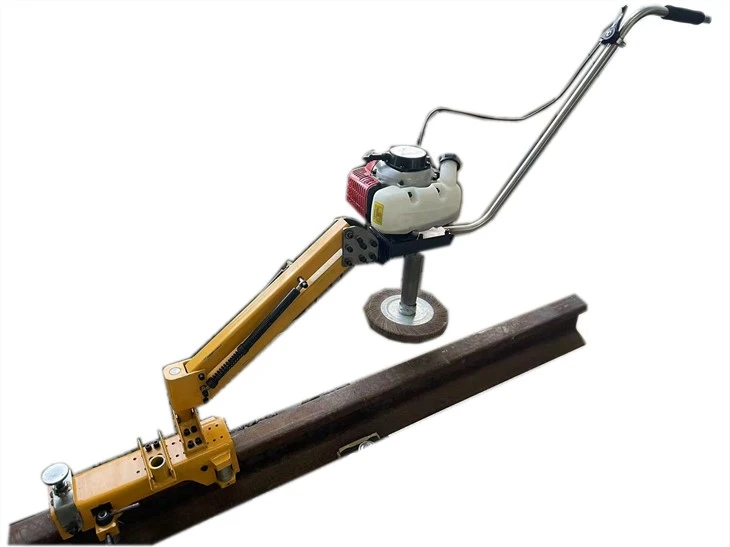

Single work-arm

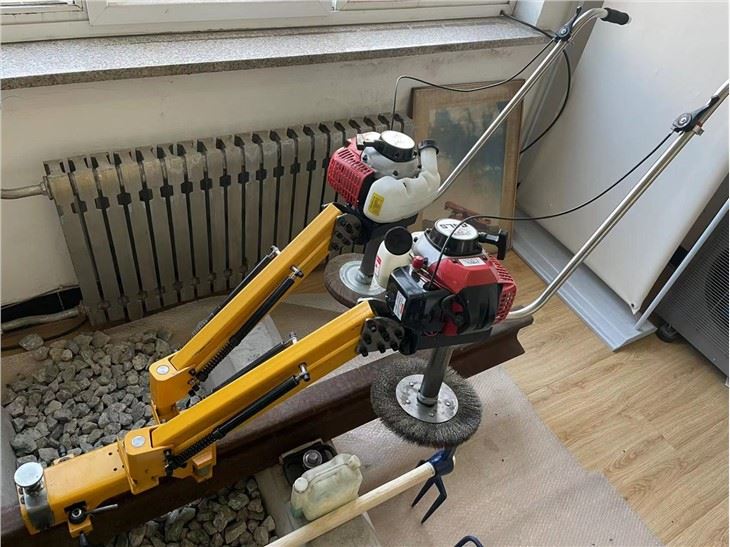

Double work arm
