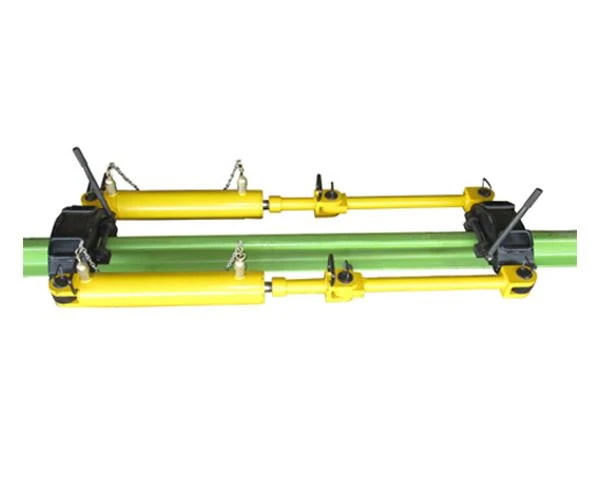

Rail Tensor (Rail Stressing Equipment Rail Puller Rail Stressor)

Hydraulic rail tensor is a piece of equipment used for stress relief of seamless rail lines and long rail laying. Its design feature is that it can forcibly stretch the rail in a zero-stress state to a length that locks the rail temperature, thereby ensuring the quality and stability of long rail laying.

This device has the following features:

1. Adopting a hydraulic system, the operation is simple and convenient. The operator only needs to make simple settings and adjustments to complete the stretching operation.

2. The equipment has a compact structure and is easy to move, and can be used in different construction sites and conditions.

3. Precise stretching control system can effectively control the stretching strength and stretching speed to ensure the accuracy and stability of stretching.

The hydraulic rail rail tensor has a wide range of applications and is suitable for stress relief of seamless rail lines and long rail laying in various highway, railway, subway, bridge and other projects.

When using a hydraulic rail rail tensor to stretch rails, you need to pay attention to the following points:

1. The equipment needs to be inspected and maintained before operation to ensure that the equipment is in normal operating condition.

2. Before stretching operation, the stretching strength and stretching speed need to be set and adjusted according to the actual situation to ensure the stability and reliability of the stretching effect.

3. Operators need to have relevant training and certificates to ensure operating skills and safety.

In summary, the hydraulic rail rail tensor is a reliable equipment with a wide range of applications and can effectively solve the problems of stress relief in seamless rail lines and long rail laying. We should make full use of the advantages of this equipment during construction, improve construction quality and efficiency, and make our own contribution to the successful implementation of the project.





Our Advantages:



The main technical parameters

1. Rated working pressure 57Mpa

2. Maximum tensile force 2×450kN

3. Maximum stroke of working cylinder ≥500mm

4. The center distance between the two tie rods is 535mm

5. Locking method: Inclined iron clamps both sides of the rail head

6. Internal combustion pump station Honda GXV160

Power: 4.0kW

Flow: ≥3L/min

Net weight: 75Kg

Electric pump station 380V

Power: 3.0kW

Flow: ≥3L/mi

Net weight: 85Kg

7. Size 1300×690×240mm

8. Unit weight 283kg (excluding pump station)
