Rail Gap Adjuster

Rail Gap Adjuster

The rail gap adjuster is a piece of equipment professionally used to adjust rail gaps.

  • Product Introduction

The rail gap adjuster is a piece of equipment professionally used to correct railway tracks. It can quickly and efficiently adjust rail gaps and is suitable for adjusting rail gaps on all types of rail lines. This equipment realizes rail gap adjustment through the hydraulic system. It is easy to operate and has high work efficiency. It also has an anti-"stuck" function. It is safe and reliable to use and is very popular among users.

The advantages of hydraulic rail gap adjusters are very obvious. First of all, the equipment uses a hydraulic system, which is easy to operate and can be easily mastered even without professional knowledge. Secondly, through the two functions of pushing and pulling the rail gap, the rail gap can be adjusted quickly, the work efficiency is high, and a lot of time and labor costs can be saved. Finally, the hydraulic rail gap adjuster also has an anti-"stuck" function, ensuring the safety of use and giving users no worries.

Hydraulic rail gap adjusters have a wide range of applications. It can be used for line adjustment of various types of railway rails, such as ordinary rails, narrow gauges, high-speed rails, etc. When building new railway lines, hydraulic rail gap adjusters are also one of the necessary equipment. At the same time, the equipment can also be used for maintenance and renovation of railway contours, which can effectively ensure the safety and smoothness of railway transportation.

In general, the hydraulic rail gap adjuster is a very practical device that plays a vital role in the maintenance and adjustment of railway rails. It has the advantages of easy operation, high work efficiency, safety and reliability, etc. It can exert its unique advantages in various occasions. I believe that hydraulic rail gap adjusters will become an integral part of the field of railway track maintenance and adjustment.



product-700-500

3

4

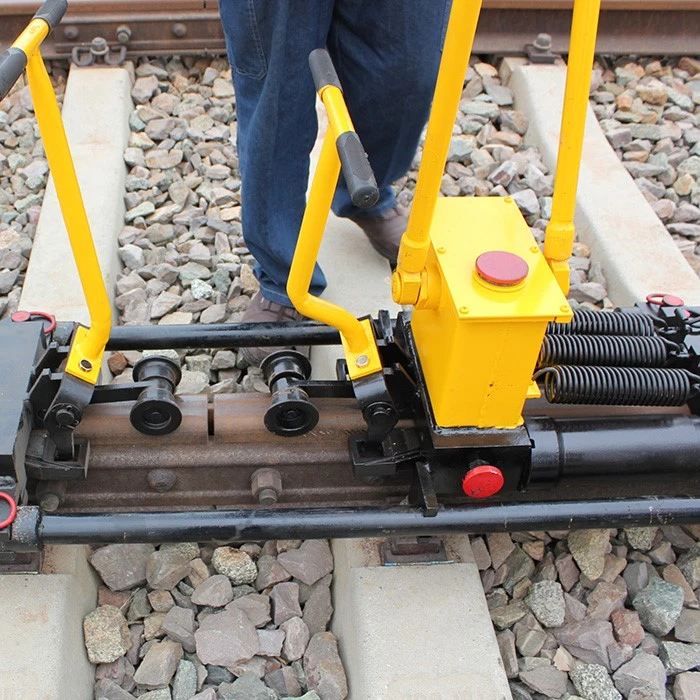

Hydraulic Rail Adjuster

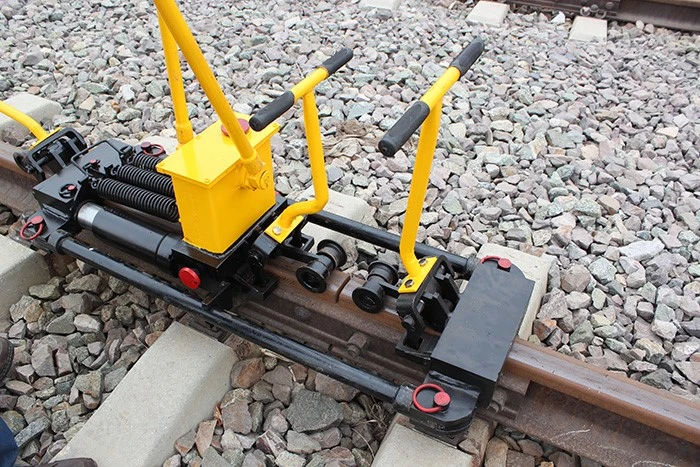

YTF-400II rail gap adjusting machine

YTF-400 tensor

Ours Advantages:

advantages

1708312811974

service and networks

1691552248455



Technical Parameter

1. Rated pulling and pushing force: 400kN

2. Working stroke of cylinder piston: 140mm

3. Rated pressure : 52Mpa

4. No load efficiency ; ≥ 2.0mm/ time

5. Handle operating torque: ≤450N · M

6.Net weight : 138kg

7.Dimensions: 1530x422x500mm
