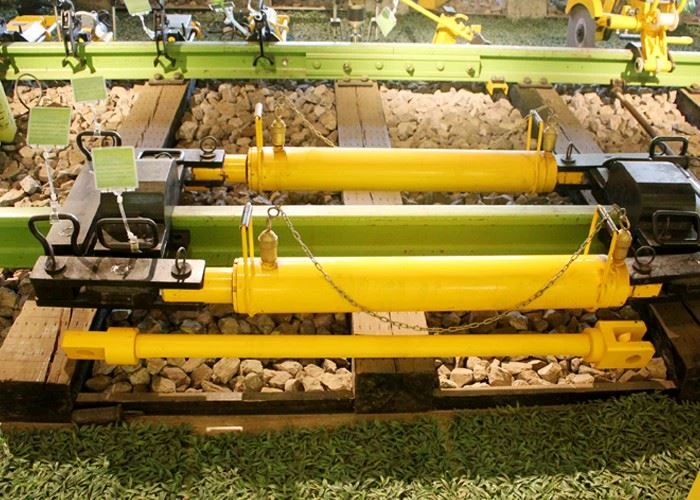

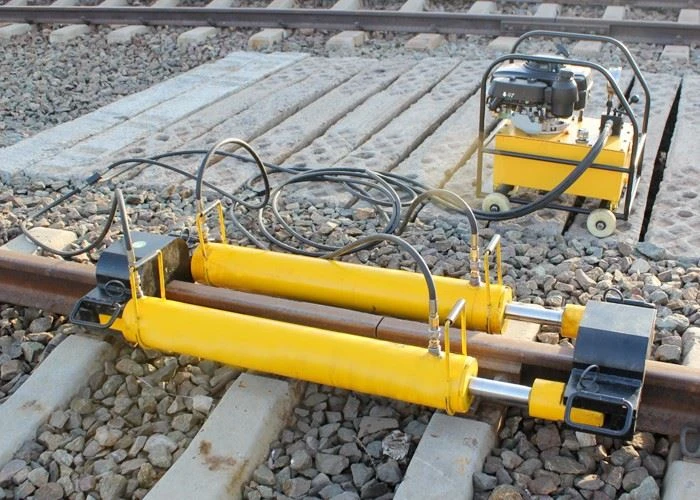

Hydraulic Rail Stressor Rail Tensor
YLS-600 hydraulic rail stressor can not only be used for seamless line rail fracture repair, but also can be used for seamless all the way to stress relief and ordinary lines into sections to adjust the rail seam, and is suitable for 43kg/m-75kg/m rail type. The equipment has excellent performance, reasonable structure and reliable quality. Compared with similar products, it has the features of unique conception, light body and easy operation. It is very suitable for the needs of railway maintenance operations.
- Product Introduction
The main technical parameters
1, The maximum tensile force: 600kN
2, The rated working pressure: 48MPa
3, The maximum thrust: 150kN
4, The maximum thrust working pressure: 10MPa
5, The working stroke: 400mm
6, Locking mode: the inclined iron clamped on both sides of the rail head
7, The oil pump flow rate ≥ 3L / min
8, Weight: ≤ 245kg
9,Pump station weight:68kg
The basic structure: 1, pin 2, short connection 3, clamp specific 4, back oblique iron axis 5, cylinder 6, moving handle 7, pump station
