rail Lithium Bolt Oiler

  Lithium Bolt Oiler



Due to the long time in the sun and rain environment, bolts are easy to produce rust and corrosion, fracture conditions, thus creating a security risk, in order to avoid this situation, Jinzhou tiegong railway maintenance machinery Co., Ltd, developed a new 'automatic lithium bolt oiler', for the railway safety escort!

It uses the lithium battery drive to achieve the automatic walking on the track, and increase the remote control mode, no power supply power or in case of emergency can be manually implemented. Improve the level of mechanisation of railway maintenance, do a good job in the daily maintenance of track parts will play a good role in promoting, an hour can be coated with oil 4000 + bolts, can be run for a long time (3 hours), etc. Advantages of the engineering department is indispensable to the maintenance of equipment.

This machine is suitable for sleeper rail bolt lubricator operation. It is compact in structure and novel in design. It has dual-mode control mode (manual or automatic oiling). It can oil two vertical bolts in one operation, with high efficiency. It is driven by lithium battery, light in weight, safe and reliable, low in noise, environmental protection, convenient in going up and down. It is an indispensable equipment for public works department.



Technical Parameters

1. Working pressure: 0.35-0.4mpa

2. Oil amount: ≤0.12mL/piece

3. Tank capacity: 10L

4. Working mode: hand push

5. Overall dimension: 1000 × 260 × 900mm

6.Weight:20kg

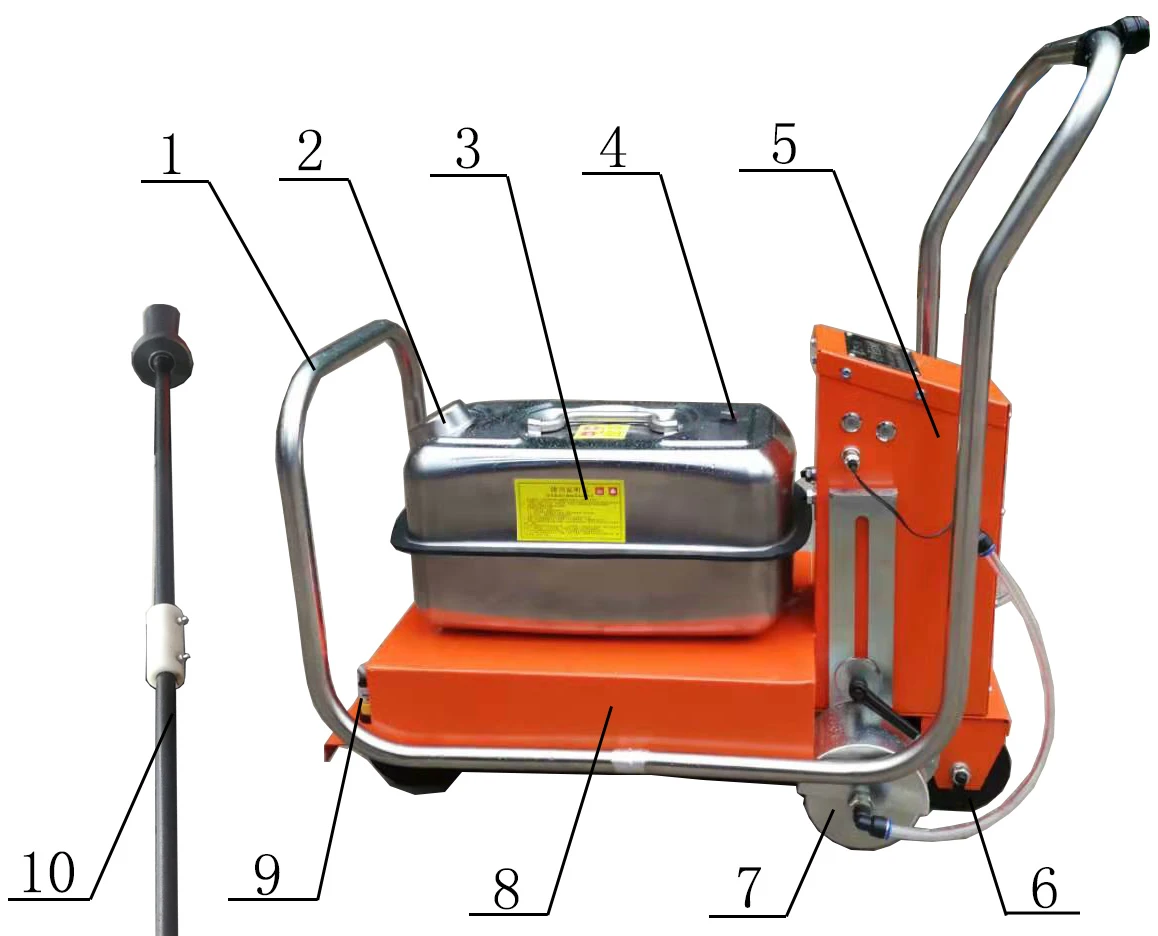

Basic structure







1 Frame, 2 Fuel tank filler, 3 Fuel tank, 4 Fuel tank drain, 5 Control assembly, 6 Walking wheels, 7 Oiling device, 8 Battery box, 9 Light sensor, 10 Auxiliary support,







Maintenance of machines
1. This equipment uses 48V lithium battery, if the battery voltage is lower than 36V must be charged in time.

2.Add the special anti-rust oil for rail bolts to pay attention to, do not add impurities into the oil tank. If there are impurities into the tank, please do not turn on the power switch, must be cleaned inside the tank to prevent blocking the pump.

3. This product must be stored in a dry and ventilated place, it is strictly prohibited to store the damp and uncovered place, this machine is prohibited from rain or exposure to the sun, away from all sources of ignition.

4. Prohibit non-professionals to dismantle the machine, if the dismantling of the machine caused by damage to the machine manufacturers are not responsible for causing casualties and the factory has nothing to do.
