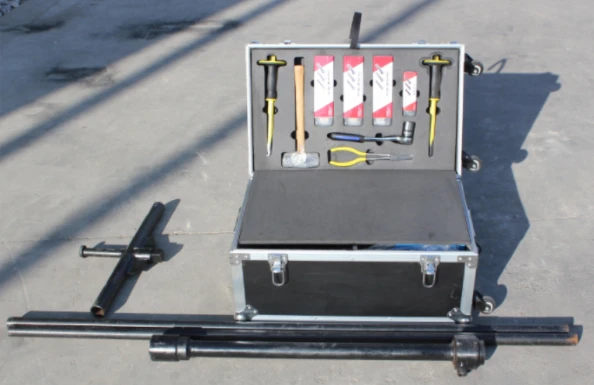

Anchor Bolt Repair Kits

Anchor bolt repair kits is a special equipment used for track bed repair. It is mainly used to replace damaged nylon casings and is one of the indispensable equipment for the railway engineering department. The equipment adopts advanced technology, has reasonable structure and simple operation. It has the following advantages:

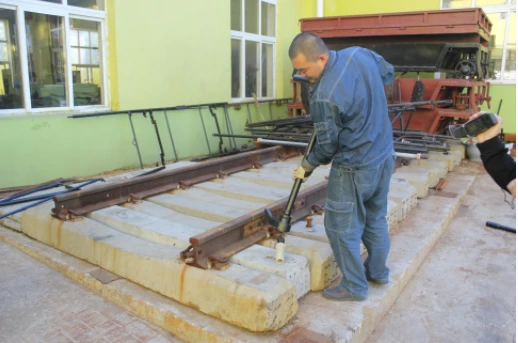

First of all, the operation of the device is very simple. To use this device, just place it on the nylon sleeve that needs to be replaced, then use a cutter to cut it into grooves, and finally use a special wrench to twist it to easily remove it. This process is very simple and easy to operate, which reduces the labor intensity of workers and improves work efficiency.

Secondly, the device has high technical performance. This equipment uses the latest cutting knife principle. Since the nylon sleeve is a relatively hard material, the original disassembly process requires strength, and the cutter technology used by this equipment can cut it into grooves, making the disassembly process easier and more convenient.

Finally, the device is suitable for a wide range of applications. Damage to nylon casing is a common problem in railway engineering, but anchor bolt repair kits can deal with it very effectively. Therefore, this equipment can be widely used in various railway projects to improve the quality of lines and ensure the safety of driving.

All in all, the anchor bolt repair kits is a very good piece of equipment. It has high technical performance and easy operation, and plays a very important role in railway engineering.

The main technical parameters

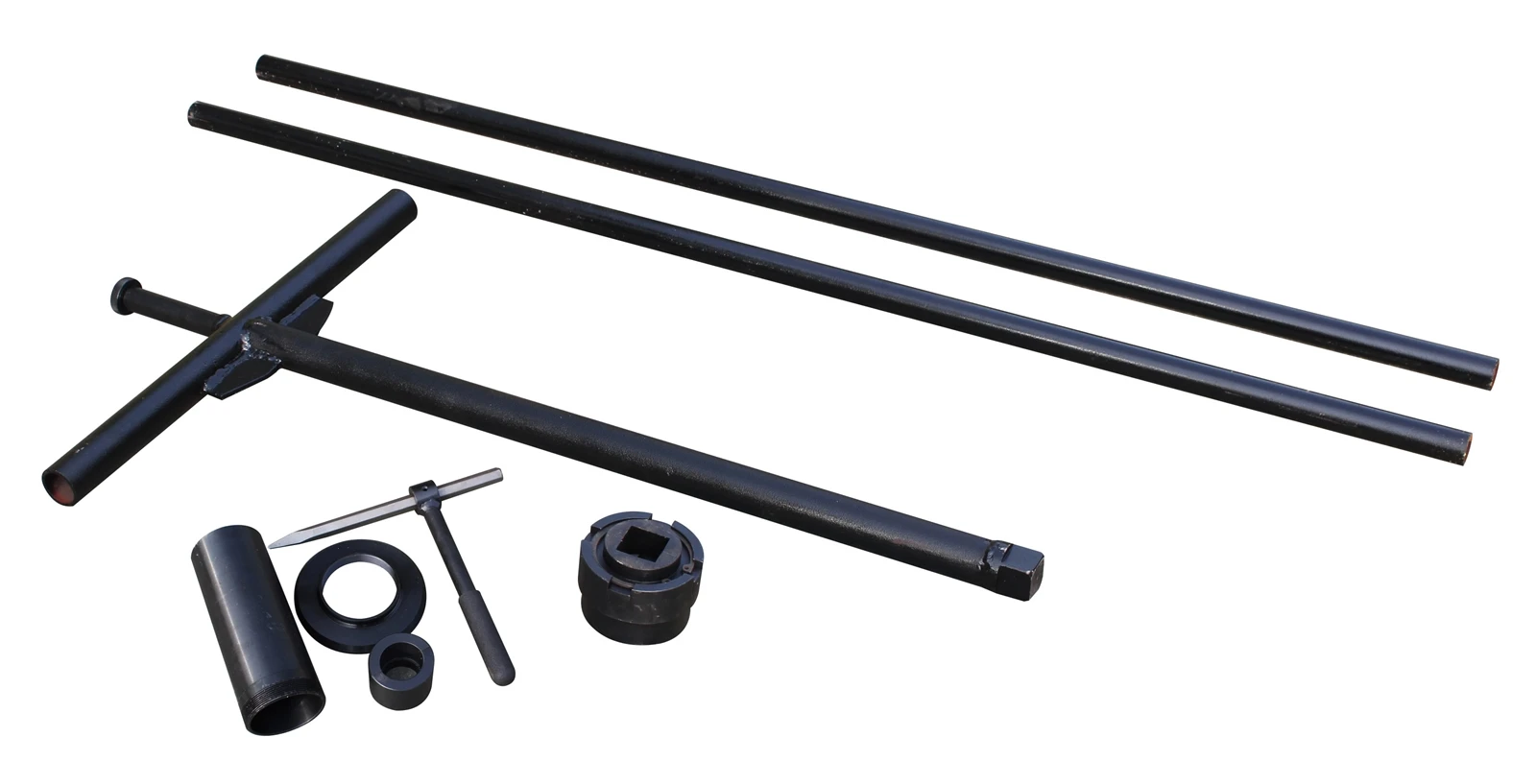

1. Manual wrench

Torque: ≥2500 N·m

Overall dimensions: 700×400×300mm (including accessories)

2. Nylon casing knife selection standards (the following tools are optional for users):

No. 2 knife (user optional): suitable for failed nylon sleeves with an outer diameter of ∮48 or above

No. 3 knife (user optional): Applicable to ∮48 and above, after the No. 2 nylon knife set fails to be taken out (it is a tool that matches the No. 2 knife)

W-7 knife (user optional): suitable for failed nylon sleeves with outer diameter ∮45

W-8I knife (user optional): suitable for failed nylon sleeves with an outer diameter of ∮38

W-8II knife (user optional): suitable for failed nylon sleeves with outer diameter ∮38 (used in conjunction with W-8I knife)

Double block cutter (user optional): suitable for outer diameter ∮32 (black nylon sleeve)
