Customized Cable Drum Stand

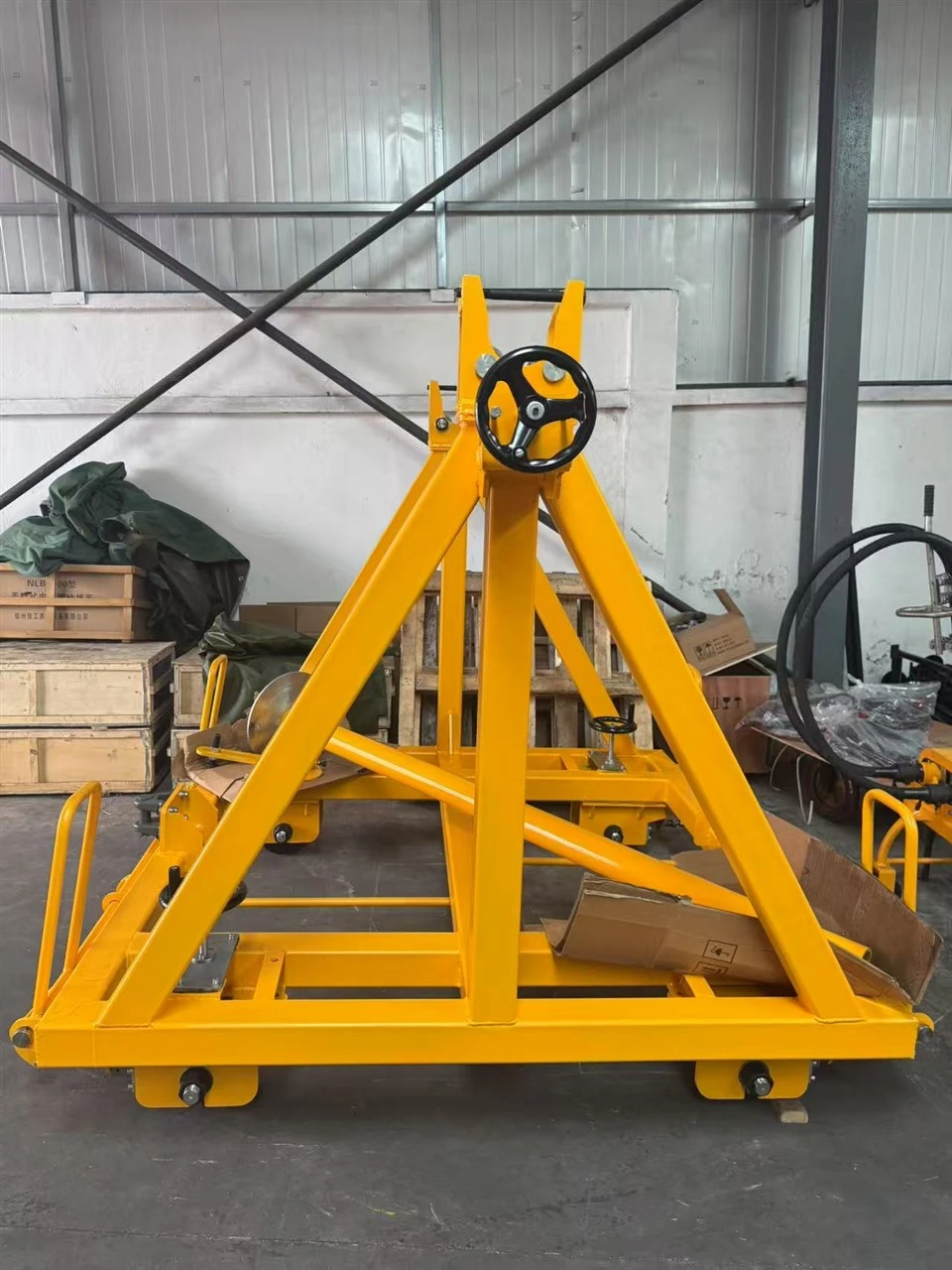

CDRT-01 cable drum stand is suitable for 5 tons of cable shafts and is equipped with wheels. It can be driven by a tractor and run on the rails of 1435 gauge track. After removing the wheels, the spool bracket can be placed on the ground for use; it can also be placed on a flat plate, locked with 4 bolts, and transported by a flat car.
- Product Introduction
CDRT-01 cable drum stand is suitable for 5 tons of cable shafts and is equipped with wheels. It can be driven by a tractor and run on the rails of 1435 gauge track. After removing the wheels, the spool bracket can be placed on the ground for use; it can also be placed on a flat plate, locked with 4 bolts, and transported by a flat car.
The spool crossbar is equipped with a brake disc. When the spool needs to stop rotating, rotate the hand wheel and the friction block will tighten the brake disc to stop it from rotating.
Spool pulling disc, the bolt position can be moved up and down.The spool frame is equipped with a braking device. When braking is required, the push rod is pulled backward to achieve braking; when the push rod is released, the push rod returns automatically by the spring. The screw adjusts the gap between the brake pad and the wheel.
Technical Specification
支架重量: 740kg
Weight
外形尺寸: 2180×2530×1951mm
Dimension
横杆直径: Φ102
Cross bar diameter
