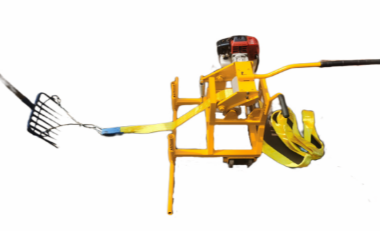

Internal Combustion Slope Protection And Shaping Machine
internal combustion slope protection and shaping machine is suitable for slope protection and shaping treatment on both sides of the railway and pillow correction. The machine has the advantages of exquisite shape, convenient use, simple operation and high work efficiency, which ensures the requirements of slope protection quality.
- Product Introduction
1, Scope of application
Hpzx-1.1 internal combustion slope protection and shaping machine is suitable for slope protection and shaping treatment on both sides of the railway and pillow correction. The machine has the advantages of exquisite shape, convenient use, simple operation and high work efficiency, which ensures the requirements of slope protection quality.
2, Main technical parameters
1. Power: 1E40F gasoline engine
2. Power: 1.1kw
3. Speed: gasoline engine speed 8000r / min
Working wheel 260r / min
4. Overall dimension: 1080 × six hundred × six hundred and sixty-five
5. Overall weight: 50 kg (rake 4kg)
3, Basic structure and working principle
Working principle: use the power of gasoline engine to increase the torque through the reduction gearbox to produce rotary motion, that is, the movement of driving wheel. At the same time, press down the operating handle to drive the driven wheel and the tension belt (tension and friction) to make the tension belt move in a straight line, that is, the track smashing fork moves in translation.
Basic structure:
1. Main motion - composed of internal combustion engine 1 → reduction gearbox 2 → driving wheel 3.
2. Linear motion - composed of driven wheel 4 → stop wheel 5 → tension belt 6.
3. Track smashing fork movement - composed of track smashing fork 7.
4. The main structure is composed of frame 8, feet 9.....
