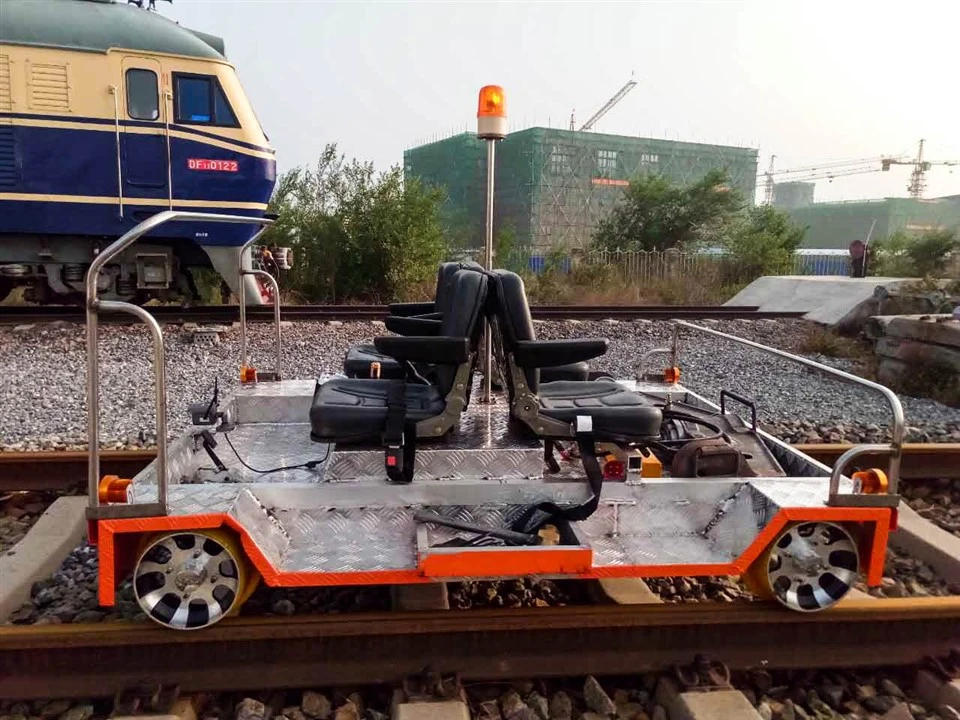

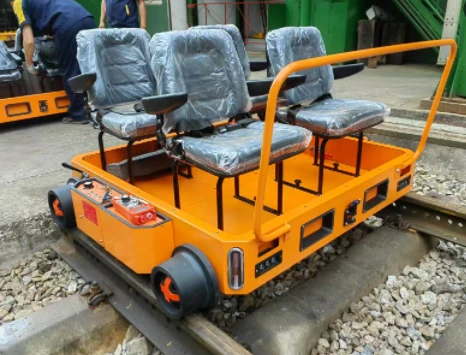

Light Weight Lithium Battery Rail Inspection Trolley

This trolley is suitable for transporting small tools or persons on the rail. It is suitable for 1435mm gauge （Can also be designed according to customer requirements）. It must be driven on the blocked track or on the line without train. This trolley is equipped with lithium battery as the power source. Because this trolley is not a railway rail car, it is not easy to drive too fast, and the driving speed shall not exceed 20km/h. Please pay more attention to it. The running speed of curve and turnout area shall not exceed 10km/h. if danger occurs due to over speed, the consequence shall be borne by oneself. Equipped with magnetic remote control, nylon wheels, detachable.

Send Inquiry

Product Introduction

Working Principle and Basic Structure

Working Principle: With the lithium battery as the power source, through the driver, controller and governor, the direct current motor is controlled to rotate in the positive and negative directions, and through the chain drive, the running wheel is driven to rotate, so as to achieve the purpose of the flat car running on the rail.

The trolley is equipped with two sets of brake systems, oil brake (disc brake) and hand brake, so as to achieve the purpose of safe and reliable braking.

Technical Parameters

1. Driving speed: ≤ 20Km/h (driving over the speed limit is not allowed)

2. Motor type: brushless reducer motor

3. Rated output power of motor: 1kw

4. Rated voltage of motor: 60V

5. capacity of lithium battery: 85AH (optional number of lithium batteries)

6. Charging time: 6-8 hours

7. Output voltage: AC22D ± 10% V50-60HZ

8. Material:Aluminum alloy

9. One charge drive distance: ≥60km

10. Braking distance: 10-15m

11. Loading capacity: ≤ 500kg
