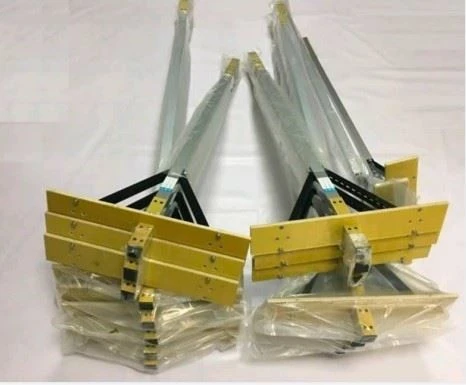

Railway Tools Railway Square Ruler

The railway square ruler is a special measuring tool mainly used to test the right-angle misalignment of the rails of the railway line.

Send Inquiry

Product Introduction

The railway square ruler is a special measuring tool mainly used to test the right-angle misalignment of the rails of the railway line.

Technical parameter:

Ruler body size: (1720*35*25)mm

The verticality error between the working bus of the two probes and the ruler body: ≤0.2mm

Insulation test board size: (500*90*10)mm

Product weight: 3kg

Main body material: aluminum alloy

Features:

● The ruler body is designed with a mouth-shaped structure, which is light and practical, and has good bending resistance. ● Made of yellow epoxy glass fiber board material (commonly known as FR4), mechanical strength at minus 40℃-120℃

High energy, stable size and no deformation, stable electrical insulation performance in high humidity environment.

● The probe and the rail surface are made of imported materials. ● The probe is made of material with technical performance equivalent to high carbon alloy tool steel, which ensures strength and durability.
