Concrete Sleeper
Concrete sleeper is a concrete product used as railway sleeper. It has the advantages of saving wood, long service life, good quality of laying track, less maintenance work and low cost. It is significantly better than wood in high-speed, heavy-duty and seamless railway applications.
- Product Introduction

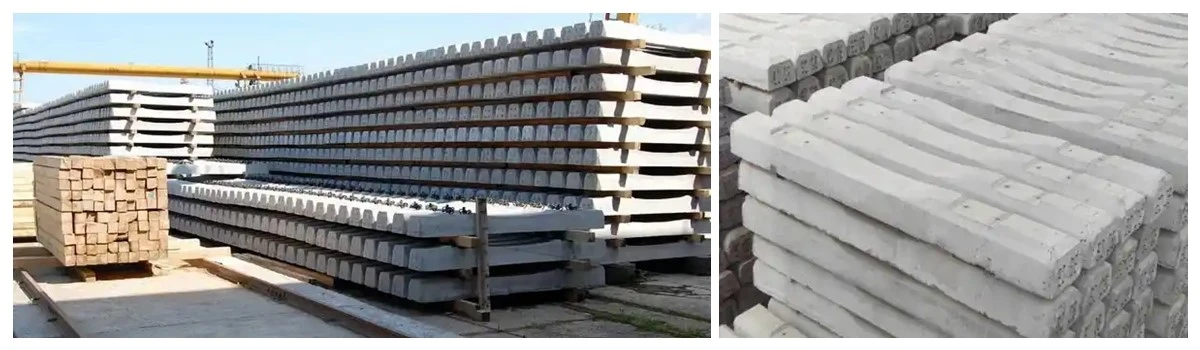

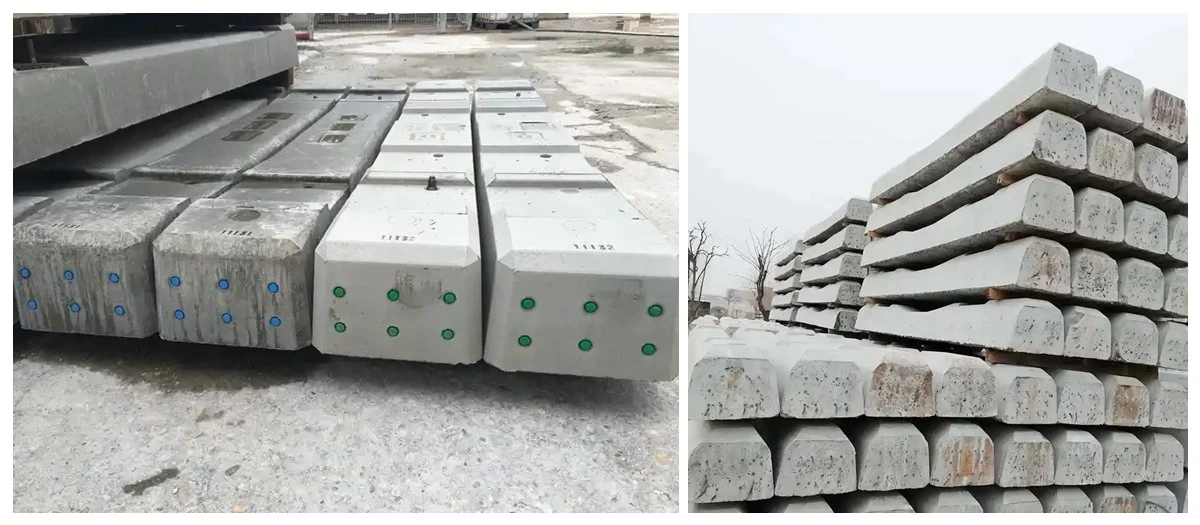

concrete sleeper
Concrete sleeper is made of concrete, steel, combination, hard appearance, long service life. Cement sleepers can be divided into U-ring and bolt-plate type cement sleepers according to the installation method. The sleeper of U-ring is easy to install, just place the rail between the two U-rings, put the rubber pad underneath, and then use a sledge-hammer to smash the U-ring to hold the rail. Cement sleeper bolt clamping plate is to use T-bolt through the hole reserved under the sleeper to fix the clamping plate and press the rail. A sleeper needs 4 sets of bolts, 4 clamping plates and 2 rubber cushion plates. This sleeper is easy to maintain and can be reused.
1.Normal sleepers
Width 220mm; thickness 160mm; length 2500mm;
2.Turnout sleepers (Normal)
Width 220mm; thickness 160mm; length 2600 ~ 4850mm, with 150mm carry a total of 16 lengths;
3.Turnout sleepers (Standard)
Width 240mm; thickness 160mm; length 2600 ~ 4800mm, with 200mm carry a total of 12 lengths;
4.Bridge sleepers
Width 220mm; thickness 240,260,280,300 mm; length 3000mm.

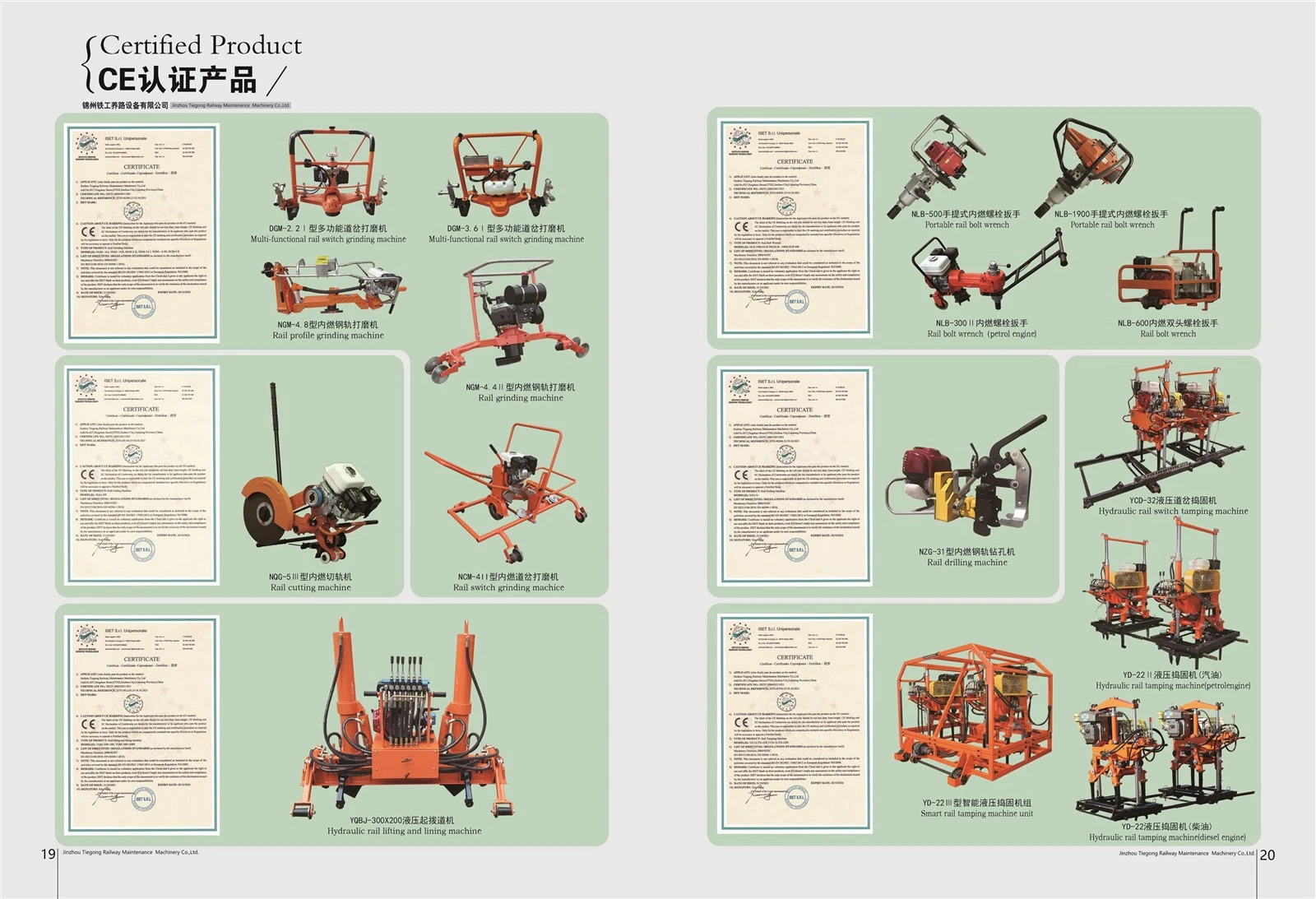

CE certificate:
