Rail Bender

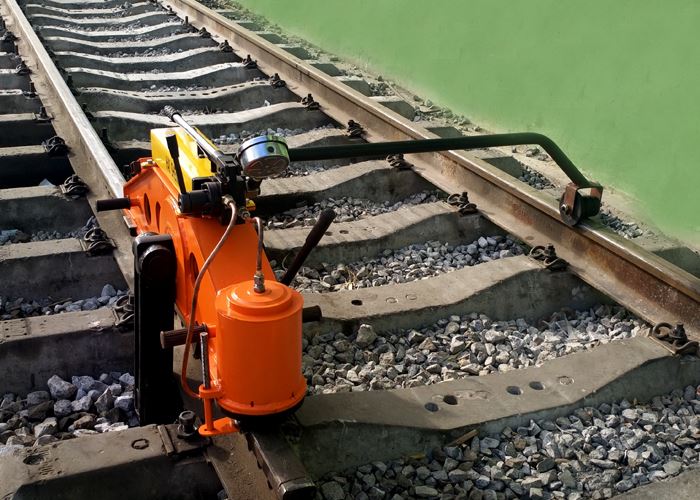

YZG-550 double hook rail bender is the handle hydraulic device special used for 43-75kg/m rail or switch horizonal bending operation.
- Product Introduction
rail bender

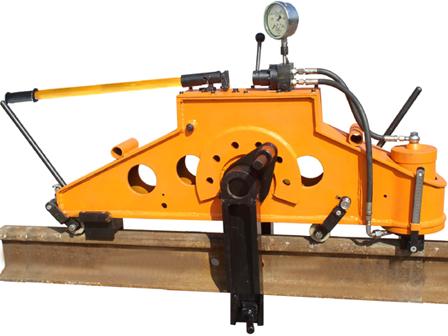

YZG-550 double hook rail bender is the handle hydraulic device special used for 43-75kg/m rail or switch horizonal bending operation.
It welded by special steel,has features of high bending force,stable working capacity,compact structure ,light weight and taking apart easily.
This machine has the advantages of simple operation, reliable performance, straightening (or bending) rail effect is ideal, wide range of applications. Especially for 43kg / m, 50kg / m, 60kg / m three kinds of heavy rail, the application is particularly convenient. It is a new type of manual hydraulic equipment essential to the mechanisation of road maintenance.
|
Type |
Parameter |
|
YZG-550 |
1. Rated straightening force: 550kN 2. System rated working pressure: 57MPa 3. Piston working stroke: 120mm 4. No-load efficiency: 1.5mm /time 5. Main beam weight: 75kg, Gull beam weight: 25.5kg Pump weight: 14kg, Other accessories weight: 9.5kg 6. Overall size: 1150 × 700 × 400mm |
|

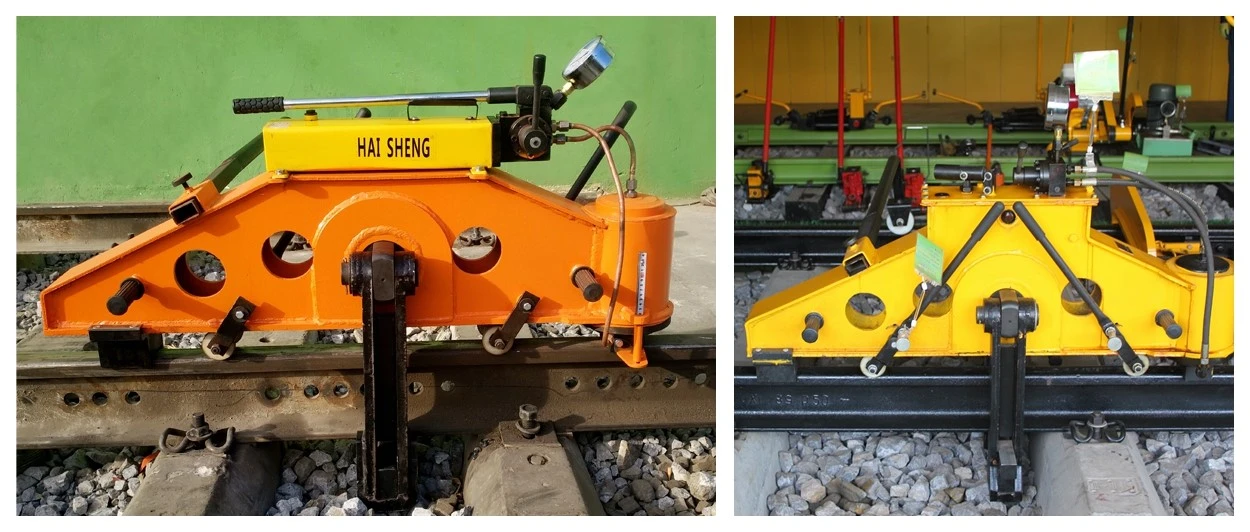

YPG-1000 |
1. Max flattening force: 1100kN 2. Rated flattening force: 1000kN 3. Max working pressure: 52MPa 4. No-load efficiency: 0.56 5. Adjust the fulcrum (top block) range: ±100mm 6. Max operating force: 436kN 7. Machine weight: about 190kg 8. Overall size: 1200 × 300 × 660mm |

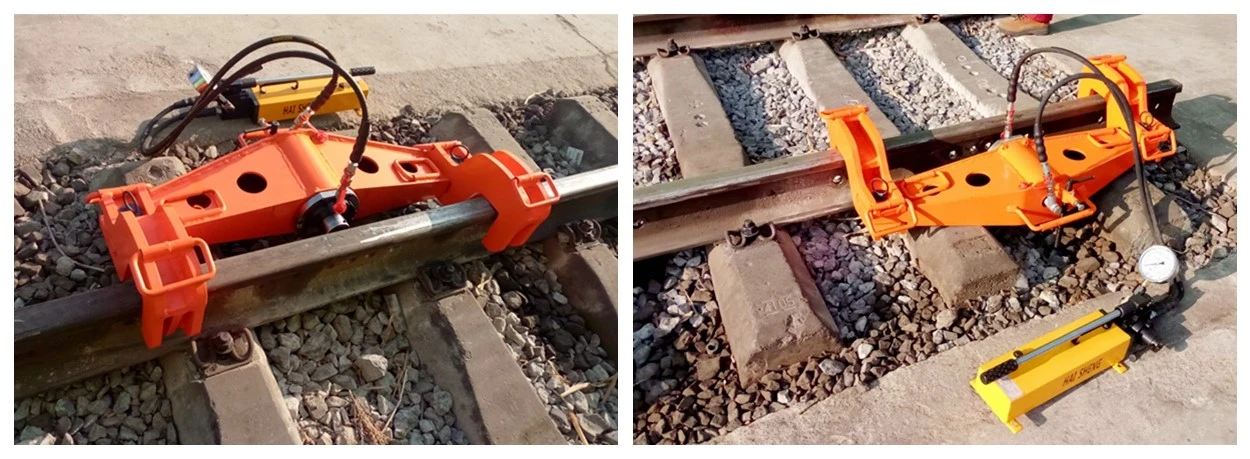

YPG-1000:

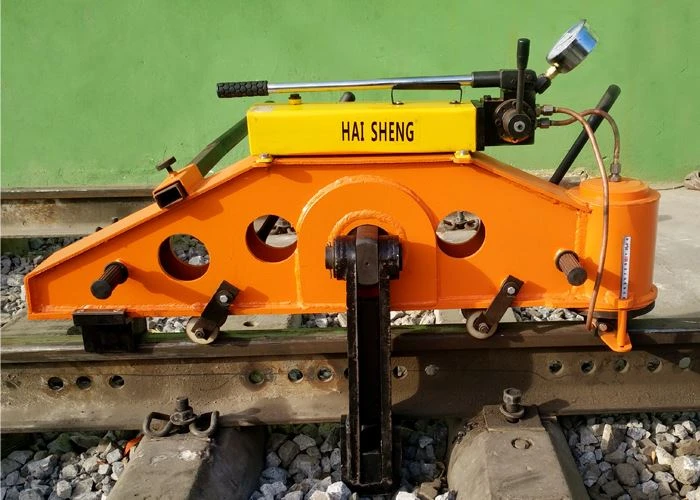

YZG-550:
Maintenance and care
1, in the operation, must keep the cylinder and piston rod clean.
2, add the hydraulic oil should be filtered, the hydraulic oil should be kept clean, no dirt and water mixed in. Generally, it should be replaced once in three months, and should be replenished at any time if it is found that the oil volume of the tank is too low.
3, hydraulic oil is too dirty when you need to clean the tank and the entire hydraulic system, cleaning is not allowed to use cotton gauze to wipe the tank and hydraulic parts with surface.
4, not allowed to be stored in the open air or wet premises.
5, seals under normal circumstances work regularly replaced once. To ensure the reliability of the machine.
International cooperation
CE certificate
Packing List
|
Product Name |
Double-Hook rail bending machine |
Model |
YZG-550 |
|
|
Ex-factory Date |
Inspector |
|
||
|
No. |
Accessories |
Q'ty |
||
|
1 |
Manual |
1pc |
||
|
2 |
Certificate |
1pc |
||
|
3 |
Bend beam |
1pc |
||
|
4 |
Hook beam |
2pcs |
||
|
5 |
Pin |
2pcs |
||
|
6 |
Hand pump |
1set (with high pressure hose) |
||
