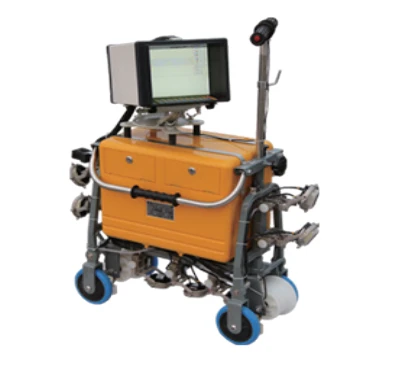

Rail Ultrasonic Flaw Detector

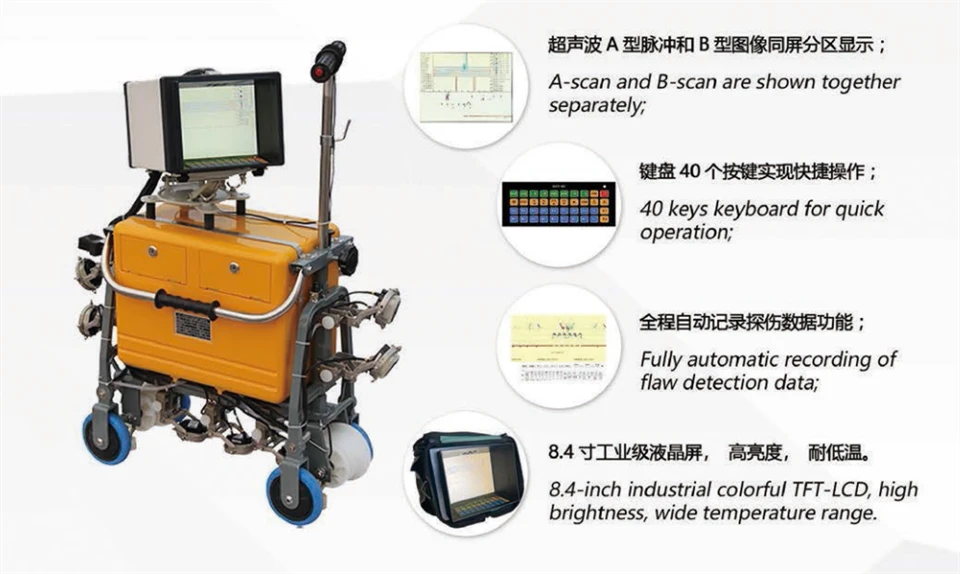

1. Simple operation, start and stop instantly; 2. Compact size and light weight, allowing two people (one person if necessary) to quickly enter and exit the track; 3. Low track exclusivity requirements, no need to pre-register for a window, allowing for more flexible schedules; 4. Wide rail head inspection range, equipped with four angled probes to expand the lateral inspection range of the rail head; 5. Professional data acquisition system, with inspection accuracy up to 3mm; 6. Ultrasonic A-type pulse and B-type images displayed on the same screen in separate sections; 7. Automatic recording of flaw detection data throughout the entire process; 8. Supporting computer playback software for continuous playback and analysis of flaw detection data; 9. Rainproof and sun-shading structure, with a large, high-brightness display for clear visibility in strong sunlight and low temperatures.

Send Inquiry

Product Introduction

Technical Parameters:

1.Dimensions: 650*230*800mm
2.Weight: 28kg
3.Detection Channels: 9
4.Number of Collaborators: 2
5.Operation Mode: Manual Push and Stop
6.Operating Speed: 5km/h and below
7.Detection Range: 0-200mm±5mm (43kg/m and 50kg/m rails)
0-250mm±5mm (60kg/m and 75kg/m rails)
8.Positioning: Odometer, odometer error 5m/km
9.Probe Operating Frequency: 2MHz
10.Couplant Capacity: 20L
11.Repetitive Detection Frequency: 400Hz (single channel)
12.Operating Voltage: 21.6V
13.Rated Power Consumption: ≤8W
14Detection Sensitivity Margin: Complies with TB/T 2340-2012
